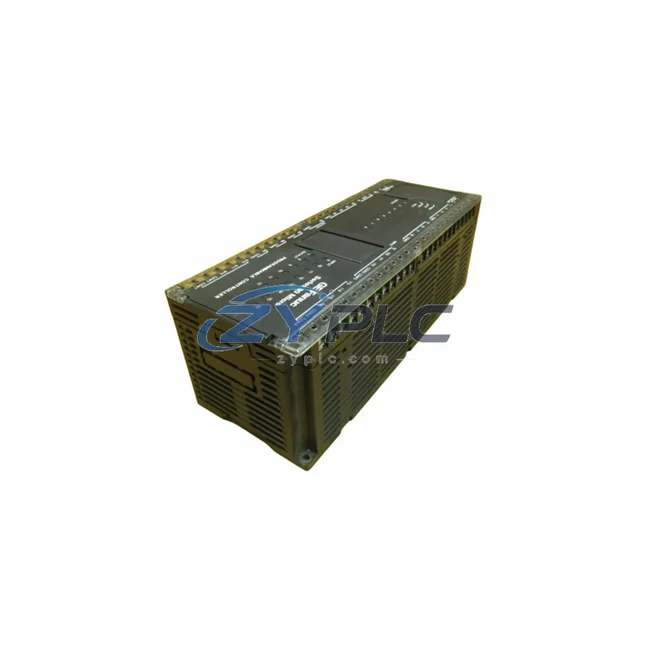

GE IC693UDR005EP1 Micro PLC Controller for IC693

GE IC693UDR005EP1 Micro PLC Controller for IC693: Control System and Upstream–Downstream Coordination

The GE IC693UDR005EP1 is a compact, relay-output micro PLC controller engineered for seamless integration within the GE Series 90-30 and IC693 control system architecture. Rather than functioning as a standalone device, the IC693UDR005EP1 is designed to occupy a defined role within a layered automation hierarchy — coordinating signal flow between field-level I/O devices, communication networks, power distribution modules, and supervisory control systems. Its architecture-ready design makes it a reliable choice for engineers building scalable, maintainable, and redundancy-capable industrial control systems across manufacturing, power distribution, water treatment, and process industries.

Product Specification Table

System Compatibility Notes

The IC693UDR005EP1 achieves its full operational value when integrated within a complete IC693 control architecture. At the control layer, it works in coordination with higher-capacity CPU modules such as the IC693CPU364 and IC693CPU374, which handle more complex logic execution and multi-rack coordination. In distributed or expanded configurations, the IC693UDR005EP1 can serve as a local controller node, offloading discrete control tasks from the main CPU and reducing scan-cycle latency across the system.

At the I/O layer, the controller interfaces directly with GE IC693 discrete and analog I/O modules. Typical configurations include the IC693MDL740 (relay output module) for high-current switching applications and the IC693MDL655 (discrete input module) for field signal acquisition. These modules mount within the IC693CHS391 expansion chassis, allowing engineers to scale the I/O footprint without redesigning the control architecture. The IC693APU305 analog processing unit can be added to the same rack for mixed-signal applications requiring both discrete relay control and analog feedback loops.

At the network and communication layer, the IC693BEM331 Bus Expansion Module enables multi-rack communication, while the IC693CMM321 Communications Module provides serial and network connectivity to SCADA systems, HMI panels, and upstream supervisory controllers. This communication infrastructure ensures that the IC693UDR005EP1 remains a fully integrated node within the plant-wide data architecture, supporting real-time status reporting, remote diagnostics, and coordinated control sequences.

Power integrity is maintained through the IC693PWR330 power supply module, which provides regulated DC power to the controller and I/O modules within the same rack. In redundancy-critical applications, dual power supply configurations using IC693PWR321 units can be implemented to eliminate single points of failure at the power layer. Terminal modules such as the IC693ACC300 wiring accessories further simplify field wiring and reduce installation time during commissioning.

At the human-machine interface layer, the IC693PCM311 PC Interface Module allows direct connection to engineering workstations running GE’s Proficy Machine Edition software, enabling ladder logic programming, online monitoring, and firmware management without disrupting live production. This integration supports efficient engineering workflows from initial commissioning through long-term maintenance cycles.

Industrial Application Notes

The IC693UDR005EP1 is deployed across a wide range of industrial sectors where compact, reliable relay-output control is required within a structured automation hierarchy.

In discrete manufacturing environments — including automotive assembly, packaging lines, and material handling systems — the IC693UDR005EP1 manages conveyor interlocks, actuator sequencing, and safety relay logic. Its relay output configuration is particularly well-suited for direct motor starter control and solenoid valve switching without intermediate relay panels.

In power distribution and electrical substation applications, the controller handles protection relay coordination, breaker status monitoring, and alarm annunciation within SCADA-integrated control panels. Its compatibility with IC693 communication modules ensures seamless data exchange with upstream maintenance planning systems.

In water and wastewater treatment facilities, the IC693UDR005EP1 controls pump sequencing, valve actuation, and level monitoring across distributed pump stations. Its compact form factor and DIN rail mounting make it ideal for installation in field control panels with limited enclosure space.

In petrochemical and process industries, the controller supports batch process sequencing, interlock logic, and emergency shutdown (ESD) pre-logic within larger DCS-integrated architectures. Its warranty terms confirmed during quotation and verified operational status make it a dependable choice for facilities requiring documented component traceability.

In mining and metallurgical applications, the IC693UDR005EP1 manages conveyor drive interlocks, crusher sequencing, and dust suppression system control — environments where relay output durability and system-level system integration with upstream SCADA platforms are essential operational requirements.

Product Compatibility FAQ

Q1: Is the IC693UDR005EP1 compatible with existing IC693 Series 90-30 racks and expansion chassis?
Yes. The IC693UDR005EP1 is fully compatible with the IC693CHS391 and IC693CHS397 expansion chassis. It mounts directly into standard IC693 rack slots and communicates with other modules — including IC693MDL740 output modules, IC693BEM331 bus expansion modules, and IC693PWR330 power supplies — without requiring additional adapters or interface hardware. Engineers integrating this controller into an existing IC693 architecture can expect plug-compatible installation with standard GE Fanuc tooling and Proficy Machine Edition programming software.

Q2: How does the IC693UDR005EP1 support long-term maintenance and spare parts management in multi-site installations?
The IC693UDR005EP1 is a standardized IC693 platform component, meaning it shares a common programming environment, wiring convention, and rack architecture with other Series 90-30 controllers. This standardization significantly reduces the spare parts inventory burden for maintenance teams managing multiple production lines or plant sites. Its warranty terms confirmed during quotation provides documented assurance of operational integrity from the point of delivery, supporting both planned maintenance schedules and unplanned replacement scenarios. ZYPLC maintains availability subject to RFQ confirmation of IC693UDR005EP1 units, enabling rapid dispatch to minimize unplanned downtime.

Q3: Can the IC693UDR005EP1 be integrated into a redundant control architecture, and what commissioning steps are required?
While the IC693UDR005EP1 itself is a single-controller unit, it can be deployed within a redundancy-capable architecture by pairing it with a primary IC693CPU364 or IC693CPU374 controller in a hot-standby or warm-standby configuration managed at the system level. Commissioning requires configuration via Proficy Machine Edition, including I/O mapping, communication parameter setup for IC693CMM321 or IC693BEM331 modules, and relay output verification against field wiring documentation. ZYPLC’s technical team provides pre-shipment testing and configuration support to reduce on-site commissioning time and ensure system integration with the target control system architecture.
