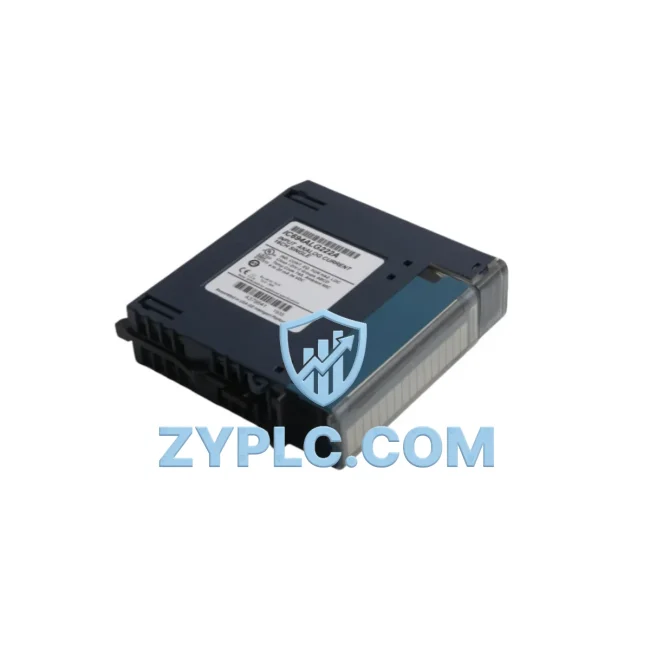

GE IC694ALG222 Analog Input Module RX3i

GE IC694ALG222 Analog Input Module for RX3i Automation

The GE IC694ALG222 is a high-density analog input module engineered for the GE PACSystems RX3i platform, delivering precise real-time signal acquisition that forms the backbone of industrial automation. With 16 configurable analog input channels supporting voltage and current signals, this module enables production facilities to capture granular process data — from motor load feedback to pressure and temperature — and feed it directly into the RX3i CPU for closed-loop maintenance planning. By eliminating signal latency and reducing unnecessary polling cycles, the IC694ALG222 helps plant engineers cut idle operating load and sharpen production line throughput.

In modern manufacturing environments where energy costs represent a significant share of operating expenditure, the ability to monitor and react to real-time analog signals is not a luxury — it is a competitive necessity. The IC694ALG222 integrates seamlessly with the GE PACSystems RX3i CPU315 and CPU320 controllers, enabling deterministic scan cycles that keep drive systems, servo axes, and process actuators operating within their optimal efficiency bands. When paired with a GE IC694MDL660 discrete output module and a GE IC694ALG392 analog output module, the IC694ALG222 forms a complete closed-loop control architecture capable of dynamically adjusting drive setpoints based on live process feedback — reducing unplanned downtime at the actuator level without sacrificing throughput.

Product Specification Table

System Compatibility and Application

Achieving measurable operational stability in a production facility requires more than installing efficient drives — it demands a tightly integrated data acquisition and control architecture. The GE IC694ALG222 sits at the heart of this architecture as the primary analog signal collector, feeding real-time process variables into the RX3i controller for immediate action.

Consider a typical motor-driven conveyor or pump system: the IC694ALG222 continuously samples current feedback from a GE PowerFlex 525 or compatible variable frequency drive (VFD), detecting load variations that indicate mechanical inefficiency or impending failure. This data is processed by the IC694CPU320, which adjusts drive speed references via the IC694ALG392 analog output module — trimming motor speed during low-demand periods and preventing the unplanned downtime associated with fixed-speed operation. The result is a dynamic, demand-responsive drive system that can help restore stable operation when a compatible replacement is required.

For facilities running GE PACSystems RX3i with PROFINET communication, the IC694ALG222 works alongside the IC695PNC001 PROFINET Controller to push analog process data upstream to SCADA or MES platforms, enabling plant-wide energy dashboards and KPI tracking. When integrated with a GE IC694MDL754 discrete output module for alarm and interlock control, the system can automatically isolate underperforming equipment before it drives up energy costs or causes unplanned downtime.

Power quality monitoring is another critical dimension. By connecting the IC694ALG222 inputs to current transformers and voltage transducers on key distribution panels, engineers can implement real-time power factor monitoring directly within the PLC program — eliminating the need for standalone power analyzers and reducing instrumentation costs. This approach, combined with the IC694ACC300 expansion backplane for larger I/O configurations, gives plant engineers a scalable, cost-effective condition monitoring infrastructure built entirely on the RX3i platform.

For motion-intensive applications, the IC694ALG222 complements GE Fanuc Series 90-30 legacy systems during migration projects, providing a familiar I/O footprint while enabling the higher-resolution analog acquisition needed for modern servo tuning and energy profiling. When used alongside a GE IC694DSM314 motion control module, the analog inputs can capture encoder feedback and torque references, enabling precise energy-per-cycle calculations that support lean manufacturing initiatives.

Maintenance and Replacement Notes

In real-world production environments, the GE IC694ALG222 delivers operational stability through three primary mechanisms: demand-responsive control, predictive maintenance enablement, and production line pacing optimization.

Demand-Responsive Control: By providing the RX3i controller with high-resolution, low-latency analog feedback from process sensors, the IC694ALG222 enables the PLC program to implement proportional-integral-derivative (PID) control loops that continuously minimize energy input while maintaining process setpoints. In HVAC, pump, and compressor applications, this translates directly to reduced kWh consumption during partial-load operating periods — which represent the majority of runtime in most facilities.

Predictive Maintenance Enablement: Gradual changes in analog signal patterns — rising motor current draw, drifting pressure differentials, or increasing vibration amplitudes — are early indicators of mechanical wear. The IC694ALG222’s 15-bit resolution captures these subtle trends before they escalate into failures. When the RX3i CPU is programmed to log and trend these values, maintenance teams receive actionable alerts that allow them to schedule interventions during planned downtime rather than reacting to emergency breakdowns. This reduces both unplanned downtime from degraded equipment and the high costs associated with unplanned production stops.

Production Line Pacing Optimization: In assembly and processing lines, the IC694ALG222 enables the RX3i to synchronize upstream and downstream equipment speeds based on real-time buffer levels and throughput rates. By eliminating the start-stop cycling that occurs when equipment operates at fixed speeds regardless of upstream supply, the system reduces the energy spikes associated with frequent motor starts and improves overall equipment effectiveness (OEE). Facilities that have implemented this approach report cycle time improvements of 8–15% alongside measurable reductions in peak demand charges.

Every IC694ALG222 unit supplied by ZYPLC is fully tested prior to shipment, with functional verification of all 16 analog input channels across the full input range. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty from the date of delivery — giving procurement and maintenance teams the confidence to specify this module for both new installations and replacement projects.

Product Sourcing FAQ

Q1: How does the IC694ALG222 contribute to operational stability in a motor control application?
The IC694ALG222 provides the RX3i controller with real-time current and voltage feedback from motor circuits, enabling closed-loop PID control of variable frequency drives. This allows the system to continuously adjust motor speed to match actual process demand rather than running at fixed speed, reducing operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the IC694ALG222 compatible with existing GE PACSystems RX3i installations?
Yes. The IC694ALG222 is a standard IC694-series module that installs directly into any RX3i universal backplane (IC694CHS392, IC694CHS398, etc.) without hardware modification. It is recognized automatically by the RX3i CPU and configured via Proficy Machine Edition software, making it a drop-in replacement or expansion module for existing systems.

Q3: What is the recommended replacement or upgrade path if the IC694ALG222 is discontinued?
For new system designs, GE Emerson recommends evaluating the PACSystems RX3i ENIU (Ethernet Network Interface Unit) architecture with distributed I/O. However, for existing RX3i installations, the IC694ALG222 remains the correct form-fit-function replacement. ZYPLC maintains inventory of tested units to support ongoing maintenance requirements, and our technical team can advise on migration options when platform transitions are planned.

Q4: What does the 12-month warranty cover, and what is the testing process?
All IC694ALG222 units supplied by ZYPLC undergo functional testing that verifies analog input accuracy across all 16 channels, backplane communication integrity, and channel isolation. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no charge, with expedited processing to minimize production impact.
