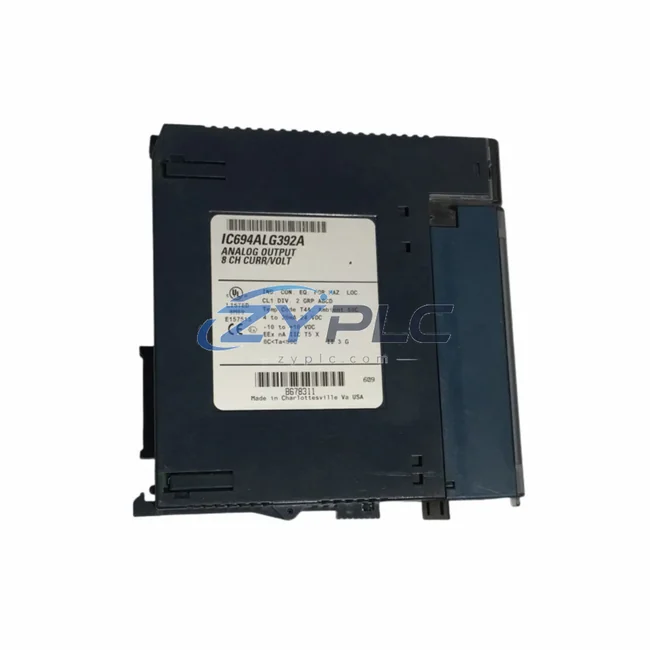

GE IC694ALG392A Analog Output for Series 90-30

GE IC694ALG392A Analog Output for Series 90-30

The GE IC694ALG392A is a high-performance analog output module engineered for seamless integration within the GE Series 90-30 programmable logic controller platform. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered industrial control architecture — coordinating signal flow between the CPU layer, I/O subsystem, field instrumentation, and supervisory control systems. In distributed manufacturing environments, process plants, and utility infrastructure, the IC694ALG392A delivers the analog signal precision and system-level compatibility required for sustained operational reliability.

Within a complete Series 90-30 control system, the IC694ALG392A occupies the analog output position in the I/O layer, converting digital process values from the CPU into calibrated 4–20 mA or 0–10 V DC signals that drive field actuators, control valves, variable frequency drives, and proportional control elements. Its role is not isolated — it functions in direct coordination with upstream CPU modules, backplane communication infrastructure, and downstream field devices to maintain closed-loop process integrity across the entire automation hierarchy.

Product Specification Table

System Compatibility Notes

The IC694ALG392A achieves its full value when deployed within a coherently designed Series 90-30 control system. At the processing core, the IC693CPU374 or IC694CPU310 CPU module executes the control logic and generates the digital output values that the IC694ALG392A converts to analog field signals. These CPU modules communicate with all I/O modules — including the IC694ALG392A — through the Series 90-30 backplane, mounted on baseplates such as the IC694CHS392 (5-slot) or IC694CHS398 (10-slot), which define the physical and electrical boundaries of each rack segment.

System power integrity is maintained by the IC694PWR321 or IC694PWR330 power supply modules, which provide regulated DC power to all modules on the baseplate, including the IC694ALG392A. Stable power delivery is essential for analog output accuracy — voltage fluctuations at the backplane level directly affect signal calibration and loop stability. Engineers specifying this module should always verify power budget calculations across all installed I/O modules to prevent marginal supply conditions.

On the input side, the IC694ALG220 analog input module works in tandem with the IC694ALG392A to complete closed-loop control architectures — the input module reads process variables from field transmitters while the output module drives the corresponding control elements. For discrete I/O expansion, the IC694MDL340 (DC input) and IC694MDL740 (DC output) modules extend the system’s digital I/O capacity without interfering with analog channel performance.

Network connectivity and remote I/O expansion are handled by communication modules such as the IC694CMM321 Ethernet interface or the IC693CMM302 serial communications module, enabling the Series 90-30 system to integrate with SCADA platforms, historian servers, and higher-level MES systems via Modbus TCP, SRTP, or serial protocols. In larger installations, the IC694BEM331 bus expansion module allows the control system to span multiple racks while maintaining synchronized I/O scanning across all analog and digital modules.

For operator interface, the Series 90-30 architecture typically pairs with QuickPanel HMI terminals or third-party SCADA workstations connected via Ethernet, providing real-time visualization of analog output values, loop setpoints, and alarm states. This complete architecture — from CPU through backplane, power supply, analog I/O, communications, and HMI — represents the system integration environment in which the IC694ALG392A delivers its designed performance.

Industrial Application Notes

The IC694ALG392A is deployed across a broad range of industrial sectors where precise analog output control is essential to process quality and safety. In continuous process manufacturing — including chemical blending, pharmaceutical batch processing, and food and beverage production — the module drives proportional control valves and dosing pumps with the signal resolution required to maintain tight process tolerances. Its 12-bit resolution ensures that small setpoint adjustments translate into accurate field-level responses, reducing product variability and waste.

In power generation and electrical utilities, the IC694ALG392A is used to control excitation systems, governor actuators, and transformer tap changers within substation automation architectures. The module’s channel isolation and accuracy specifications meet the demands of high-reliability electrical infrastructure, where signal integrity directly affects grid stability. Paired with redundant CPU configurations and UPS-backed power supplies, the Series 90-30 system provides the fault tolerance required for utility-grade applications.

In oil and gas processing and petrochemical facilities, the module controls pressure regulators, flow control valves, and compressor inlet guide vanes within hazardous area control systems. Its compatibility with intrinsically safe barriers and galvanic isolators allows deployment in Zone 2 classified environments when properly engineered. Water and wastewater treatment plants rely on the IC694ALG392A to modulate pump speeds, chemical dosing rates, and aeration blower outputs — applications where consistent analog output performance directly affects effluent quality and regulatory compliance.

In mining, metals processing, and heavy industry, the module is integrated into conveyor speed control systems, crusher feed rate controllers, and furnace temperature regulation loops. Its robust operating temperature range and industrial-grade construction make it suitable for the demanding thermal and vibration environments found in these sectors. Packaging and material handling lines use the IC694ALG392A to synchronize conveyor speeds, control filling volumes, and regulate tension in web handling systems — applications where analog output stability directly affects throughput and product quality.

Product Compatibility FAQ

Q1: Is the IC694ALG392A compatible with both IC693 and IC694 Series 90-30 baseplates?
The IC694ALG392A is designed for the IC694-series baseplates (IC694CHS392, IC694CHS398) and is also backward-compatible with IC693-series racks in most configurations. However, engineers should verify baseplate revision levels and power supply compatibility before mixing IC693 and IC694 modules in the same rack. ZYPLC’s technical team can assist with compatibility verification for specific system configurations, and all supplied modules are covered under the warranty terms confirmed during quotation regardless of the baseplate generation used.

Q2: How does the IC694ALG392A maintain signal accuracy in systems with mixed analog and digital I/O modules?
The IC694ALG392A uses on-board digital-to-analog conversion with channel-level isolation to minimize cross-talk from adjacent digital output modules. In mixed I/O rack configurations, it is recommended to position analog modules away from high-current digital output modules where possible, and to ensure the IC694PWR321 or IC694PWR330 power supply is not operating near its maximum rated load. Proper grounding of the analog output field wiring — using shielded twisted-pair cables with shield grounded at one end — is essential for maintaining signal integrity in electrically noisy industrial environments.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term system maintenance?
ZYPLC’s warranty terms confirmed during quotation covers the IC694ALG392A against manufacturing defects and functional failures under normal operating conditions. Each module is tested prior to shipment to verify output accuracy, channel isolation, and backplane communication integrity. For long-term maintenance planning, ZYPLC maintains inventory of Series 90-30 analog I/O modules to support both emergency replacement and scheduled lifecycle refresh programs. Our engineering team provides pre-sales compatibility consultation and post-sales technical support to ensure the IC694ALG392A integrates correctly into your existing control architecture.
