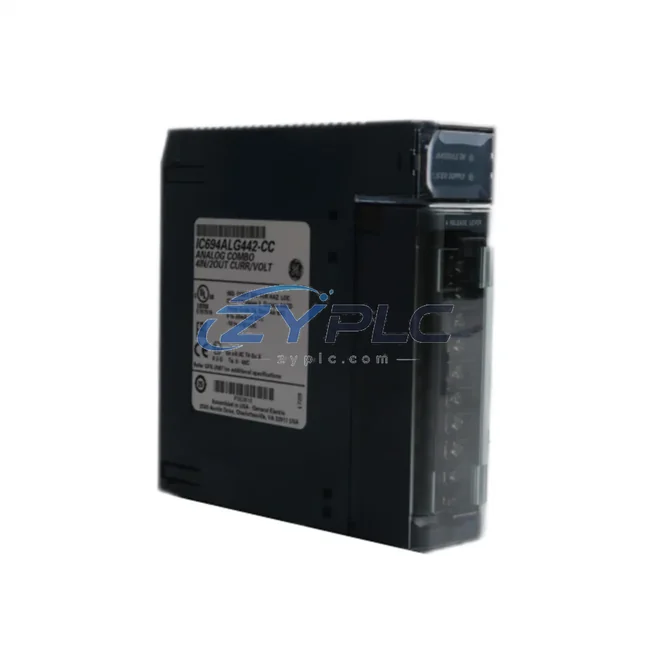

GE IC694ALG442 PLC Analog I/O Module for Series 90-30 Systems

GE IC694ALG442: Industrial Data Link for Smart Factory Connectivity in Series 90-30 Systems

The GE IC694ALG442 Analog Combination Module is a high-performance I/O interface engineered for seamless integration within GE Series 90-30 PLC architectures. Designed to bridge the gap between field-level instrumentation and upper-layer control systems, the IC694ALG442 delivers reliable analog signal acquisition and output across multi-channel configurations, making it an essential node in modern industrial data communication networks. Whether deployed in discrete manufacturing, process control, or hybrid automation environments, this module ensures that real-time data flows uninterrupted from sensors and actuators through to SCADA platforms and MES systems.

In today’s smart factory landscape, the ability to collect, convert, and transmit analog signals with precision is foundational to operational transparency. The IC694ALG442 supports this mission by providing stable, low-latency analog I/O performance that integrates directly into the GE Series 90-30 backplane, enabling engineers to build scalable, high-density control architectures without sacrificing signal fidelity or network reliability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory deployment, the GE IC694ALG442 sits at the heart of the analog data acquisition layer. Field instruments — including pressure transmitters, temperature sensors, flow meters, and level transducers — feed 4–20mA or 0–10V signals directly into the IC694ALG442’s eight input channels. These signals are digitized at 12-bit resolution and passed across the Series 90-30 backplane to the CPU module, such as the IC693CPU374 or IC694CPU310, where ladder logic and function block programs execute real-time control decisions.

For network-level communication, the IC694ALG442 works in conjunction with the IC694BEM331 Ethernet Interface Module, which bridges the Series 90-30 rack to an industrial Ethernet backbone running EtherNet/IP or GE SRTP. This allows SCADA platforms — including iFIX, Wonderware, and Ignition — to poll live analog values from the IC694ALG442 at configurable scan rates, enabling real-time process visualization and alarm management across the plant floor.

In remote I/O architectures, the IC694ALG442 can be paired with the IC694BEM321 Remote I/O Scanner to extend analog acquisition points beyond the main control panel, reducing field wiring costs while maintaining signal integrity. For applications requiring protocol conversion — such as bridging legacy Modbus RTU field devices to a modern EtherNet/IP network — a dedicated gateway module like the IC693CMM311 Communications Co-Processor can be integrated into the same rack, enabling transparent data exchange between heterogeneous device layers.

On the output side, the IC694ALG442’s four analog output channels drive control elements such as variable frequency drives (VFDs), proportional control valves, and positioners. In a typical motor control application, the PLC CPU calculates a speed reference value, which the IC694ALG442 converts to a 4–20mA signal delivered to a GE AF-600FP series drive, closing the control loop with precision. HMI panels — such as those running on GE QuickPanel+ or third-party Weintek and Siemens TP series terminals — display real-time analog trends sourced from the IC694ALG442 data registers, giving operators immediate visibility into process conditions.

Edge computing nodes and industrial IoT gateways can also subscribe to IC694ALG442 data via the Ethernet module, forwarding time-stamped analog records to cloud-based MES or ERP platforms for production analytics, predictive maintenance modeling, and energy consumption tracking. This end-to-end data chain — from sensor signal to enterprise dashboard — exemplifies the IC694ALG442’s role as a critical connectivity node in Industry 4.0 architectures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, PLCs, and upper-layer systems operate in disconnected silos, preventing plant managers from achieving true production transparency. The GE IC694ALG442 directly addresses this challenge by providing a standardized, high-resolution analog interface that integrates seamlessly into both existing Series 90-30 infrastructure and modern networked control architectures.

In facilities where multiple communication protocols coexist — Modbus RTU on legacy field devices, EtherNet/IP on newer PLCs, and OPC-UA on SCADA servers — the IC694ALG442 serves as the analog acquisition front-end, while protocol gateway modules handle the translation layer. This approach eliminates the need for costly field-level rewiring or wholesale system replacement, allowing manufacturers to modernize incrementally while preserving their existing investments in GE automation hardware.

Remote monitoring and diagnostics are equally critical in distributed plant environments. With the IC694ALG442 connected to the network via the IC694BEM331 Ethernet module, maintenance engineers can remotely query channel-level diagnostic data — including out-of-range alarms, wire-break detection, and calibration status — without requiring physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) and supports proactive maintenance strategies that minimize unplanned downtime.

For production line transparency, the IC694ALG442 enables continuous data logging of analog process variables, which can be trended in SCADA historian databases and analyzed for process optimization. As production demands evolve, the modular architecture of the Series 90-30 platform allows additional IC694ALG442 modules to be added to the rack, scaling analog I/O capacity without disrupting existing control logic or network configurations.

Every IC694ALG442 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, signal range compliance, and backplane communication integrity. All units are covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid fulfillment via DHL or FedEx international express to support urgent maintenance and project timelines worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC694ALG442 support for SCADA integration?
The IC694ALG442 itself communicates over the Series 90-30 backplane bus. For network-level SCADA integration, it is used in conjunction with an Ethernet interface module such as the IC694BEM331, which supports GE SRTP and EtherNet/IP protocols. This allows SCADA systems including iFIX, Ignition, and Wonderware to access real-time analog data from the IC694ALG442 over standard industrial Ethernet networks.

Q2: Can the IC694ALG442 be used in systems with mixed Modbus RTU and EtherNet/IP devices?
Yes. In mixed-protocol environments, the IC694ALG442 handles analog signal acquisition at the field level, while a communications co-processor such as the IC693CMM311 or a dedicated protocol gateway manages Modbus RTU to EtherNet/IP conversion within the same Series 90-30 rack. This architecture allows seamless data exchange between legacy field instruments and modern networked control systems without requiring field-level protocol changes.

Q3: How does the IC694ALG442 ensure network stability and signal integrity in high-noise industrial environments?
The IC694ALG442 is designed to GE’s industrial-grade specifications, incorporating hardware filtering and shielded backplane communication to minimize the impact of electromagnetic interference (EMI) common in motor-driven and high-current industrial environments. Its 12-bit resolution and configurable input ranges (voltage and current) allow engineers to optimize signal conditioning for specific sensor types, ensuring stable and accurate data transmission even in electrically noisy plant conditions.

Q4: What is the warranty coverage and how is pre-shipment testing conducted for the IC694ALG442?
All IC694ALG442 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional testing that verifies analog input and output channel accuracy, signal range compliance across all configured modes, and backplane communication integrity. Test results are available upon request. Units are shipped via DHL or FedEx international express with full tracking, supporting urgent project and maintenance requirements globally.
