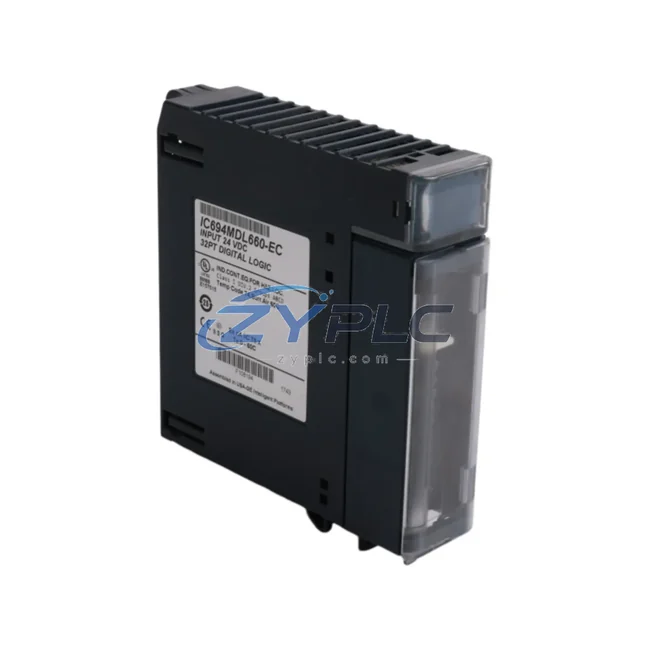

In a fully integrated industrial control architecture, every module must earn its place not as a standalone component, but as a functional node within a layered automation hierarchy. The GE IC694MDL660 DC Voltage Input Module is precisely that — a system-compatible signal acquisition device engineered for seamless system integration within GE’s PACSystems RX3i platform. From the field instrument layer through the I/O bus, across the backplane, and into the CPU’s data table, the IC694MDL660 delivers reliable, high-resolution DC voltage signal conditioning that sustains the integrity of the entire control loop.
Understanding the IC694MDL660 requires understanding the architecture it inhabits. The PACSystems RX3i system is built around a universal backplane — typically the IC694CHS392 or IC694CHS397 — that accommodates mixed-module configurations spanning CPU, power supply, analog I/O, digital I/O, and communications modules within a single rack. The IC694MDL660 occupies one of these universal slots, interfacing directly with the RX3i high-speed backplane bus to deliver analog voltage readings to the CPU with minimal latency and maximum signal fidelity.
Product Specification Table
| Parameter |
Specification |
| System Role |
Analog DC Voltage Input Module — I/O Layer |
| Compatible Platform |
GE PACSystems RX3i |
| Input Channels |
16 Channels (DC Voltage) |
| Input Voltage Range |
0–10 VDC / ±10 VDC (configurable per channel) |
| Resolution |
15-bit + sign |
| Input Impedance |
≥ 10 MΩ |
| Isolation |
Channel-to-backplane optical isolation |
| Backplane Compatibility |
IC694CHS392, IC694CHS397 Universal Backplane |
| Communication Interface |
RX3i High-Speed Backplane Bus |
| Operating Temperature |
0°C to 60°C |
| Relative Humidity |
5% to 95% non-condensing |
| Power Consumption |
Supplied via backplane (no external power required) |
| Installation |
DIN rail / panel-mount rack, hot-insertion capable |
| Certifications |
CE, UL, cUL |
| Country of Origin |
United States |
| Warranty |
warranty terms confirmed during quotation — functional and electrical integrity guaranteed |
System Compatibility Notes
The IC694MDL660 does not operate in isolation. Its value is realized through coordinated interaction with the surrounding system architecture. At the processing core, the IC694CPE330 or IC694CPE400 CPU module receives the digitized voltage data from the IC694MDL660 via the RX3i backplane, executing ladder logic, function block diagrams, or structured text programs that act on real-time field measurements. The CPU’s scan cycle directly governs how frequently the IC694MDL660’s channel data is refreshed, making CPU selection and task configuration critical to overall system responsiveness.
Power integrity is maintained by the IC694PWR321 or IC694PWR330 power supply modules, which provide regulated 5 VDC and 3.3 VDC backplane power to all installed modules including the IC694MDL660. Stable power delivery is non-negotiable in analog signal chains — even minor voltage fluctuations on the backplane can introduce noise into the ADC conversion process, degrading measurement accuracy. Pairing the IC694MDL660 with a high-quality RX3i power supply ensures the module operates within its specified accuracy envelope across the full operating temperature range.
On the communications side, the IC694CMM321 Communications Co-Processor or the IC695ETM001 Ethernet module enables the PACSystems RX3i rack to participate in plant-wide SCADA, DCS, or MES networks. Voltage data acquired by the IC694MDL660 can be mapped to Modbus TCP, SRTP, or OPC-UA data structures, making it accessible to supervisory systems such as iFIX, Wonderware, or Ignition SCADA platforms. This system integration capability transforms raw field voltage signals into actionable process variables visible across the entire automation hierarchy.
For applications requiring expanded I/O density, the IC694MDL660 coexists on the same backplane with digital input modules such as the IC694MDL645 (32-point 24 VDC input) and digital output modules such as the IC694MDL754 (32-point relay output), enabling mixed analog-digital I/O configurations within a single rack. Terminal block assemblies — including the IC694TBB032 and IC694TBC032 — provide the field wiring interface, ensuring clean, organized signal termination that simplifies commissioning and long-term maintenance.
In redundant architecture deployments, the IC694MDL660 can be installed in mirrored racks supported by the IC695RMX128 Redundancy Memory Xchange module, ensuring that analog input data remains continuously available even during a CPU or rack failover event. This redundancy capability is essential in critical process industries where loss of analog measurement — even momentarily — can trigger unsafe operating conditions or costly production shutdowns.
Industrial Application Notes
The IC694MDL660 finds application across a broad spectrum of industrial sectors where precise DC voltage measurement is integral to process control. In power generation and electrical substation automation, the module monitors DC bus voltages, battery bank states, and excitation system feedback signals, providing the CPU with the real-time data needed to maintain grid stability and equipment protection. Its high input impedance and optical isolation make it particularly well-suited for high-voltage measurement applications where ground loop elimination is critical.
In petrochemical and refinery environments, the IC694MDL660 acquires voltage signals from transmitters monitoring tank levels, flow rates, and pressure differentials across distillation columns and heat exchangers. The module’s 15-bit resolution ensures that small process deviations — which may indicate early-stage equipment degradation or process drift — are captured with sufficient fidelity for advanced process control algorithms running on the IC694CPE400 CPU.
Water and wastewater treatment facilities rely on the IC694MDL660 to monitor chlorination dosing systems, pump motor feedback signals, and effluent quality sensors. The module’s ability to handle both unipolar (0–10 VDC) and bipolar (±10 VDC) input ranges within the same rack — configured on a per-channel basis — provides the flexibility needed to interface with the diverse sensor ecosystem found in modern water treatment plants.
In mining and metals processing, the IC694MDL660 supports conveyor belt tension monitoring, crusher load feedback, and smelter temperature control loops. Its robust operating temperature range and vibration tolerance make it suitable for installation in control cabinets located in close proximity to heavy machinery. Packaging and food processing lines use the IC694MDL660 to monitor servo drive feedback voltages, web tension control signals, and fill-level sensor outputs, integrating seamlessly with motion control and vision inspection systems on the same PACSystems RX3i platform.
Product Compatibility FAQ
Q1: Is the IC694MDL660 compatible with both IC694CHS392 and IC694CHS397 backplanes, and can it share a rack with CPU and communications modules?
Yes. The IC694MDL660 is fully compatible with all standard PACSystems RX3i universal backplanes, including the 12-slot IC694CHS392 and the 16-slot IC694CHS397. It can occupy any universal slot and coexist in the same rack with CPU modules (IC694CPE330, IC694CPE400), power supplies (IC694PWR321), communications modules (IC695ETM001), and other analog or digital I/O modules. Slot assignment is configured via Proficy Machine Edition (PME) software, which automatically recognizes the IC694MDL660 and populates its channel configuration parameters.
Q2: How does the IC694MDL660 support system redundancy, and what happens to analog data during a failover event?
In a Hot Standby CPU Redundancy (HSB) configuration using the IC695RMX128 Redundancy Memory Xchange module, the IC694MDL660’s channel data is continuously synchronized between the primary and secondary CPU racks via the redundancy link. During a failover, the secondary CPU assumes control within one scan cycle, and analog input data from the IC694MDL660 remains available without interruption. This seamless transition is critical in process industries where analog measurement continuity is required to maintain safe operating conditions and prevent spurious alarms or shutdowns.
Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
Our warranty terms confirmed during quotation covers full functional and electrical performance of the IC694MDL660, including all 16 input channels, backplane communication integrity, and specified accuracy parameters. Units are tested under load prior to shipment using GE-compatible test fixtures. ZYPLC maintains dedicated inventory of IC694MDL660 and related PACSystems RX3i components — including IC694CPE330, IC694PWR321, IC694CHS392, and IC694MDL645 — to support both emergency replacement and planned maintenance programs. Our engineering team provides pre-sales architecture consultation and post-sales commissioning support to ensure the IC694MDL660 integrates correctly into your specific control system configuration.
