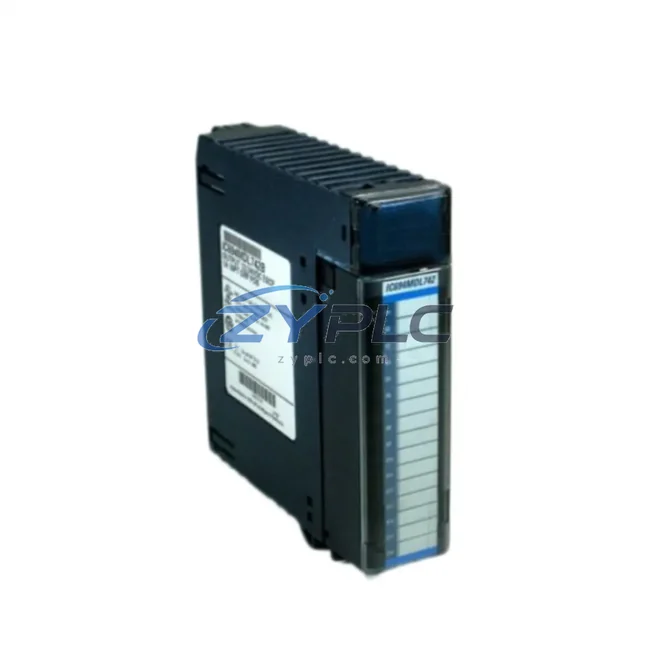

GE IC694MDL742 PLC Output Module: Precision Output Control for Series 90-30 Automation

The GE IC694MDL742 is a high-density discrete output module engineered for the GE Series 90-30 programmable logic controller platform. Designed to deliver reliable, low-latency switching across 16 output channels, this module plays a critical role in reducing unnecessary energy consumption at the field device level — where wasted switching cycles, oversized relay loads, and uncoordinated actuator timing silently inflate a facility’s power bill. By integrating the IC694MDL742 into a well-structured control architecture, plant engineers can achieve tighter output sequencing, eliminate redundant activation cycles, and extend the operational lifespan of connected field devices.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious production environment, the IC694MDL742 does not operate in isolation. It functions as the execution endpoint of a layered control and monitoring architecture. At the controller level, a GE IC694CPU310 or IC694CPU315 CPU module processes the logic and issues output commands with millisecond-level precision, ensuring that field devices such as solenoids, contactors, and indicator lamps are energized only when operationally required — not held on unnecessarily due to ladder logic inefficiencies.

On the input side, discrete feedback from field sensors arrives through companion modules such as the GE IC694MDL654 16-point DC input module, enabling the CPU to make real-time decisions that prevent redundant output activation. When analog process variables — such as motor speed references or pressure setpoints — need to be factored in, the GE IC694ALG220 analog input module feeds live process data into the control loop, allowing the output module to respond proportionally rather than in binary on/off bursts that waste energy.

For drive-level maintenance planning, the IC694MDL742 commonly interfaces with variable frequency drives such as the GE AF-600FP series or third-party inverters via relay or transistor output signals. These enable soft-start and speed-ramping commands that dramatically reduce inrush current during motor startup — one of the largest sources of unplanned downtime in discrete manufacturing. The output module’s fast switching response ensures that drive enable and direction signals are delivered without delay, keeping motor control loops tight and responsive.

Communication between the Series 90-30 rack and supervisory systems is typically handled through the GE IC693CMM321 Ethernet module or the IC693CMM311 serial communications module, both of which allow the IC694MDL742’s output states to be monitored and logged by SCADA or MES platforms. This data visibility is essential for identifying output channels that are cycling excessively — a common indicator of mechanical wear, sensor drift, or control logic that needs tuning. The GE IC694ACC300 power supply module ensures stable backplane voltage, preventing output misfires caused by voltage sag during high-load switching events.

For facilities implementing predictive maintenance strategies, integrating the IC694MDL742 with an condition monitoring gateway — such as a power quality analyzer connected via Modbus RTU or PROFIBUS — allows maintenance teams to correlate output switching frequency with energy consumption trends. Abnormal spikes in output activity can be flagged automatically, triggering work orders before a mechanical failure causes unplanned downtime.

Maintenance and Replacement Notes

On the production floor, the IC694MDL742 contributes to energy efficiency in several measurable ways. In assembly line applications, precise output timing ensures that pneumatic cylinders, conveyor clutches, and part-present indicators are activated only during the exact window required by the production cycle. Eliminating even 50–100 milliseconds of unnecessary hold time per cycle across 16 output channels — running at 60 cycles per minute — can reduce actuator energy consumption by a meaningful percentage over a full production shift.

In packaging and material handling lines, the module’s reliable switching reduces the need for oversized actuators that compensate for control latency. When outputs fire on time, engineers can right-size pneumatic and hydraulic components, lowering both energy draw and compressed air consumption. Reduced actuator cycling also extends seal and valve life, cutting maintenance intervals and spare parts costs.

For facilities managing multiple Series 90-30 racks across a plant floor, the IC694MDL742’s hot-swap compatibility (with appropriate rack configuration) minimizes downtime during module replacement. Combined with ZYPLC’s pre-shipment functional testing and warranty terms confirmed during quotation, procurement teams can plan replacements with confidence, avoiding the emergency sourcing premiums that inflate maintenance budgets. Stock availability at ZYPLC ensures that critical spare modules are on hand when production schedules cannot afford delays.

Product Sourcing FAQ

Q1: How does the IC694MDL742 contribute to operational stability compared to relay-based output modules?
The IC694MDL742 uses solid-state transistor outputs, which switch faster and with lower power dissipation than electromechanical relays. This reduces heat generation in the control panel, lowers cooling load on enclosure HVAC systems, and eliminates the inductive kickback losses associated with relay coil switching — all of which contribute to measurable operational stability over time.

Q2: Is the IC694MDL742 compatible with my existing GE Series 90-30 rack and CPU?
Yes. The IC694MDL742 is designed for direct installation into any standard GE Series 90-30 baseplate, including 5-slot, 10-slot, and expansion rack configurations. It is compatible with IC693 and IC694 series CPU modules. No firmware changes are required for drop-in replacement of a failed or aging output module.

Q3: What is the recommended replacement and testing process when sourcing from ZYPLC?
All IC694MDL742 units shipped by ZYPLC undergo functional output testing prior to dispatch. Each channel is verified for switching response and current capacity. Upon receipt, it is recommended to perform a bench test using your CPU’s force output function before installing the module in a live rack. The warranty terms confirmed during quotation covers any functional defects identified during normal operation.

Q4: Can this module be used in condition monitoring or power metering applications?
The IC694MDL742 is a discrete output module and is not designed for direct power measurement. However, it can be used to control the enable/disable states of condition monitoring relays, demand response contactors, or load-shedding circuits — making it a useful component in a broader maintenance planning architecture when paired with appropriate analog input and communication modules.
