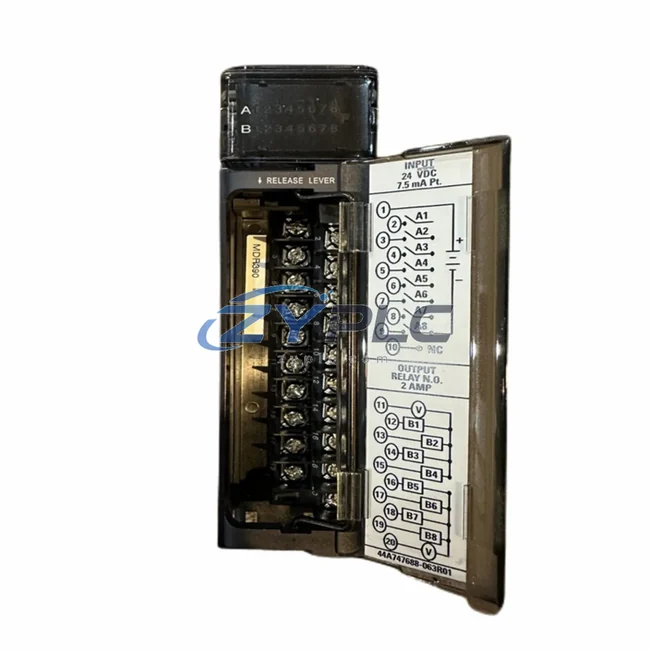

GE IC694MDR3901 Discrete Combo Module for Series 90-30

GE IC694MDR3901 Discrete Combo Module for Series 90-30

The GE IC694MDR3901 is a discrete combination I/O module engineered for deployment within the GE Series 90-30 programmable logic controller platform. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a layered control system architecture — bridging the field device layer and the CPU processing layer with reliable, deterministic signal handling. In distributed manufacturing environments, process control facilities, and utility automation systems, the IC694MDR3901 delivers the I/O density and electrical compatibility required to maintain system-wide coherence across multi-rack and multi-drop configurations.

Within a complete Series 90-30 control architecture, the IC694MDR3901 occupies the I/O layer, receiving discrete input signals from field sensors, limit switches, and proximity detectors while simultaneously driving discrete output loads such as solenoid valves, motor starters, and indicator lamps. Its combination input/output design reduces the total module count required per rack, optimizing backplane slot utilization and lowering the overall bill of materials for panel builders and system integrators. This efficiency is particularly valuable in compact control cabinets where rack space is constrained and thermal management is a design priority.

System architects integrating the IC694MDR3901 into a Series 90-30 platform will typically pair it with a CPU module such as the IC693CPU374 or IC694CPU364, which handles ladder logic execution, PID loop management, and inter-module communication across the backplane. The IC694MDR3901 communicates with the CPU via the Series 90-30 backplane bus, ensuring low-latency scan cycle updates that are critical for time-sensitive discrete control applications. Power distribution to the module is managed through the IC694PWR321 or IC694PWR330 power supply modules, which provide regulated 5 VDC backplane power and 24 VDC field power to support the module’s I/O circuits.

For systems requiring expanded I/O capacity beyond a single rack, the IC694MDR3901 integrates seamlessly with the IC694CHS392 or IC694CHS398 expansion chassis, connected via the IC693CBL300 or IC694CBL001 expansion cables. This multi-rack topology allows engineers to distribute I/O modules across the physical installation footprint while maintaining centralized CPU control — a common requirement in large-scale process control panels, motor control centers, and utility switchgear automation systems.

Network connectivity for supervisory control and data acquisition is supported through communication modules such as the IC694CMM321 Ethernet interface or the IC693CMM311 serial communications module, enabling the Series 90-30 system to exchange data with SCADA platforms, historian servers, and HMI terminals over Ethernet/IP or Modbus TCP protocols. The IC694MDR3901’s I/O data is mapped directly into the CPU’s reference table, making all discrete point states immediately accessible to the network layer without additional configuration overhead.

Human-machine interface integration is achieved through GE QuickPanel or third-party HMI terminals connected via the system’s communication backbone. Operators can monitor the real-time status of all IC694MDR3901 I/O points, acknowledge alarms, and initiate manual overrides directly from the HMI screen — supporting both local panel operation and remote supervisory control from a central control room. This system integration between the I/O layer and the HMI layer is a defining characteristic of well-engineered Series 90-30 architectures.

For redundancy-critical applications, the IC694MDR3901 can be deployed in hot-standby configurations alongside the IC694RMX128 redundancy module, ensuring that a CPU failover event does not interrupt I/O scanning or output state. This redundancy capability is essential in power generation, water treatment, and petrochemical processing applications where unplanned downtime carries significant operational and safety consequences.

All IC694MDR3901 units supplied by ZYPLC are fully tested, functionally verified, and covered by a warranty terms confirmed during quotation, providing procurement engineers and maintenance teams with the confidence required for long-term system planning. Our inventory is maintained to support both immediate replacement requirements and scheduled capital projects, with same-day shipping available for availability confirmed by RFQ units.

Product Specification Table

System Compatibility Notes

A complete Series 90-30 control system built around the IC694MDR3901 typically incorporates the following coordinated components across all architecture layers:

At the CPU layer, the IC694CPU364 or IC693CPU374 executes the control program and manages all backplane communications, providing the processing backbone for the entire system. The IC694PWR321 power supply module delivers stable backplane and field power, ensuring that all I/O modules — including the IC694MDR3901 — operate within their specified electrical parameters under full load conditions.

At the I/O expansion layer, the IC694CHS392 expansion chassis accommodates additional IC694 series modules when the primary rack reaches capacity, with the IC694CBL001 expansion cable maintaining signal integrity across the inter-rack connection. Analog signal conditioning is handled by modules such as the IC694ALG221 analog input module, which works in parallel with the IC694MDR3901’s discrete I/O to provide a complete mixed-signal I/O architecture for process control applications.

At the communications layer, the IC694CMM321 Ethernet communications module enables Ethernet/IP connectivity to SCADA systems and engineering workstations, while the IC693CMM311 provides legacy serial communications for Modbus RTU or SNP protocol integration with older field devices and third-party controllers.

At the HMI layer, GE QuickPanel+ operator terminals provide local visualization of all discrete I/O states mapped through the IC694MDR3901, enabling operators to monitor system status and respond to process alarms without requiring access to the programming workstation. At the redundancy layer, the IC694RMX128 redundancy module ensures seamless CPU failover without disrupting the I/O scan cycle, protecting the integrity of all discrete control loops managed through the IC694MDR3901.

Industrial Application Notes

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the IC694MDR3901 manages discrete control of conveyor drives, pneumatic actuators, part-present sensors, and safety interlocks within a Series 90-30 machine controller. Its relay output capability allows direct switching of 24 VDC and 120 VAC loads without intermediate relay panels, simplifying panel wiring and reducing installation labor.

Power Generation & Utilities: In power plant auxiliary systems and substation automation, the IC694MDR3901 handles discrete status monitoring of circuit breakers, isolation switches, and protection relay contacts. Its integration with the Series 90-30 CPU enables real-time status reporting to the plant DCS or SCADA system via the IC694CMM321 Ethernet module, supporting both local automatic control and remote supervisory override.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the IC694MDR3901 within Series 90-30 systems controlling pump stations, valve actuators, and level switch arrays. The module’s combination I/O architecture reduces the number of racks required in remote pump station panels, lowering both capital cost and ongoing maintenance complexity.

Petrochemical & Process Industries: In refinery and chemical plant applications, the IC694MDR3901 provides discrete I/O for emergency shutdown system (ESD) logic, motor control center (MCC) interlocking, and process valve position monitoring. Its warranty terms confirmed during quotation and ZYPLC’s maintained inventory ensure that critical spare parts are available to support planned turnaround maintenance and unplanned emergency replacements.

Mining & Metals Processing: Conveyor systems, crusher controls, and ore processing equipment in mining operations rely on the IC694MDR3901 for robust discrete I/O in high-vibration, high-dust environments. The module’s industrial-grade construction and wide operating temperature range support reliable operation in the demanding conditions typical of underground and surface mining installations.

Product Compatibility FAQ

Q1: Is the IC694MDR3901 compatible with both IC693 and IC694 series racks and power supplies?
The IC694MDR3901 is designed for the GE Series 90-30 platform and is physically and electrically compatible with both IC693 and IC694 series racks, including the IC694CHS392 and IC693CHS391 expansion chassis. It operates with IC694PWR321, IC694PWR330, and IC693PWR321 power supply modules. System integrators should verify backplane slot assignments and I/O reference table addressing in the Proficy Machine Edition programming environment to ensure correct module configuration within mixed IC693/IC694 rack assemblies.

Q2: How does the IC694MDR3901 support system redundancy and high-availability architectures?
In hot-standby redundancy configurations using the IC694RMX128 redundancy module, the IC694MDR3901’s I/O data is continuously synchronized between the primary and secondary CPUs via the redundancy link. Upon a CPU failover event, the secondary CPU assumes control of all I/O scanning without interrupting output states, provided the redundancy configuration is correctly implemented in the control program. This architecture is recommended for applications where process continuity is a safety or operational requirement, such as power generation, water treatment, and continuous chemical processing.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance planning?
All IC694MDR3901 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify input signal detection, output relay operation, and backplane communication integrity. ZYPLC maintains ongoing inventory of IC694MDR3901 and related Series 90-30 components to support both scheduled preventive maintenance programs and emergency replacement requirements. For long-term maintenance planning, our technical team can assist with spare parts inventory recommendations based on your installed system configuration.
