GE IC694PWR321 PLC Power Supply Series 90-30

GE IC694PWR321 PLC Power Supply for Series 90-30 Automation

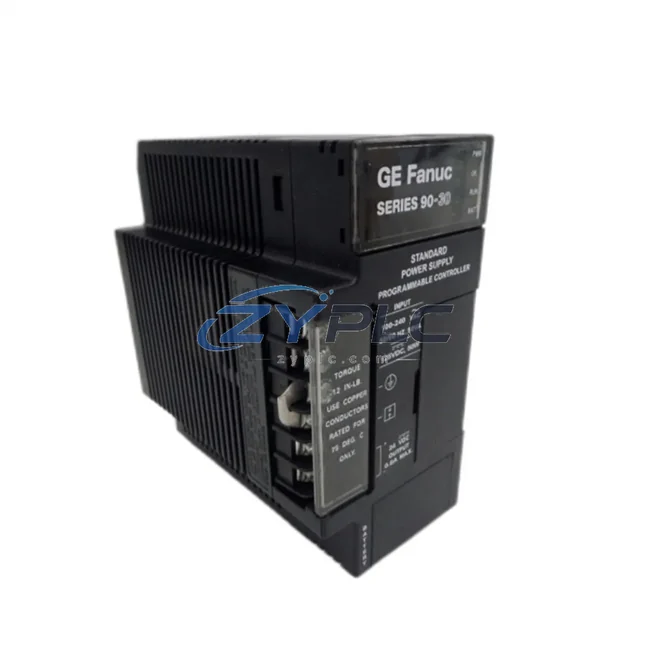

The GE IC694PWR321 is a high-efficiency power supply module engineered for the GE Fanuc Series 90-30 PLC platform. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the IC694PWR321 delivers stable, regulated DC power to the Series 90-30 backplane while minimizing conversion losses and thermal output. Whether deployed in discrete manufacturing, process control, or mixed-signal automation architectures, this module supports continuous operation with measurable reductions in idle power draw and heat-related component degradation.

Unlike generic replacement units, the IC694PWR321 is designed to integrate seamlessly into existing Series 90-30 rack configurations — including 5-slot, 10-slot, and 14-slot backplanes — without requiring firmware reconfiguration or hardware adaptation. This plug-and-play compatibility reduces changeover time, minimizes production interruption, and supports lean maintenance strategies focused on predictive replacement rather than reactive repair.

Product Specification Table

System Compatibility and Application

The IC694PWR321 functions as the energy foundation of the Series 90-30 control system. Its regulated output feeds directly into the CPU module — such as the IC694CPU364 or IC694CPU374 — ensuring that processing cycles remain stable even under fluctuating load conditions. Voltage instability at the power supply level is one of the most common causes of spurious CPU faults and unplanned shutdowns; the IC694PWR321 eliminates this risk through tight output regulation and built-in overcurrent protection.

On the I/O side, discrete and analog modules such as the IC694MDL754 (32-point DC output) and IC694ALG442 (analog combo module) rely on consistent backplane power to maintain signal accuracy. When power quality degrades, analog signal drift increases — leading to miscalibrated PID loops, erratic valve positioning, and wasted energy in heating or pumping systems. The IC694PWR321 maintains the power integrity that keeps these modules performing within specification.

For drive-level maintenance planning, the Series 90-30 system is frequently paired with GE’s AF-600 FP variable frequency drive series or third-party VFDs communicating over Profibus DP or DeviceNet — both supported through Series 90-30 communication modules such as the IC694BEM331 (Profibus DP master). By maintaining stable PLC operation, the IC694PWR321 ensures that speed reference signals to the VFD are transmitted without latency or corruption, enabling precise motor speed control and eliminating the unplanned downtime associated with fixed-speed motor operation.

HMI integration via the IC693CBL316 serial cable or Ethernet-connected panels such as the QuickPanel+ IC755CSS10CDB depends on uninterrupted PLC operation. When the power supply is compromised, HMI communication drops — operators lose visibility into energy consumption trends, and manual overrides increase unplanned downtime. The IC694PWR321 keeps the communication backbone alive, supporting real-time energy dashboards and operator-driven efficiency adjustments.

For condition monitoring at the system level, the IC694PWR321-powered Series 90-30 rack can interface with power quality meters and maintenance planning systems through the IC694APU300 co-processor or via Modbus TCP over an Ethernet module such as the IC694CEE001. This enables kWh tracking per production zone, demand response automation, and integration with plant-level SCADA or MES platforms for energy benchmarking.

Maintenance and Replacement Notes

In automotive body welding lines, the IC694PWR321 supports Series 90-30 controllers managing resistance welding timers, conveyor indexing, and robot trigger signals. Stable power delivery ensures that weld cycle timing remains precise — reducing rework rates and the energy consumed by repeated weld attempts on out-of-tolerance joints.

In food and beverage packaging lines, where washdown environments and frequent start-stop cycles stress power supply components, the IC694PWR321’s robust design reduces the frequency of unplanned replacements. Each unplanned shutdown in a high-speed packaging line can waste thousands of units of product and consume significant energy in restart sequences. Predictive replacement of the IC694PWR321 — supported by its warranty terms confirmed during quotation and pre-shipment testing — allows maintenance teams to schedule changeouts during planned downtime windows, eliminating reactive unplanned downtime.

In water treatment and pumping stations, where Series 90-30 PLCs manage pump sequencing and flow control, the IC694PWR321 ensures that pump start/stop logic executes without delay. Delayed or missed pump commands lead to pressure surges, valve wear, and energy-intensive pressure recovery cycles. Reliable power supply operation directly reduces these inefficiencies.

Across all applications, the IC694PWR321 contributes to lower total cost of ownership by extending the operational life of connected I/O modules, reducing heat-related failures in the control cabinet, and supporting the kind of deterministic control execution that maintenance planning algorithms depend on.

Product Sourcing FAQ

Q1: How does the IC694PWR321 contribute to operational stability compared to a standard replacement power supply?
The IC694PWR321 is rated for up to 88% conversion efficiency under full load, which is higher than many generic aftermarket alternatives. Lower conversion losses mean less heat generated inside the control cabinet — reducing the load on cabinet cooling systems and extending the service life of adjacent components. Over a multi-year operational period, this efficiency advantage translates into measurable reductions in facility energy consumption.

Q2: Is the IC694PWR321 compatible with all Series 90-30 rack configurations and CPU models?
Yes. The IC694PWR321 is compatible with all standard GE Fanuc Series 90-30 backplane configurations, including 5-slot (IC694CHS392), 10-slot (IC694CHS392), and 14-slot racks. It supports all Series 90-30 CPU modules including the IC694CPU350, IC694CPU360, IC694CPU364, and IC694CPU374. No firmware changes or hardware adapters are required for installation.

Q3: What is the recommended replacement interval, and how does predictive replacement reduce downtime costs?
Under continuous industrial duty cycles, power supply modules in the Series 90-30 platform are typically evaluated for replacement every 5–7 years or when output voltage ripple exceeds specification. Proactive replacement using a tested, availability confirmed by RFQ IC694PWR321 unit — rather than waiting for failure — eliminates unplanned downtime events that can cost significantly more than the module itself in lost production and emergency labor. Our pre-shipment testing protocol verifies output voltage, ripple, and overcurrent protection before dispatch.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IC694PWR321 unit shipped by ZYPLC is tested under load conditions prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, ZYPLC provides a replacement or full refund. Our testing process includes input voltage sweep, output voltage regulation check, overcurrent trip verification, and thermal stability assessment — ensuring that every unit performs to GE Fanuc specification from day one.
