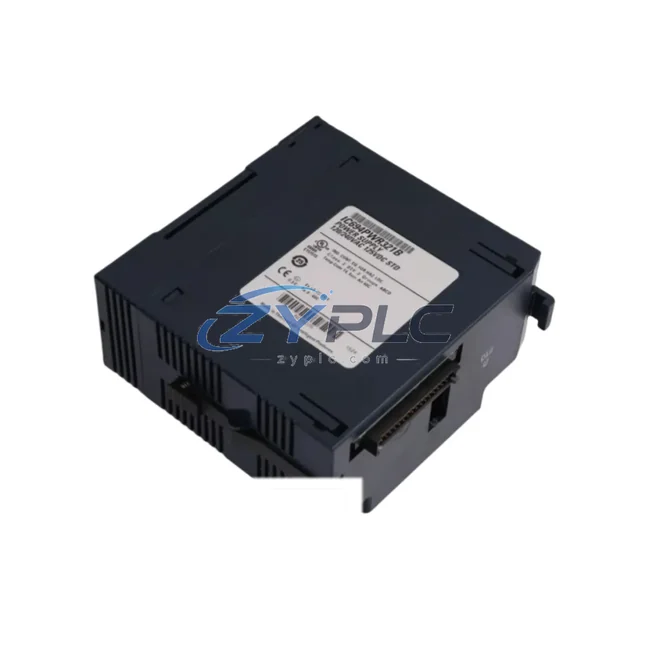

GE IC694PWR321B Power Supply for Series 90-30

GE IC694PWR321B Power Supply for Series 90-30

The GE IC694PWR321B is a 120/240VAC input power supply module engineered specifically for the GE Series 90-30 programmable logic controller platform. Within a layered industrial automation architecture, the power supply is the foundational layer upon which every other subsystem depends — from the CPU and I/O modules to communication gateways and human-machine interfaces. The IC694PWR321B delivers stable, regulated DC bus power to the Series 90-30 backplane, ensuring that all co-resident modules operate within their specified electrical tolerances across the full range of industrial environments. Its design reflects GE Automation’s commitment to system-level reliability, making it a critical component for engineers who prioritize uptime, maintainability, and long-term operational consistency.

In modern distributed control architectures, power integrity is not a secondary concern — it is the prerequisite for every other layer of system performance. The IC694PWR321B supports this philosophy by providing clean, regulated power to the IC694CPU364, IC694CPU374, and other Series 90-30 CPU modules, allowing the processor to execute ladder logic, function block diagrams, and structured text programs without voltage-induced faults or brownout resets. When paired with redundant CPU configurations or hot-standby architectures, a reliable power supply such as the IC694PWR321B becomes even more critical, as any power instability at the backplane level can propagate across the entire control node.

Product Specification Table

System Compatibility Notes

The IC694PWR321B does not operate in isolation — it is the electrical backbone of a complete Series 90-30 control node. Understanding its role requires examining how it interacts with every other module in the rack and across the broader control system architecture.

At the processor layer, the IC694PWR321B supplies regulated power to the IC694CPU364 and IC694CPU374 CPUs, which serve as the primary logic execution engines in mid-range Series 90-30 applications. These CPUs manage scan cycles, handle interrupt-driven I/O, and maintain communication with upstream SCADA systems or DCS platforms. Without stable backplane power, CPU scan time jitter increases and deterministic control becomes unreliable.

At the I/O layer, the power supply energizes discrete input modules such as the IC694MDL645 (16-point 24VDC input) and discrete output modules such as the IC694MDL754 (16-point relay output), as well as analog modules including the IC694ALG221 (analog input) and IC694ALG390 (analog output). These modules handle field signal conditioning, converting process variables — temperature, pressure, flow, position — into digital values the CPU can act upon. The IC694PWR321B’s 24VDC isolated field power output also supports field device loop power for two-wire transmitters, reducing the need for external 24VDC power supplies in many panel configurations.

At the communication layer, the IC694CMM321 Ethernet communications module and the IC694CMM301 serial communications module both draw backplane power from the IC694PWR321B. These modules enable the Series 90-30 rack to participate in plant-wide Ethernet/IP networks, Modbus TCP/IP communications, and legacy RS-232/RS-485 serial links to drives, meters, and remote I/O adapters. Stable power delivery to these communication modules is essential for maintaining network uptime and preventing packet loss or communication timeouts that could trigger false fault conditions in the control program.

At the backplane and expansion layer, the IC694PWR321B is compatible with the IC694CHS392 5-slot baseplate and the IC694CHS398 10-slot baseplate, as well as expansion racks connected via the IC694BEM321 bus expansion module. This allows engineers to scale the I/O count of a Series 90-30 system without replacing the primary CPU or power supply, preserving capital investment while accommodating process expansion.

At the HMI layer, operator interface terminals communicating via serial or Ethernet to the Series 90-30 CPU rely on the communication modules powered by the IC694PWR321B. Whether the HMI is a panel-mounted touchscreen or a PC-based SCADA workstation, the data pipeline originates at the backplane — making power supply reliability a direct factor in operator visibility and control responsiveness.

Industrial Application Notes

The IC694PWR321B is deployed across a wide range of industrial sectors where the Series 90-30 platform has established a long operational track record.

In manufacturing and discrete assembly environments, Series 90-30 racks powered by the IC694PWR321B control conveyor sequencing, robotic cell interlocking, press cycle management, and quality inspection station logic. The module’s ability to supply both backplane logic power and isolated 24VDC field power simplifies panel wiring and reduces the number of external power supply units required in the control cabinet.

In power generation and electrical substation applications, the Series 90-30 platform is used for protection relay coordination, transformer monitoring, and switchgear control. The IC694PWR321B’s wide input voltage range (120/240VAC auto-ranging) makes it suitable for both North American and international grid voltages, and its UL and CE certifications satisfy the compliance requirements of utility-grade installations.

In water and wastewater treatment facilities, Series 90-30 systems manage pump sequencing, chemical dosing, filtration cycle control, and SCADA data acquisition. The IC694PWR321B’s robust thermal design — rated for continuous operation from 0°C to 60°C — ensures reliable performance in pump houses and outdoor equipment enclosures where ambient temperature management is challenging.

In oil, gas, and petrochemical process plants, the Series 90-30 platform handles wellhead control, pipeline pressure regulation, separator sequencing, and compressor station automation. In these environments, the IC694PWR321B’s role in maintaining backplane stability directly supports process safety, as any power interruption to the CPU or I/O modules can trigger emergency shutdown sequences and unplanned production losses.

In mining and metals processing operations, Series 90-30 racks control crusher sequencing, conveyor load management, flotation cell automation, and smelter process control. The rugged construction of the IC694PWR321B and its Series 90-30 rack partners makes this platform a preferred choice for environments with high vibration, dust ingress, and wide temperature swings.

Product Compatibility FAQ

Q1: Is the IC694PWR321B compatible with both 5-slot and 10-slot Series 90-30 baseplates, and can it power a fully populated rack?
Yes. The IC694PWR321B is compatible with the IC694CHS392 (5-slot) and IC694CHS398 (10-slot) baseplates. It delivers 30W of continuous backplane power, which is sufficient for a fully populated rack of standard I/O modules. For racks with high-power modules such as multiple analog output cards or communication modules, engineers should perform a power budget calculation using GE’s Series 90-30 Hardware User’s Manual to confirm that total module consumption does not exceed the supply’s rated output. If additional power is required, a second power supply can be installed in a dedicated power supply slot on the same baseplate.

Q2: How does the IC694PWR321B support system redundancy and long-term maintainability in critical control applications?
While the IC694PWR321B itself is a single-supply module, Series 90-30 redundancy architectures typically address power redundancy at the cabinet level through dual-feed AC distribution and UPS systems upstream of the module. At the control level, CPU redundancy using paired IC694CPU374 modules with the IC694RCM321 redundancy communications module ensures that a CPU fault does not interrupt process control. For long-term maintainability, ZYPLC supports RFQ sourcing for the IC694PWR321B and related Series 90-30 components, enabling rapid replacement without extended lead times. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing to verify output voltage regulation and inrush current characteristics.

Q3: What should engineers verify during commissioning when installing a replacement IC694PWR321B in an existing Series 90-30 system?
During commissioning, engineers should verify the following: (1) Confirm input voltage selection matches the site supply — the IC694PWR321B auto-ranges between 120VAC and 240VAC, but the input wiring must be correctly terminated at the power supply’s AC input terminals. (2) Measure backplane bus voltage at the CPU module connector to confirm +5VDC is within the ±5% tolerance specified by GE. (3) Verify that the 24VDC isolated field power output is within tolerance before connecting field devices. (4) Confirm that the CPU module (IC694CPU364 or IC694CPU374) performs a normal power-up sequence and that the RUN/FAULT LEDs indicate normal operation. (5) Check that all communication modules (IC694CMM321, IC694CMM301) re-establish their network connections after power restoration. ZYPLC’s technical support team is available to assist with commissioning verification and troubleshooting under the warranty terms confirmed during quotation coverage period.
