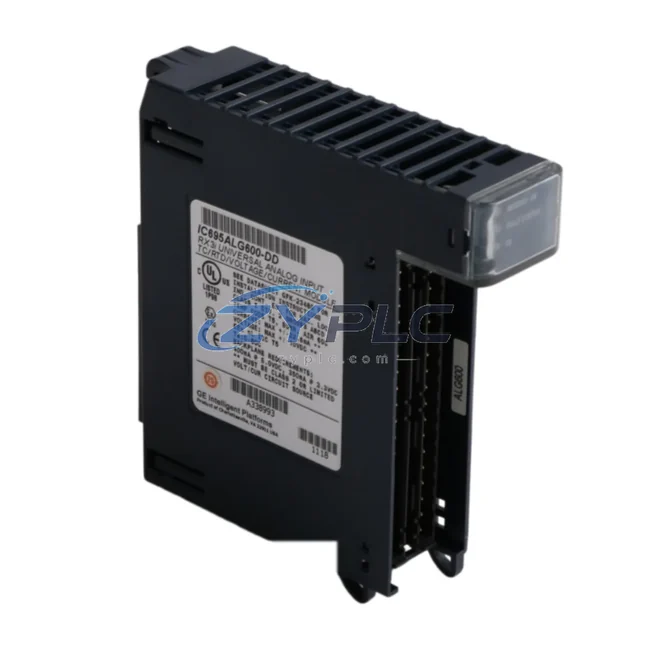

GE IC695ALG600-DD Analog Input Module for PACSystems RX3i

GE IC695ALG600-DD Industrial Network Interface for PACSystems RX3i Systems: Bridging Field Signals to the Smart Factory Data Layer

The GE IC695ALG600-DD is a high-density, universal analog input module engineered for the GE PACSystems RX3i control platform. Designed to serve as a critical signal acquisition node in modern industrial automation architectures, this 16-channel module accepts a wide range of input signal types — including voltage (±10V, 0–10V), current (0–20mA, 4–20mA), thermocouples (J, K, T, E, R, S, B types), and RTD sensors (PT100, PT1000, Ni120) — making it one of the most versatile analog front-ends available for process control and smart factory integration.

In today’s connected manufacturing environment, the ability to reliably capture, convert, and transmit analog field data across digital control networks is foundational to operational transparency. The IC695ALG600-DD fulfills this role by delivering high-resolution 16-bit analog-to-digital conversion, enabling precise measurement of temperature, pressure, flow, and level signals from field instruments. These digitized values are then passed directly into the PACSystems RX3i CPU — such as the IC695CPE330 or IC695CPE302 — via the high-speed RX3i backplane bus, ensuring deterministic data delivery with sub-millisecond scan cycle integration.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC695ALG600-DD sits at the origin of the industrial data chain. Field sensors — including 4–20mA pressure transmitters, PT100 RTD temperature probes, and thermocouple arrays mounted on process vessels — feed raw analog signals directly into the module’s 16 configurable input channels. Each channel independently performs high-resolution conversion, filtering, and scaling before placing engineering-unit values into the RX3i CPU’s process image table.

From the CPU — typically an IC695CPE330 running PACSystems Machine Edition logic — the processed data is forwarded upstream via the IC695ETM001 Ethernet module, which provides a PROFINET IO and EtherNet/IP interface to the plant network. This allows SCADA systems such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation to poll real-time analog values at configurable update rates, enabling live process visualization, trend logging, and alarm management on operator HMI stations.

For distributed plant topologies, the RX3i rack hosting the IC695ALG600-DD can be extended via IC695RMX128 Remote I/O expansion or connected to remote racks using IC695PBM300 PROFIBUS Master modules, allowing analog data from geographically dispersed field panels to be aggregated into a single control domain. In multi-network environments, protocol gateways such as the HMS Anybus X-gateway or Moxa MGate series can bridge Modbus RTU field devices — including variable frequency drives (VFDs), flow meters, and smart transmitters — into the PROFINET or EtherNet/IP backbone, with the IC695ALG600-DD handling the native analog front-end acquisition layer.

At the edge computing layer, data aggregated from the RX3i system can be forwarded to GE Predix or third-party IIoT platforms via OPC-UA tunneling, enabling predictive maintenance analytics, energy monitoring dashboards, and digital twin synchronization. The IC695ALG600-DD thus forms an indispensable link in the signal chain — from raw field measurement to enterprise-level data intelligence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is the fragmentation of analog signal data across incompatible control islands. Older DCS systems, standalone PLCs, and proprietary field bus networks often operate in isolation, preventing plant managers from achieving a unified view of process performance. The GE IC695ALG600-DD directly addresses this challenge within the PACSystems RX3i ecosystem.

By supporting universal input types on a per-channel basis, the module eliminates the need for separate dedicated modules for voltage, current, and temperature inputs — reducing panel footprint, wiring complexity, and spare parts inventory. A single IC695ALG600-DD can simultaneously monitor a 4–20mA level transmitter, a PT100 bearing temperature sensor, a thermocouple on a heat exchanger, and a ±10V position feedback signal — all within one module slot on the IC695CHS016 universal backplane.

For remote monitoring and diagnostics, the module’s data is accessible through the RX3i CPU’s built-in Ethernet port or via the IC695ETM001, enabling remote engineers to interrogate live analog values, review historical trends, and acknowledge process alarms without physical site access. This capability is critical for unmanned substations, offshore platforms, and geographically distributed process plants where on-site intervention is costly and time-consuming.

System scalability is another key advantage. As production lines expand, additional IC695ALG600-DD modules can be added to existing RX3i racks or new remote racks without modifying the control program architecture — the PACSystems RX3i platform supports hot-insertion of I/O modules in select configurations, minimizing production downtime during system expansion. Combined with the platform’s support for redundant CPU configurations using IC695CRU320, the overall system delivers the high availability demanded by continuous process industries.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC695ALG600-DD support for SCADA integration?
The IC695ALG600-DD itself communicates via the RX3i high-speed backplane bus. At the network level, the PACSystems RX3i CPU (e.g., IC695CPE330) exposes analog data over PROFINET IO, EtherNet/IP, and Modbus TCP through the IC695ETM001 Ethernet module. OPC-UA connectivity is achievable via SCADA middleware, enabling seamless integration with iFIX, Wonderware, Ignition, and other industrial SCADA/HMI platforms.

Q2: How is network stability and data integrity ensured for real-time analog monitoring?
The RX3i backplane bus provides deterministic, high-speed data transfer between the IC695ALG600-DD and the CPU, with configurable channel scan rates and hardware filtering to suppress electrical noise. For Ethernet-level communication, the IC695ETM001 supports PROFINET IRT (Isochronous Real-Time) mode, ensuring sub-millisecond cycle times for time-critical analog loops. Redundant network topologies (ring, star) are supported at the Ethernet layer.

Q3: Can the IC695ALG600-DD be integrated into an existing multi-vendor automation network?
Yes. The PACSystems RX3i platform supports multi-protocol communication, and the IC695ALG600-DD’s data can be bridged to Modbus RTU, PROFIBUS DP, DeviceNet, or other legacy field bus networks using appropriate gateway modules. This makes it suitable for brownfield integration projects where existing field devices and control systems must coexist with modern Ethernet-based architectures.

Q4: What quality assurance and warranty coverage is provided for the IC695ALG600-DD?
Every GE IC695ALG600-DD unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, input range switching, and backplane communication integrity. All units are covered by a from the date of shipment. Shipment timing is confirmed after RFQ review, testing, and export packing.
