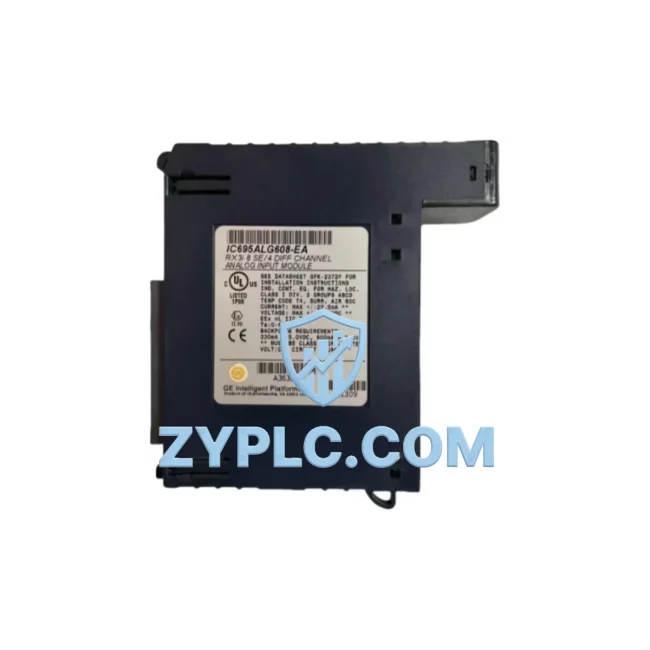

The GE IC695ALG608 is an 8-channel analog input module engineered for the GE PACSystems RX3i platform — one of the most widely deployed programmable automation controller (PAC) architectures in process manufacturing, discrete assembly, and hybrid industrial environments. Designed to bridge the gap between field-level sensing devices and upper-layer control systems, the IC695ALG608 serves as a critical node in the industrial data chain, converting real-world analog signals into precise digital values that feed directly into PLC logic, SCADA dashboards, and HMI visualization layers.

In modern smart factory deployments, the integrity of analog signal acquisition is foundational. Whether monitoring temperature via thermocouple transmitters, tracking pressure through 4–20 mA loop-powered sensors, or reading voltage outputs from flow meters and level transducers, the IC695ALG608 delivers high-resolution, low-latency data capture across all 8 channels simultaneously. Each channel supports configurable input ranges, enabling seamless integration with diverse field instrumentation without requiring additional signal conditioning hardware.

Network Communication Table

Connected Automation Data Flow

In a fully integrated PACSystems RX3i architecture, the IC695ALG608 sits at the front end of the data acquisition chain. Field sensors — including 4–20 mA pressure transmitters, RTD temperature probes, and analog output drives — feed their signals directly into the module’s input channels. The IC695ALG608 digitizes these signals at 16-bit resolution and passes the data across the RX3i backplane to the IC695CPE330 or IC695CPE400 CPU module, where real-time PLC logic processes alarm thresholds, PID control loops, and interlock conditions.

For network-level communication, the IC695PNC001 PROFINET Controller module enables the RX3i rack to exchange I/O data with remote PROFINET devices — including distributed I/O stations, variable frequency drives (VFDs), and smart actuators — across the plant floor Ethernet backbone. Simultaneously, the IC695ETM001 Ethernet Module provides Modbus TCP and SRTP connectivity, allowing SCADA systems such as GE’s own Cimplicity or third-party platforms like Ignition by Inductive Automation to poll real-time analog values from the IC695ALG608 at configurable scan rates.

At the HMI layer, operator panels connected via the IC695PBM300 PROFIBUS Master or standard Ethernet can display live process values, trend curves, and alarm states derived from the IC695ALG608’s channel data. For remote I/O expansion, the IC694ALG220 and IC694ALG232 analog modules on Series 90-30 racks can be integrated via the IC695CMM002 Serial Communications Module, extending the analog acquisition network to legacy equipment without replacing existing infrastructure.

In edge computing scenarios, an industrial edge gateway — such as those running on Emerson’s PAC Machine Edition software environment — can subscribe to OPC-UA data published from the RX3i controller, enabling cloud-based analytics, predictive maintenance algorithms, and digital twin synchronization. The IC695ALG608’s high-speed, simultaneous sampling across all 8 channels ensures that time-correlated data sets are available for both real-time control and historical trending in upstream MES and ERP systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of multiple communication protocols across different generations of equipment. A plant may have legacy Modbus RTU devices on the field level, PROFIBUS DP networks connecting mid-tier drives and remote I/O, and a modern Ethernet/IP backbone serving newer PLC racks and SCADA servers. Without a unified analog acquisition strategy, data from field sensors remains siloed — invisible to upper-layer systems and unavailable for real-time decision-making.

The GE IC695ALG608, deployed within the PACSystems RX3i platform, directly addresses this fragmentation. By centralizing analog signal acquisition into a high-resolution, backplane-integrated module, it eliminates the need for standalone signal converters or protocol bridges at the field level. The RX3i CPU’s built-in multi-protocol communication stack — accessible via the IC695ETM001 and IC695PNC001 modules — then translates this analog data into standard industrial protocols, making it available to any SCADA, HMI, or MES system on the network.

For remote monitoring and diagnostics, the IC695ALG608 supports channel-level fault detection, including open-wire detection on current input channels and over-range/under-range alarms. These diagnostic signals are mapped directly into the PLC’s I/O fault table, enabling automatic alarm generation in SCADA systems and reducing mean time to repair (MTTR) for field instrumentation faults. Remote engineering teams can access live channel diagnostics via the PAC Machine Edition programming environment over standard Ethernet, eliminating the need for on-site visits during routine troubleshooting.

Production line transparency is further enhanced by the module’s ability to feed analog data into historian databases via OPC-DA or OPC-UA interfaces. Process engineers can analyze long-term trends, identify drift in sensor calibration, and correlate analog events with production quality metrics — all without interrupting live operations. This capability is essential for facilities pursuing ISO 9001 compliance, energy management certification, or Industry 4.0 digital transformation initiatives.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC695ALG608 support for SCADA integration?
The IC695ALG608 itself communicates over the RX3i backplane bus. For SCADA connectivity, it relies on companion communication modules in the same rack: the IC695ETM001 provides Modbus TCP and SRTP (GE’s proprietary protocol), while the IC695PNC001 enables PROFINET IO. OPC-UA connectivity is achievable via software gateways running on the PACSystems CPU or an external edge device. This multi-protocol architecture ensures compatibility with virtually all major SCADA platforms, including Cimplicity, iFIX, Ignition, and Wonderware.

Q2: How does the IC695ALG608 ensure network stability and data integrity in high-noise industrial environments?
The module features differential analog inputs with hardware filtering on each channel, providing effective rejection of common-mode noise from variable frequency drives, welding equipment, and high-current motor circuits. The RX3i backplane uses a deterministic, time-sliced communication architecture that guarantees consistent scan-cycle data delivery regardless of network load. For critical applications, redundant CPU configurations using the IC695CHS016 backplane and dual IC695CPE330 processors can be deployed to eliminate single points of failure in the control network.

Q3: Can the IC695ALG608 be expanded or integrated with remote I/O systems?
Yes. The PACSystems RX3i platform supports both local rack expansion and remote I/O via PROFINET or Ethernet/IP. Additional analog input capacity can be added by installing multiple IC695ALG608 modules in the same or expanded backplane. For geographically distributed I/O, PROFINET remote I/O adapters allow analog modules to be placed close to field devices while maintaining high-speed communication with the central RX3i CPU. This architecture supports system expansion without requiring changes to the existing network infrastructure.

Q4: What quality assurance and warranty coverage is provided for the IC695ALG608?
Every IC695ALG608 unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel analog input verification, backplane communication checks, and firmware version confirmation. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware fault within the warranty period, ZYPLC provides replacement or repair at no additional cost. Expedited shipping options are available to minimize production downtime for critical applications.
