GE IC695ALG626 Analog Input HART for RX3i

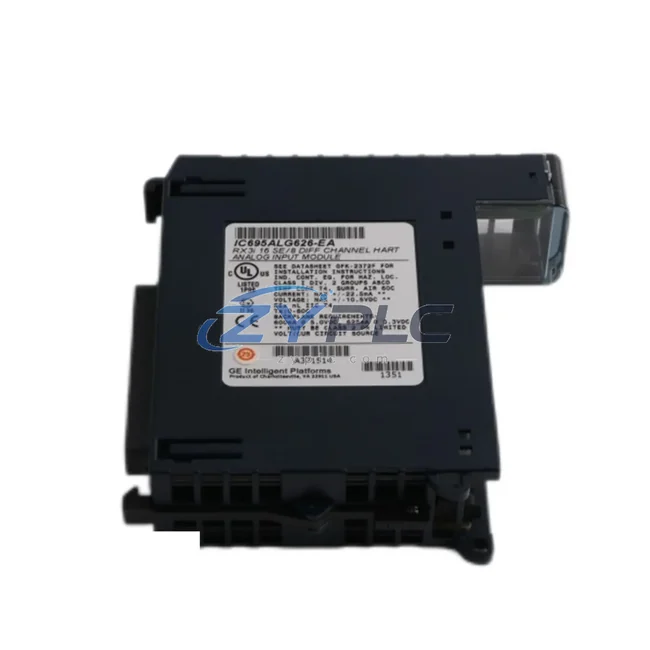

GE IC695ALG626 Analog Input HART Module for PACSystems RX3i

The GE IC695ALG626 is an 8-channel HART-enabled analog input module engineered for seamless integration within the GE PACSystems RX3i control architecture. Designed to operate within the Universal Backplane ecosystem, this module bridges the gap between field instrumentation and the control layer, enabling high-fidelity signal acquisition, real-time diagnostics, and intelligent device communication across complex industrial automation systems. Whether deployed in continuous process environments or discrete manufacturing lines, the IC695ALG626 delivers the signal integrity, protocol compatibility, and architectural consistency that modern industrial control systems demand.

In a layered automation architecture, the IC695ALG626 occupies a critical position at the I/O layer, interfacing directly with HART-compatible field transmitters — including pressure, flow, temperature, and level instruments — while passing structured data upward to the CPU layer via the RX3i backplane bus. This tight integration with the IC695CPE330 or IC695CPE400 CPU modules ensures deterministic scan cycle performance and eliminates the latency associated with external gateway solutions. The module’s HART pass-through capability allows secondary host systems and asset management platforms to communicate with field devices concurrently, without interrupting primary control loop execution.

System architects integrating the IC695ALG626 into a PACSystems RX3i rack will typically pair it with the IC695PSD040 or IC695PSA040 power supply modules to ensure stable, regulated DC power across the backplane. The IC694MDL940 discrete output module and IC695MDL664 discrete input module are commonly co-located in the same chassis to support mixed I/O architectures in a single rack footprint. For applications requiring expanded I/O capacity beyond a single rack, the IC695RMX128 remote I/O expansion module enables seamless signal distribution across distributed control cabinets while maintaining backplane-level communication integrity.

Network-layer integration is equally robust. The IC695ALG626 operates within systems that leverage the IC695ETM001 Ethernet communications module for SRTP and Modbus TCP connectivity, enabling real-time data exchange with SCADA platforms, historian servers, and MES systems. In redundant control architectures, the module is fully compatible with the IC695RMX128 redundancy expansion module and IC695HSC304 high-speed counter configurations, supporting hot-standby CPU redundancy without requiring additional I/O mapping reconfiguration. This architectural flexibility makes the IC695ALG626 a preferred choice for critical infrastructure applications where unplanned downtime carries significant operational and financial consequences.

At the human-machine interface layer, process data acquired by the IC695ALG626 is readily accessible through GE’s Proficy HMI/SCADA — CIMPLICITY or iFIX platforms, as well as third-party HMI terminals communicating via OPC-UA or Modbus TCP. The module’s HART diagnostic data — including device status, loop current, and secondary variables — can be surfaced directly on operator displays, enabling condition-based maintenance workflows without requiring dedicated HART handheld communicators on the plant floor.

From an engineering and commissioning perspective, the IC695ALG626 supports channel-level configuration through GE’s Proficy Machine Edition (PME) programming environment, allowing engineers to define input range, filter time constants, HART polling intervals, and alarm thresholds on a per-channel basis. This granular configurability reduces commissioning time and supports rapid system validation during factory acceptance testing (FAT) and site acceptance testing (SAT). The module’s non-volatile configuration storage ensures that channel parameters are retained across power cycles, eliminating the need for re-commissioning after planned maintenance shutdowns.

Long-term maintainability is a core design principle of the IC695ALG626. Its hot-swap compatibility within the RX3i Universal Backplane allows field replacement without powering down the entire rack, minimizing mean time to repair (MTTR) in live production environments. Spare module inventory management is simplified by the module’s broad compatibility across PACSystems RX3i rack configurations, reducing the number of unique spare part numbers required to maintain system availability. All IC695ALG626 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing assurance of functional integrity and supply chain reliability for capital project procurement and MRO replenishment programs.

Product Specification Table

System Compatibility Notes

The IC695ALG626 achieves its full architectural value when deployed as part of a coordinated PACSystems RX3i control system. A typical system configuration integrating this module includes the following components working in concert:

• IC695CPE330 / IC695CPE400 — PACSystems RX3i CPU modules providing deterministic ladder/function block execution and backplane I/O scanning.
• IC695PSD040 / IC695PSA040 — RX3i power supply modules delivering regulated backplane power to all installed I/O modules including the IC695ALG626.
• IC695ETM001 — Ethernet communications module enabling SRTP, Modbus TCP, and EGD protocol connectivity for SCADA and historian integration.
• IC695MDL664 — 32-channel 24VDC discrete input module for co-located digital signal acquisition within the same RX3i chassis.
• IC694MDL940 — 12-channel relay output module for discrete actuator control within the same control cabinet.
• IC695RMX128 — Remote I/O expansion module supporting distributed rack configurations and hot-standby CPU redundancy architectures.
• IC695CHS016 — 16-slot RX3i Universal Backplane chassis providing the physical mounting and backplane bus infrastructure for the IC695ALG626 and co-located modules.
• IC695ALG704 — Analog output module for closed-loop control signal generation, typically paired with the IC695ALG626 in PID control architectures.
• IC695CMM002 — Serial communications module supporting Modbus RTU and DNP3 protocols for legacy field device integration.
• IC695HSC304 — High-speed counter module for encoder and pulse-train signal acquisition in motion-adjacent control applications.

This coordinated module selection ensures architectural consistency, simplifies spare parts management, and supports a unified engineering environment within Proficy Machine Edition across the entire control system lifecycle.

Industrial Application Notes

The IC695ALG626 is deployed across a broad spectrum of industrial sectors where HART-enabled analog signal acquisition and system-level integration are essential to operational performance:

• Oil & Gas / Petrochemical: Acquisition of HART signals from pressure transmitters, flow meters, and level gauges in upstream and downstream process units. The module’s HART diagnostic capability supports predictive maintenance programs aligned with IEC 61511 functional safety requirements.
• Electric Power Generation & Transmission: Integration with turbine control systems, transformer monitoring, and substation automation platforms. The IC695ALG626’s isolation characteristics and wide operating temperature range support deployment in high-voltage switchgear environments.
• Water & Wastewater Treatment: Monitoring of flow, pH, dissolved oxygen, and turbidity transmitters across distributed pump stations and treatment process trains. HART pass-through enables remote calibration of field instruments without process interruption.
• Mining & Mineral Processing: Signal acquisition from conveyor load cells, crusher pressure sensors, and flotation cell level transmitters. The module’s robust operating temperature range supports deployment in harsh environmental conditions.
• Metallurgy & Steel Production: Integration with furnace temperature profiling systems, rolling mill tension control loops, and continuous casting process instrumentation.
• Pharmaceutical & Food Processing: Acquisition of validated analog signals in GMP-regulated environments, supporting batch process control and electronic batch record (EBR) integration via SCADA historian connectivity.
• Packaging & Material Handling: Analog signal acquisition from servo drive feedback, tension control systems, and web tension sensors in high-speed packaging line architectures.

Product Compatibility FAQ

Q1: Is the IC695ALG626 compatible with both IC694 and IC695 series backplanes in a mixed RX3i architecture?
The IC695ALG626 is designed for the RX3i Universal Backplane (IC695CHS016, IC695CHS012) which supports both IC694 and IC695 series modules in the same chassis. This backward compatibility allows system architects to integrate the IC695ALG626 alongside legacy IC694 discrete and analog I/O modules without requiring a full system migration, protecting existing capital investment while expanding HART capability.

Q2: How does the IC695ALG626 support redundant control architectures, and what configuration changes are required?
In a PACSystems RX3i hot-standby CPU redundancy configuration using the IC695RMX128 redundancy expansion module, the IC695ALG626 operates as a standard I/O module with no special redundancy configuration required at the module level. I/O data is synchronized between primary and secondary CPUs via the redundancy link, and channel configuration parameters are mirrored automatically through the Proficy Machine Edition project. Switchover events are transparent to the I/O module, ensuring continuous analog signal acquisition without data loss or channel reconfiguration.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the IC695ALG626?
All IC695ALG626 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement support to minimize system downtime. For long-term MRO programs, ZYPLC maintains strategic inventory of IC695ALG626 and compatible PACSystems RX3i modules, enabling rapid fulfillment for both planned maintenance shutdowns and emergency replacement scenarios. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 to discuss volume pricing, consignment stock arrangements, and extended support agreements.
