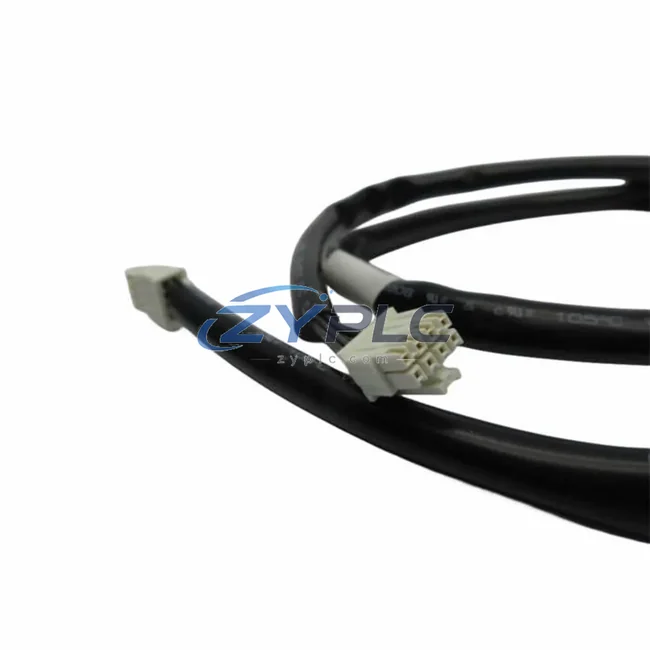

GE IC695CBL001A Cable Assembly for RX3i

GE IC695CBL001A Cable Assembly for RX3i: Precision Signal Continuity Across Every Control Layer

In a well-engineered PACSystems RX3i control architecture, every physical connection between modules, racks, and subsystems must perform with absolute reliability. The GE IC695CBL001A is a factory-engineered cable assembly purpose-built for the RX3i platform, ensuring that signal integrity, power continuity, and data flow are maintained across the full vertical stack — from field-level I/O to the CPU backplane, and from the control cabinet to remote expansion racks. This is not a generic cable; it is a system-matched interconnect designed to preserve the electrical and mechanical tolerances that GE’s PACSystems architecture demands.

Whether you are commissioning a new greenfield automation system, expanding an existing RX3i installation, or replacing a degraded cable in a live production environment, the IC695CBL001A delivers the dimensional accuracy, shielding performance, and connector durability required for long-term industrial service. Its role within the broader control system is to eliminate signal degradation at the physical layer — the most common and most overlooked source of intermittent faults in PLC-based automation.

Product Specification Table

System Compatibility Notes

The IC695CBL001A is most accurately understood not as a standalone component, but as the physical backbone that holds a multi-rack RX3i system together. In a typical PACSystems RX3i deployment, the IC695CHS016 main chassis houses the CPU — commonly the IC695CPE330 or IC695CPE400 — alongside power supply modules such as the IC695PSA040 or IC695PSD040. When the application requires more I/O capacity than a single rack can accommodate, expansion racks like the IC695CHS012 are added, and it is precisely here that the IC695CBL001A performs its critical function: providing the certified, low-impedance interconnect between the main backplane and the expansion chassis.

On the I/O layer, modules such as the IC695MDL654 discrete output module, the IC695ALG600 analog input module, and the IC695ALG704 analog output module populate the expansion rack slots. These modules depend entirely on the physical cable link established by the IC695CBL001A to communicate scan cycle data back to the CPU. Any degradation in this cable — whether from mechanical stress, connector oxidation, or EMI ingress — will manifest as I/O scan errors, module fault alarms, or intermittent data loss that is notoriously difficult to diagnose without first inspecting the physical interconnect.

At the network and communication layer, the RX3i system may include an IC695ETM001 Ethernet module for SRTP or Modbus TCP communication with SCADA systems, or an IC695PBM300 PROFIBUS master module for legacy field device integration. These communication modules also reside in the rack and rely on the backplane bus — and by extension, the IC695CBL001A — for their internal data exchange with the CPU. A compromised cable at this layer can cause communication timeouts that appear to be network faults but are in fact physical layer failures.

For HMI integration, operators typically connect QuickPanel+ or third-party HMI panels via Ethernet to the IC695ETM001, with the HMI polling real-time process data from the CPU. The data path from field sensor → I/O module → backplane cable → CPU → Ethernet module → HMI is only as reliable as its weakest physical link. The IC695CBL001A ensures that the backplane segment of this chain meets GE’s original design tolerances.

In redundancy architectures, where dual CPUs and dual power supplies are deployed for high-availability applications, the cable assembly must also meet the mechanical repeatability requirements for hot-standby switchover. A certified replacement cable like the IC695CBL001A ensures that redundancy failover does not introduce signal anomalies caused by non-standard interconnects.

Industrial Application Notes

The IC695CBL001A finds application across a wide range of industries where PACSystems RX3i is the control platform of choice:

Manufacturing & Discrete Automation: In automotive assembly lines and electronics manufacturing, RX3i systems control robotic cells, conveyor systems, and quality inspection stations. Multi-rack configurations are common, and the IC695CBL001A ensures that expansion I/O racks respond within the required scan cycle time without communication errors that could halt production.

Power Generation & Utilities: In power plant auxiliary systems and substation automation, RX3i controllers manage breaker control, transformer monitoring, and load shedding logic. The cable assembly’s EMI shielding is particularly valuable in high-voltage environments where electromagnetic interference is a constant concern.

Oil, Gas & Petrochemical: Process control systems in refineries and pipeline stations use RX3i for pressure, flow, and temperature regulation. In these safety-critical environments, a degraded backplane cable can trigger spurious shutdowns or mask genuine process alarms — making certified replacement components essential.

Water & Wastewater Treatment: Municipal water treatment facilities rely on RX3i for pump sequencing, chemical dosing, and SCADA-connected remote monitoring. The IC695CBL001A supports reliable multi-rack I/O expansion for large-scale pump station control panels.

Mining & Metallurgy: In ore processing and smelting operations, RX3i systems manage conveyor drives, crusher controls, and furnace temperature loops. The physical robustness of a factory-terminated cable assembly is critical in environments with high vibration and thermal cycling.

Packaging & Food Processing: High-speed packaging lines require deterministic I/O scan performance. The IC695CBL001A maintains the backplane communication integrity that allows the CPU to execute motion coordination and safety interlock logic without scan overruns.

Product Compatibility FAQ

Q1: Is the IC695CBL001A compatible with all PACSystems RX3i expansion chassis configurations?
The IC695CBL001A is designed specifically for the PACSystems RX3i platform and is compatible with standard RX3i expansion chassis configurations including the IC695CHS012 and IC695CHS016. It should be used only with GE-specified rack combinations to ensure backplane bus integrity. If you are unsure about compatibility with a specific rack layout, our technical team can verify the configuration before shipment.

Q2: How does a degraded cable assembly affect system performance, and how can I identify it?
A degraded IC695CBL001A typically manifests as intermittent I/O module faults, backplane communication errors logged in the CPU fault table, or unexplained scan cycle overruns. In some cases, the system may appear to operate normally under light load but exhibit errors during high-throughput scan cycles. Physical inspection for bent connector pins, cracked shielding, or loose terminations is the first diagnostic step. Replacing the cable with a certified IC695CBL001A is the recommended corrective action when physical damage is confirmed or suspected.

Q3: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
Every IC695CBL001A shipped by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes continuity testing, connector integrity verification, and shielding resistance checks to confirm it meets GE’s original specification. If a unit fails within the warranty period under normal use, we provide replacement or full refund. Our global logistics network supports fast DHL/FedEx delivery to minimize system downtime.
