GE IC695CDEM002 Industrial Network Interface for PACSystems RX3i Systems

GE IC695CDEM002 Industrial Network Interface for PACSystems RX3i Systems: Bridging Field Devices and Smart Factory Data Flows

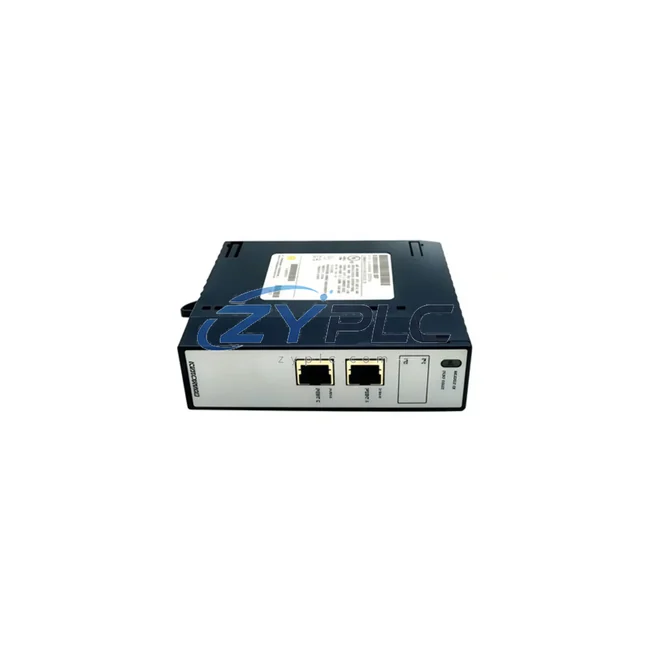

The GE IC695CDEM002 is a dual-port Ethernet Communication Module engineered for the GE PACSystems RX3i platform, delivering high-speed, protocol-rich connectivity between field-level devices and upper-layer control and monitoring systems. Designed for demanding industrial environments, the IC695CDEM002 enables seamless data exchange across Modbus TCP, EtherNet/IP, and SRTP protocols — making it a critical node in any smart factory network architecture where real-time visibility, remote diagnostics, and system scalability are non-negotiable.

In modern industrial automation, the ability to move data reliably from sensors and actuators through PLCs, remote I/O, HMIs, SCADA platforms, and edge gateways defines the competitive edge of a production facility. The IC695CDEM002 sits at the heart of this data chain, ensuring that every signal captured at the field level reaches the right system at the right time — without latency, packet loss, or protocol mismatch.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC695CDEM002 operates as the Ethernet backbone of the PACSystems RX3i rack, enabling structured data flow from the lowest field device layer to enterprise-level systems. In a typical smart factory deployment, the data journey begins at the sensor and actuator layer — pressure transmitters, flow meters, proximity switches, and temperature sensors — all feeding raw process values into the RX3i backplane via analog and digital I/O modules such as the IC200ALG260 (analog input) and IC200MDL740 (discrete output).

These field signals are processed by the IC695CPE400 or IC695CPE310 CPU modules, which execute the control logic and pass structured data packets to the IC695CDEM002 for network transmission. The module’s dual Ethernet ports allow simultaneous connection to both the plant-floor device network and the supervisory control network — eliminating the need for external switches in smaller topologies while supporting integration with managed industrial Ethernet switches in larger architectures.

For remote I/O expansion across distributed production lines, the IC695CDEM002 works in conjunction with the IC695PNC001 PROFINET Controller module, enabling the RX3i system to communicate with remote I/O stations, variable frequency drives, and servo controllers over a deterministic PROFINET network. This combination supports sub-millisecond cycle times for motion-critical applications while maintaining full Ethernet/IP visibility for SCADA polling.

At the HMI layer, operator panels and touchscreens connect directly to the IC695CDEM002 via Modbus TCP or EtherNet/IP, pulling real-time tag values for display on process mimics, trend screens, and alarm dashboards. The IC695CMX128 communications coprocessor can be deployed alongside the IC695CDEM002 to offload serial protocol conversion tasks — bridging legacy Modbus RTU devices, PROFIBUS DP instruments, and DeviceNet nodes into the unified Ethernet data fabric.

Power integrity across the RX3i rack is maintained by the IC695PSD140 power supply module, which provides stable 24 VDC rail voltage to all communication and I/O modules including the IC695CDEM002. For applications requiring redundant power architectures, the RX3i platform supports dual power supply configurations, ensuring that network communication is never interrupted by a single power rail failure.

At the SCADA and MES integration layer, the IC695CDEM002 exposes all PLC data tags as Modbus TCP registers or EtherNet/IP CIP objects, allowing SCADA servers, historian platforms, and OPC-UA gateways to subscribe to real-time process data without custom middleware. Edge computing nodes and industrial IoT gateways can connect directly to the IC695CDEM002’s Ethernet ports, enabling local data preprocessing, anomaly detection, and cloud forwarding — completing the data chain from field sensor to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, and upper-layer systems operate in disconnected protocol silos, preventing real-time visibility and coordinated control. The IC695CDEM002 directly addresses this challenge through its multi-protocol Ethernet architecture.

Legacy production lines often combine equipment from multiple vendors, each communicating over incompatible protocols: Modbus RTU on serial links, PROFIBUS DP on legacy fieldbus, and proprietary Ethernet variants on newer drives and sensors. The IC695CDEM002, combined with the IC695CMX128 coprocessor, acts as a protocol gateway — translating between these legacy communication layers and the unified Ethernet/IP and Modbus TCP fabric of the PACSystems RX3i network. This eliminates the need for standalone protocol converters and reduces network complexity.

For remote monitoring and diagnostics, the IC695CDEM002 supports SRTP-based communications with GE’s Proficy Machine Edition programming environment, enabling engineers to perform online program monitoring, force I/O values, and execute remote firmware updates without physical access to the control panel. This capability is critical for geographically distributed facilities, offshore installations, and unmanned substations where on-site intervention is costly or impractical.

Production line transparency — the ability to see real-time OEE metrics, cycle counts, alarm histories, and energy consumption data — is achieved by mapping PLC internal registers to SCADA-accessible Modbus TCP addresses through the IC695CDEM002. Plant managers gain live dashboards without requiring PLC program modifications, and maintenance teams receive automatic alarm notifications when process variables exceed defined thresholds.

System scalability is built into the IC695CDEM002’s dual-port design. As production capacity grows, additional RX3i racks, remote I/O stations, and network segments can be added without replacing the communication infrastructure. The module supports up to 32 simultaneous Ethernet connections, accommodating multiple SCADA clients, HMI panels, and programming workstations concurrently — ensuring that network expansion never becomes a bottleneck to operational growth.

Industrial Connectivity FAQ

Q1: What communication protocols does the IC695CDEM002 support, and is it compatible with third-party SCADA systems?
The IC695CDEM002 supports Modbus TCP, EtherNet/IP (CIP), and SRTP protocols. It is fully compatible with any SCADA, HMI, or historian platform that supports these standard industrial Ethernet protocols, including Wonderware, iFIX, Ignition, and Inductive Automation systems. No proprietary drivers or middleware are required for standard Modbus TCP or EtherNet/IP integration.

Q2: How does the IC695CDEM002 handle network stability in high-noise industrial environments?
The module is designed to operate in environments with significant electromagnetic interference, vibration, and temperature variation. Its dual-port architecture supports network redundancy configurations, and the RJ45 ports support auto-negotiation and full-duplex operation to minimize collision-related latency. For maximum network stability, it is recommended to use shielded Cat5e or Cat6 Ethernet cables and managed industrial Ethernet switches with IGMP snooping enabled.

Q3: Can the IC695CDEM002 be used to expand an existing PACSystems RX3i system without reprogramming the CPU?
Yes. The IC695CDEM002 is hot-insertion capable in supported RX3i rack configurations, and its Modbus TCP and EtherNet/IP interfaces can be accessed by external systems without modifying the existing CPU program. New SCADA clients or HMI panels can connect to the module’s Ethernet ports and begin polling data immediately using standard register mapping — making system expansion non-disruptive to ongoing production.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing performed?
Every IC695CDEM002 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including power-on self-test, Ethernet port communication verification, and protocol handshake validation. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Units are shipped in anti-static packaging with full traceability documentation. For warranty claims or technical support, contact our team directly.
