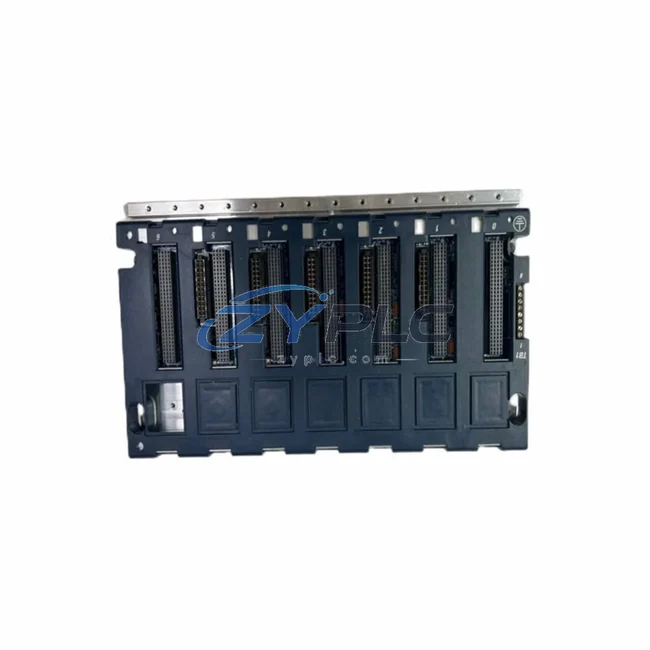

GE IC695CHS007 Backplane for RX3i Systems

GE IC695CHS007 Industrial Network Interface for RX3i Systems: The Backbone of Smart Factory Data Connectivity

In modern industrial automation, seamless data flow between field devices, controllers, and supervisory systems is the foundation of operational efficiency. The GE IC695CHS007 — a 7-slot universal backplane for the PACSystems RX3i platform — serves as the central communication hub that binds together the entire control architecture. Whether you are integrating field-level sensors, remote I/O modules, variable frequency drives, or enterprise-level SCADA systems, the IC695CHS007 provides the structural and electrical backbone that enables reliable, high-speed industrial network communication across every layer of your smart factory.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC695CHS007 backplane is engineered to support a complete industrial data chain — from signal acquisition at the field level all the way to real-time monitoring and remote diagnostics at the supervisory level. At the heart of the architecture, a CPU module such as the IC695CPE305 or the higher-performance IC695CPE310 occupies the dedicated CPU slot on the IC695CHS007, executing control logic and managing all inter-module communication over the high-speed backplane bus.

Analog and digital signals from field instruments — pressure transmitters, flow meters, temperature sensors, and proximity switches — are collected through I/O modules like the IC695ALG600 analog input module or the IC200ALG264, which feed real-time process data directly into the controller via the backplane. This deterministic data path eliminates the latency and packet loss risks associated with external fieldbus wiring, ensuring that the CPU receives accurate, time-stamped process values for every scan cycle.

For network communication and protocol conversion, the IC695ETM001 EtherNet/IP and Modbus TCP communication module slots into the IC695CHS007 alongside the CPU, enabling the RX3i system to exchange data with upstream SCADA platforms, MES systems, and cloud-based industrial IoT gateways. In facilities where legacy PROFIBUS devices remain in service, the IC695PBM300 PROFIBUS master module can be installed in one of the universal slots, acting as a protocol gateway that bridges older field devices — including third-party variable frequency drives and remote I/O stations — into the modern EtherNet/IP network fabric.

Remote I/O expansion is handled through the IC695NIU001 network interface unit, which allows distributed I/O racks to communicate with the main IC695CHS007-based controller over standard industrial Ethernet, extending the control system’s reach across large plant floors without running dedicated backplane cables. HMI panels connected via the IC695CMX128 communication module provide operators with real-time visualization of process variables, alarm states, and equipment status — all sourced directly from the RX3i backplane data bus.

Power integrity across the entire backplane is maintained by the IC695PSD040 DC power supply module, which delivers regulated, noise-filtered power to every module installed in the IC695CHS007 chassis. In multi-rack configurations, the IC200CPUE05 VersaMax CPU can serve as a remote I/O controller, communicating with the main RX3i rack over EtherNet/IP and feeding distributed process data back through the IC695CHS007 backplane for centralized processing and SCADA reporting.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A typical plant may operate GE PACSystems RX3i controllers alongside legacy Modbus RTU devices, third-party PROFIBUS drives, and modern OPC-UA-capable edge gateways — each speaking a different protocol, creating data silos that prevent unified monitoring and control.

The IC695CHS007, as the universal backplane for the RX3i platform, directly addresses this challenge by providing a flexible, multi-slot architecture that accommodates protocol gateway modules, communication bridges, and I/O adapters within a single chassis. By installing the appropriate communication modules — EtherNet/IP, PROFIBUS, or serial gateway cards — engineers can consolidate data from heterogeneous field devices into a single, unified data stream accessible to SCADA and MES systems.

Remote monitoring and diagnostics are equally critical in modern smart factory deployments. With the IC695CHS007 supporting CPU modules that offer built-in OPC-UA server functionality, maintenance teams can access live PLC data, fault logs, and diagnostic registers from any networked workstation or mobile device — without requiring physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by enabling continuous, remote health monitoring of the entire control system.

Production line transparency is further enhanced through SCADA integration. By routing real-time backplane data through the IC695ETM001 Ethernet module to a SCADA server, plant managers gain full visibility into cycle times, throughput rates, energy consumption, and equipment utilization — enabling data-driven decisions that improve OEE and reduce unplanned downtime. The IC695CHS007’s universal slot design also future-proofs the installation: as production requirements evolve, additional I/O, communication, or specialty modules can be added to vacant slots without replacing the backplane or rewiring the control cabinet.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC695CHS007 support?
The IC695CHS007 itself is a universal backplane and does not process protocols independently — protocol support is determined by the CPU and communication modules installed in its slots. With modules such as the IC695ETM001, the RX3i system supports EtherNet/IP, Modbus TCP, and SRTP. Adding the IC695PBM300 enables PROFIBUS DP master communication. OPC-UA is available through compatible CPU firmware versions.

Q2: How does the IC695CHS007 ensure network stability in demanding industrial environments?
The IC695CHS007 is designed to IEC 61131 industrial standards, with a robust backplane bus architecture that provides deterministic, noise-immune communication between all installed modules. The universal backplane supports hot-standby CPU redundancy configurations when paired with compatible RX3i redundancy modules, ensuring continuous operation even during module failures or network disruptions.

Q3: Can the IC695CHS007 integrate with existing SCADA and HMI systems?
Yes. The RX3i platform built on the IC695CHS007 backplane is fully compatible with major SCADA and HMI platforms including GE iFIX, Wonderware, Ignition, and Siemens WinCC via standard OPC-DA/OPC-UA or Modbus TCP drivers. The IC695ETM001 communication module provides the Ethernet gateway interface required for SCADA connectivity.

Q4: What warranty and testing standards apply to the IC695CHS007?
Every IC695CHS007 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Testing includes backplane bus integrity verification, slot continuity checks, and power rail validation to ensure the unit performs to GE PACSystems RX3i specifications upon arrival. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize project lead times.
