GE IC695CHS012-CA Backplane for RX3i: Compatibility and Replacement Notes

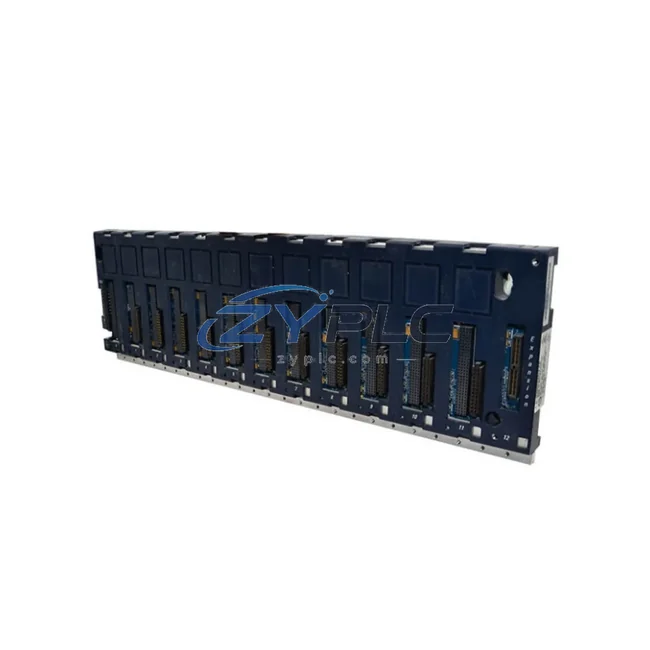

The GE IC695CHS012-CA is a 12-slot universal backplane engineered for GE Intelligent Platforms PACSystems RX3i control systems. Far from being a passive mounting structure, this backplane functions as the central nervous system of a layered automation architecture — defining slot capacity, module communication pathways, power distribution topology, and system expansion boundaries. In any serious industrial control deployment, the backplane selection determines the ceiling of what the entire control system can achieve in terms of I/O density, redundancy depth, and long-term maintainability.

The IC695CHS012-CA variant carries a conformal coating designation (-CA suffix), making it specifically suited for environments where condensation, airborne contaminants, or corrosive atmospheres are present — common conditions in coastal manufacturing plants, chemical processing facilities, water treatment stations, and offshore installations. This coating does not alter the electrical or communication performance of the backplane but significantly extends its operational lifespan in harsh environments, reducing unplanned downtime and maintenance intervention frequency.

Within the PACSystems RX3i platform, the IC695CHS012-CA accommodates up to 12 modules across a unified high-speed backplane bus. This bus architecture supports both legacy Series 90-30 I/O modules and native RX3i modules simultaneously, enabling phased migration strategies without requiring a full system replacement. Engineers can retain existing IC693MDL655 discrete input modules or IC693ALG222 analog output modules while introducing newer IC695 series modules — a critical advantage for brownfield projects where capital expenditure must be distributed across multiple budget cycles.

At the control layer, the IC695CHS012-CA interfaces directly with CPU modules such as the IC695CPE302 or IC695CPE400, which serve as the primary processing engines for the RX3i rack. These CPUs communicate with all installed I/O and specialty modules through the backplane bus at high scan rates, ensuring deterministic control loop execution. When paired with the IC695PSD040 or IC695PSA040 power supply modules, the backplane delivers stable, regulated power across all 12 slots, with sufficient headroom for mixed analog and digital I/O configurations.

For applications requiring high availability, the IC695CHS012-CA supports redundant CPU configurations when used alongside the IC695CRU320 CPU Redundancy Unit. In this architecture, a secondary CPU module monitors the primary in real time, enabling bumpless transfer upon fault detection — a requirement in power generation, oil and gas pipeline control, and continuous process manufacturing where even a brief control interruption carries significant operational or safety consequences.

At the network and communications layer, the backplane hosts Ethernet and fieldbus communication modules such as the IC695ETM001 Ethernet interface or IC695PBM300 PROFIBUS Master module. These modules allow the RX3i rack to participate in plant-wide SCADA networks, communicate with distributed I/O nodes, or interface with third-party drives and instrumentation using standard industrial protocols. The IC695CHS012-CA’s slot architecture ensures that communication modules can be positioned optimally within the rack without compromising power distribution or signal integrity.

Human-machine interface integration is achieved through Ethernet-connected HMI panels or SCADA workstations that communicate with the CPU over the IC695ETM001 network interface. Operators gain real-time visibility into process variables, alarm states, and system diagnostics without requiring physical access to the control cabinet — a key advantage for remote or hazardous installations. The backplane’s role in this layer is to ensure that the CPU and communication modules share a stable, low-latency data exchange environment.

At the I/O layer, the 12 available slots can be populated with a combination of IC695MDL664 discrete output modules, IC695ALG600 analog input modules, IC695ALG704 analog output modules, and specialty function modules such as motion control or high-speed counter cards. This flexibility allows a single IC695CHS012-CA rack to serve as a complete standalone controller for mid-complexity processes, or as a primary rack in a multi-rack system connected via the IC695CMM002 serial communications module or expansion backplane cables.

From a system engineering perspective, the IC695CHS012-CA simplifies cabinet layout by consolidating control, I/O, power, and communications into a single 12-slot chassis. This reduces wiring complexity, minimizes potential failure points, and accelerates commissioning timelines. Maintenance engineers benefit from the module hot-swap capability supported by the RX3i platform, allowing individual I/O or communication modules to be replaced without powering down the entire rack — a significant operational advantage in 24/7 production environments.

Long-term inventory planning for the IC695CHS012-CA is straightforward given its continued availability as a standard PACSystems RX3i component. Stocking a spare backplane alongside critical CPU and power supply modules ensures that mean time to repair (MTTR) targets can be met even in the event of catastrophic rack failure. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification and full documentation support.

Product Specification Table

System Compatibility Notes

A complete PACSystems RX3i control system built around the IC695CHS012-CA typically integrates the following coordinated components across multiple system layers:

At the processing core, the IC695CPE302 or IC695CPE400 CPU module occupies the leftmost slots of the backplane, executing ladder logic, function block, or structured text programs at deterministic scan rates. The IC695PSD040 DC power supply or IC695PSA040 AC power supply provides regulated voltage to all installed modules, with sufficient current capacity for fully populated 12-slot configurations including analog-heavy I/O mixes.

For redundant architectures, the IC695CRU320 CPU Redundancy Unit is installed alongside the primary CPU, enabling automatic failover without process interruption. Network connectivity is provided by the IC695ETM001 Ethernet module, which supports EtherNet/IP and SRTP protocols for SCADA integration and peer-to-peer CPU communication. In PROFIBUS-based plant networks, the IC695PBM300 PROFIBUS DP Master module extends the RX3i rack’s reach to distributed I/O nodes, variable frequency drives, and smart instrumentation across the production floor.

I/O population within the IC695CHS012-CA rack commonly includes IC695MDL664 16-point discrete output modules for motor starter and solenoid valve control, IC695ALG600 8-channel analog input modules for process variable acquisition (pressure, temperature, flow), and IC695ALG704 analog output modules for control signal generation to positioners and variable speed drives. Terminal block assemblies and marshalling panels connect field wiring to these modules, completing the signal chain from sensor to actuator.

Industrial Application Notes

The IC695CHS012-CA finds application across a broad range of industrial sectors where reliable, scalable, and maintainable control architecture is a non-negotiable requirement.

In power generation and electrical utilities, the backplane serves as the foundation for turbine governor control, transformer protection relay integration, and substation automation systems. The conformal coating (-CA) variant is particularly valued in outdoor switchgear enclosures and coastal substations where humidity and salt air accelerate corrosion on unprotected electronics.

In oil and gas processing, the IC695CHS012-CA supports wellhead control panels, pipeline SCADA RTU configurations, and compressor station automation. The redundant CPU capability ensures that safety-critical control loops remain active during planned maintenance or unexpected CPU faults, meeting SIL-rated system requirements when combined with appropriate safety I/O modules.

In water and wastewater treatment, the backplane controls pump sequencing, chemical dosing systems, and filtration process automation. Its compatibility with both legacy Series 90-30 I/O and modern RX3i modules allows water utilities to modernize control systems incrementally, preserving existing field wiring investments while gaining access to advanced diagnostics and remote monitoring capabilities.

In manufacturing and packaging lines, the IC695CHS012-CA coordinates conveyor control, vision system integration, reject mechanisms, and production counting — all within a single rack that communicates upstream to MES systems via Ethernet and downstream to servo drives and pneumatic actuators via discrete and analog I/O.

In mining and metallurgical processing, the conformal-coated backplane withstands the dust, vibration, and temperature cycling inherent to crusher control, conveyor drive management, and flotation cell automation, delivering consistent performance across multi-year operational cycles without requiring board-level cleaning or recoating.

Product Compatibility FAQ

Q1: Can the IC695CHS012-CA be used as an expansion rack in a multi-chassis RX3i system?
Yes. The IC695CHS012-CA can function as either a primary CPU rack or a remote expansion rack within a PACSystems RX3i multi-chassis configuration. When used as an expansion rack, it connects to the primary rack via the IC695CMM002 serial communications module or through Ethernet-based distributed I/O configurations. Each expansion rack operates as a logical extension of the primary CPU’s I/O map, maintaining deterministic scan performance across the full system. This architecture is commonly used in large process plants where I/O points are distributed across multiple physical locations within the same control zone.

Q2: Is the IC695CHS012-CA (-CA conformal coated variant) electrically and functionally identical to the standard IC695CHS012?
Yes. The -CA suffix denotes the application of a conformal coating to the PCB assembly, providing protection against moisture, dust, and chemical vapors in accordance with IPC-CC-830 Class AR standards. All electrical specifications, slot assignments, module compatibility, and backplane bus performance are identical between the IC695CHS012 and IC695CHS012-CA. Engineers specifying the -CA variant for harsh environment installations do not need to modify their I/O configuration, CPU program, or network settings — the coating is a manufacturing-level enhancement that does not affect system behavior or integration requirements.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the IC695CHS012-CA?
All IC695CHS012-CA units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm backplane bus integrity, slot connectivity, and physical condition. For long-term spare parts planning, ZYPLC supports RFQ sourcing for IC695CHS012-CA alongside complementary RX3i components including CPU modules, power supplies, and communication cards, enabling customers to source complete rack assemblies or individual replacement components from a single supplier. For procurement inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
