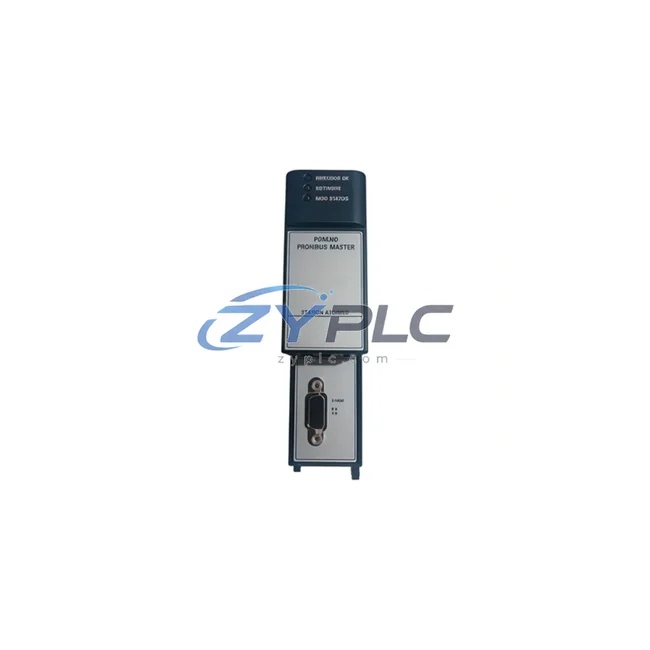

GE IC695PBM300LT PROFIBUS Master Module for RX3i Systems

GE IC695PBM300LT: Industrial Data Link and Smart Factory Connectivity for RX3i Systems

In modern smart manufacturing environments, seamless data flow between field devices, PLC controllers, remote I/O, HMI panels, SCADA platforms, drives, sensors, and supervisory systems is the backbone of operational efficiency. The GE IC695PBM300LT PROFIBUS Master Module is engineered to serve as a high-performance industrial network interface within the GE PACSystems RX3i control architecture, enabling reliable, deterministic PROFIBUS DP communication across complex automation networks. Whether you are integrating legacy field instrumentation into a modern IIoT-ready control system or expanding an existing PROFIBUS segment, the IC695PBM300LT delivers the protocol conversion, network stability, and real-time data throughput that industrial sites demand.

The IC695PBM300LT operates as a Class 1 PROFIBUS DP master, supporting up to 125 slave devices per segment and data transfer rates up to 12 Mbps. It mounts directly into the RX3i universal backplane, communicating with the CPU over the high-speed RX3i backplane bus. This tight integration with the PACSystems RX3i CPU — such as the IC695CPE400 or IC695CPE310 — ensures that PROFIBUS network data is exchanged with the controller at scan-cycle speed, eliminating latency bottlenecks that can compromise process control integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC695PBM300LT sits at the center of a layered industrial communication architecture. At the field level, PROFIBUS DP slaves — including distributed I/O modules such as the IC200ALG260 analog input module and VersaMax remote I/O stations — transmit real-time process values: temperature readings from RTD sensors, pressure signals from 4–20 mA transmitters, and discrete status bits from proximity switches and safety relays. The IC695PBM300LT polls these slaves cyclically, aggregating field data and delivering it to the RX3i CPU over the backplane bus within a single scan cycle.

At the controller level, the RX3i CPU — paired with the IC695ETM001 Ethernet module — bridges the PROFIBUS field network to the plant Ethernet backbone. This allows SCADA systems and HMI panels to access live PROFIBUS data without requiring direct network access to the field segment, preserving network segmentation and cybersecurity boundaries. The IC695PNS001 PROFINET Scanner module can operate in parallel within the same RX3i chassis, enabling simultaneous PROFIBUS DP and PROFINET IO communication — a critical capability for sites transitioning from legacy PROFIBUS infrastructure to modern PROFINET-based architectures.

Drive integration is another key application. Variable frequency drives (VFDs) equipped with PROFIBUS DP adapters connect directly to the IC695PBM300LT network segment, allowing the RX3i CPU to issue speed references, read actual speed feedback, and monitor drive fault status — all within the deterministic PROFIBUS scan cycle. This eliminates the need for separate analog wiring between the controller and each drive, reducing installation cost and improving diagnostic transparency.

For power system monitoring, the IC695PSD140 power supply module within the RX3i chassis provides stable 24 VDC backplane power, ensuring that the IC695PBM300LT and co-resident modules such as the IC695CMM004 serial communications module maintain uninterrupted operation even during load transients. The IC695CMM004 can simultaneously handle Modbus RTU or DNP3 serial communication with legacy meters and RTUs, while the IC695PBM300LT manages the PROFIBUS DP field network — enabling a single RX3i chassis to serve as a multi-protocol gateway hub.

At the supervisory level, SCADA platforms such as iFIX, Wonderware, or Ignition connect to the RX3i via the IC695ETM001 Ethernet module using OPC DA/UA or SRTP protocols. HMI panels mounted at operator stations display real-time PROFIBUS network data — valve positions, motor currents, tank levels — with alarm annunciation driven directly by diagnostic data returned by the IC695PBM300LT from slave devices. Remote diagnostic access is supported through the RX3i CPU’s built-in web server and the Proficy Machine Edition programming environment, allowing engineers to interrogate PROFIBUS slave diagnostics, view network topology, and resolve faults without physical site visits.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with fragmented automation islands: PROFIBUS field networks that cannot communicate with Ethernet-based SCADA systems, legacy PLCs that lack modern diagnostic capabilities, and remote I/O stations that generate data with no path to the control room. The IC695PBM300LT directly addresses these data isolation challenges by providing a standards-compliant PROFIBUS DP master interface within the RX3i platform, which natively supports Ethernet, serial, and PROFINET communication in the same chassis.

Protocol unification is achieved by pairing the IC695PBM300LT with the RX3i CPU’s multi-protocol communication stack. Field devices speaking PROFIBUS DP — including third-party sensors, actuators, and drives from Siemens, ABB, Schneider Electric, and other vendors — are fully accessible to the RX3i controller and, by extension, to any SCADA or MES system connected to the plant network. This eliminates the need for standalone protocol converters or gateways, reducing hardware complexity and single points of failure.

Production line transparency is enhanced through the IC695PBM300LT’s comprehensive diagnostic reporting. Slave device faults, communication errors, and network topology changes are reported to the RX3i CPU in real time, enabling SCADA alarm management systems to generate actionable alerts rather than generic communication failure messages. This granularity of diagnostic data accelerates mean time to repair (MTTR) and supports predictive maintenance workflows by identifying degrading PROFIBUS connections before they cause unplanned downtime.

System expansion is straightforward: additional PROFIBUS slave devices can be added to the network segment up to the 125-device limit without modifying the RX3i hardware configuration. The IC695PBM300LT’s GSD-file-based slave configuration, managed through Proficy Machine Edition, allows new devices to be commissioned and integrated into the control program with minimal engineering effort, supporting phased plant expansion and equipment upgrades.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the IC695PBM300LT, and does it affect SCADA data latency?
The IC695PBM300LT supports PROFIBUS DP data rates from 9.6 Kbps up to 12 Mbps, with the rate automatically negotiated based on cable length and network topology. At 12 Mbps, cycle times for a fully loaded 125-slave network are typically under 10 ms, ensuring that SCADA and HMI systems receive updated process values within one to two RX3i CPU scan cycles — well within the latency tolerance of most process control and monitoring applications.

Q2: Is the IC695PBM300LT compatible with third-party PROFIBUS DP slave devices from other manufacturers?
Yes. The IC695PBM300LT is fully compliant with the EN 50170 / IEC 61158 PROFIBUS DP standard and supports any certified PROFIBUS DP slave device, including those from Siemens, ABB, Phoenix Contact, Pepperl+Fuchs, and other major automation vendors. Slave configuration is performed using the device’s GSD file within Proficy Machine Edition, ensuring interoperability across multi-vendor PROFIBUS networks.

Q3: How does the IC695PBM300LT support remote diagnostics and network fault isolation?
The module provides detailed slave diagnostic data to the RX3i CPU, including station status, module status, and user-defined diagnostic bytes from DP-V1 slaves. This data is accessible via the RX3i CPU’s Ethernet port to SCADA systems and remote engineering workstations running Proficy Machine Edition, enabling engineers to identify and isolate PROFIBUS network faults — including cable breaks, slave power failures, and configuration mismatches — without requiring physical access to the field panel.

Q4: What warranty and pre-shipment testing does the IC695PBM300LT include?
Every IC695PBM300LT unit supplied by ZYPLC includes a warranty terms confirmed during quotation covering hardware defects and communication failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm PROFIBUS DP master operation, backplane communication integrity, and diagnostic reporting functionality. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for integration and commissioning queries.
