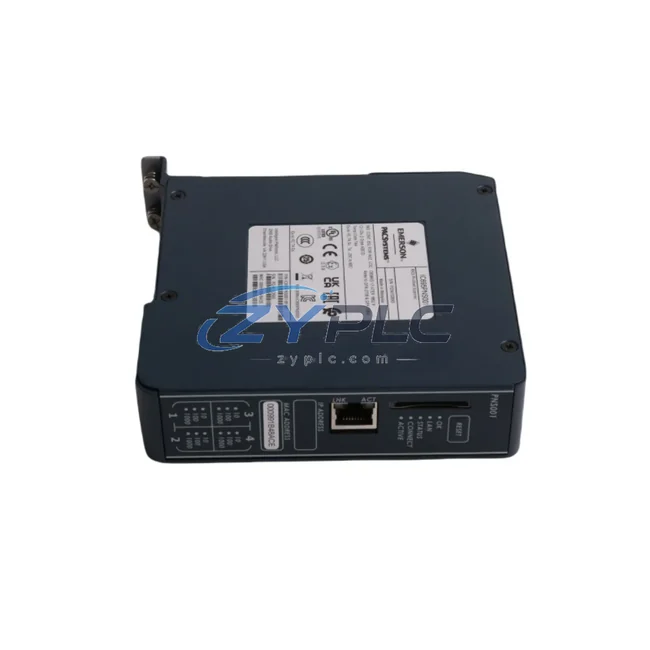

GE IC695PNS001CA-ABAH PROFINET Scanner for RX3i

GE IC695PNS001CA-ABAH PROFINET Scanner for RX3i

The GE IC695PNS001CA-ABAH is a high-performance PROFINET IO Scanner module engineered for seamless integration within the PACSystems RX3i distributed control architecture. Rather than functioning as a standalone peripheral, this module occupies a critical position in the network communication layer of a fully coordinated automation system — bridging the deterministic PROFINET IO field network with the RX3i CPU backplane, enabling real-time cyclic data exchange between field devices and the central control logic.

In modern industrial automation, the reliability of a control system is determined not by any single component, but by the coherence of the entire architecture. The IC695PNS001CA-ABAH is designed with this principle at its core. It supports up to 128 PROFINET IO devices per scanner instance, with configurable update rates that align with the scan cycle of the PACSystems RX3i CPU — such as the IC695CPE330 or IC695CPE400 — ensuring that field-level data arrives at the controller with minimal latency and maximum determinism. This tight coupling between the network layer and the control layer is what enables engineers to build systems with predictable, auditable signal flow from sensor to actuator.

The module installs directly into the Universal Backplane of the RX3i rack system — compatible with both the IC695CHS012 (12-slot) and IC695CHS016 (16-slot) chassis — and draws its operating power from the rack-mounted power supply, such as the IC695PSA040 or IC695PSD040. This eliminates the need for external power conditioning and simplifies cabinet layout in space-constrained control panels. The backplane communication interface ensures that the scanner’s I/O data tables are directly mapped into the CPU’s memory, supporting both implicit (cyclic) and explicit (acyclic) PROFINET communication modes.

From a system architecture perspective, the IC695PNS001CA-ABAH serves as the gateway between the control layer and the I/O layer. On the field side, it communicates with PROFINET-capable remote I/O stations, variable frequency drives, servo amplifiers, smart sensors, and safety modules. On the controller side, it presents a transparent data interface to the RX3i CPU, allowing the application program — developed in Proficy Machine Edition — to read and write I/O data using standard reference addresses without requiring custom communication function blocks. This system integration capability dramatically reduces engineering time during commissioning and simplifies long-term maintenance.

Redundancy is a key consideration in critical process environments. The IC695PNS001CA-ABAH supports system-level redundancy strategies when paired with the IC695RMX128 redundancy memory xchange module and a secondary RX3i CPU rack. In such configurations, the PROFINET network topology can be designed with media redundancy protocol (MRP) ring structures, ensuring that a single cable fault does not interrupt field communication. This architecture is particularly valuable in power generation, oil and gas, and water treatment applications where unplanned downtime carries significant operational and safety consequences.

The module’s diagnostic capabilities further enhance system maintainability. It provides detailed device-level and port-level diagnostics accessible through the RX3i CPU’s fault table, enabling maintenance engineers to identify communication faults, device substitutions, or configuration mismatches without requiring a laptop connection at the field device. Integration with Proficy Plant Applications or third-party SCADA systems via the IC695ETM001 Ethernet module allows these diagnostics to be surfaced at the HMI or operations center level, closing the loop between the field network layer and the human-machine interface layer.

For applications requiring high I/O density, the IC695PNS001CA-ABAH can be deployed alongside additional RX3i I/O modules — including the IC694MDL654 discrete input module, IC694MDL754 discrete output module, and IC694ALG220 analog input module — within the same rack, allowing engineers to mix local and distributed I/O within a single coherent system architecture. This flexibility supports phased expansion strategies, where additional PROFINET devices can be added to the network without modifying the existing rack configuration or CPU program structure.

Inventory availability and supply chain continuity are critical factors in long-term system support. ZYPLC maintains dedicated stock of the IC695PNS001CA-ABAH to support both new system builds and emergency replacement scenarios. All units are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification to ensure that every module arrives ready for installation. Global logistics support enables delivery to manufacturing facilities, power plants, and process sites across Asia, Europe, the Middle East, and the Americas.

Product Specification Table

System Compatibility Notes

The IC695PNS001CA-ABAH achieves its full potential when deployed as part of a coordinated RX3i control system. At the CPU layer, it operates in conjunction with processors such as the IC695CPE330 or IC695CPE400, which provide the scan cycle management and memory mapping that underpin deterministic PROFINET communication. The rack power infrastructure — supplied by the IC695PSA040 or IC695PSD040 — ensures stable backplane voltage across all installed modules, including the scanner, CPU, and any co-resident I/O modules.

At the I/O layer, the scanner manages communication with remote PROFINET IO stations that may host discrete modules equivalent to the IC694MDL654 or IC694MDL754, as well as analog modules such as the IC694ALG220, distributed across the production floor or process area. At the network layer, the IC695ETM001 Ethernet module provides the upstream connection to the plant network, enabling integration with Proficy HMI/SCADA, MES platforms, and remote monitoring systems. At the human-machine interface layer, operator panels and industrial PCs running Proficy iFIX or Cimplicity receive real-time process data routed through the RX3i CPU, with the PROFINET scanner serving as the foundational data acquisition layer. At the execution layer, PROFINET-connected variable frequency drives, servo systems, and smart actuators receive setpoints and return status data through the scanner’s cyclic communication channels, completing the closed-loop control architecture.

Industrial Application Notes

The IC695PNS001CA-ABAH is deployed across a wide range of industrial sectors where PROFINET-based distributed control is the preferred architecture. In discrete manufacturing and automotive assembly, it manages communication with robot controllers, conveyor drive systems, and vision inspection stations, providing the network backbone for high-speed production lines. In power generation and electrical utilities, it integrates with protection relay systems and switchgear controllers within substation automation architectures, where communication reliability and diagnostic transparency are non-negotiable requirements.

In oil and gas processing and petrochemical facilities, the module supports PROFINET communication in hazardous area control systems, where remote I/O stations installed in Ex-rated enclosures must maintain continuous communication with the central control room. In water and wastewater treatment plants, it coordinates pump station control, valve actuation, and flow measurement across geographically distributed PROFINET segments. In mining and metallurgical processing, it provides the network communication layer for crusher control systems, conveyor drive networks, and smelter process control architectures. In food and beverage packaging lines, it enables high-speed coordination between filling machines, labeling systems, and end-of-line palletizers, all communicating over a single PROFINET IO network managed by the RX3i CPU.

Product Compatibility FAQ

Q1: How many IC695PNS001CA-ABAH modules can be installed in a single RX3i rack, and how does this affect system I/O capacity?
Multiple IC695PNS001CA-ABAH modules can be installed in the same RX3i rack, subject to available slot count and backplane power budget. Each scanner independently manages up to 128 PROFINET IO devices, so deploying two scanners in a single rack effectively doubles the distributed I/O capacity of the system without requiring an additional CPU or rack. This approach is commonly used in large-scale process control systems where I/O point counts exceed the capacity of a single PROFINET network segment.

Q2: Is the IC695PNS001CA-ABAH compatible with third-party PROFINET IO devices, and what conformance class is supported?
Yes. The IC695PNS001CA-ABAH supports PROFINET IO Conformance Class B, which is the most widely adopted conformance class for industrial field devices. This ensures compatibility with PROFINET-certified devices from major manufacturers across drive, sensor, safety, and remote I/O product families. Device integration is managed through GSDML files imported into Proficy Machine Edition, allowing the scanner to be configured for any certified PROFINET IO device without custom programming.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system commissioning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair provided at no additional cost within the warranty period. All units supplied by ZYPLC undergo pre-shipment functional verification to confirm backplane communication integrity and PROFINET port operation. Technical support for system commissioning — including configuration guidance for Proficy Machine Edition, GSDML file management, and network topology design — is available through ZYPLC’s engineering team. Contact: +86 19859288691 | plc.sales@zyplc.com
