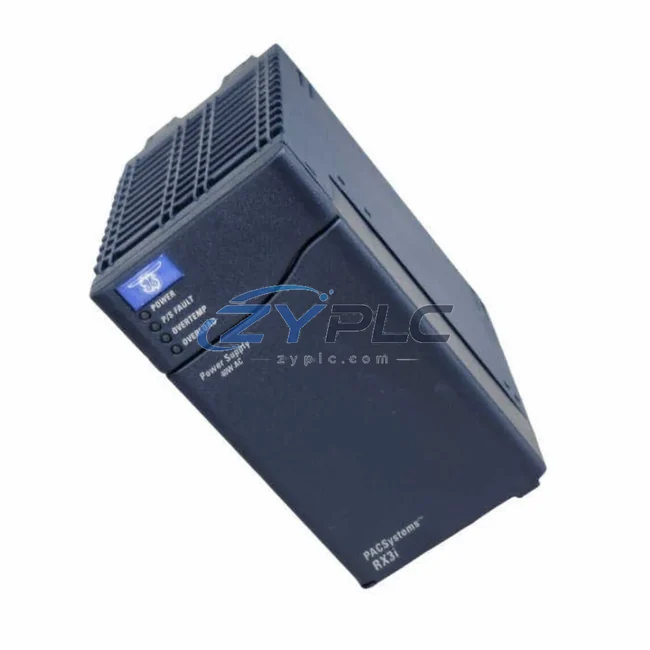

GE IC695PSA140 Power Supply Module for PACSystems RX3i

GE IC695PSA140: Industrial Data Link Power Foundation for PACSystems RX3i Smart Factory Networks

The GE IC695PSA140 is a high-reliability 120/240VAC input, 40W output power supply module engineered for the PACSystems RX3i control platform. In modern smart factory environments, stable and conditioned power delivery is not merely a utility function — it is the backbone of every data transaction across the automation network. From field-level sensor nodes to enterprise SCADA dashboards, the IC695PSA140 ensures that every controller, communication module, and I/O subsystem in the RX3i rack operates within precise voltage tolerances, eliminating the power-induced noise and brownout conditions that corrupt industrial protocol frames and trigger false alarms in production lines.

Deployed across discrete manufacturing, process control, oil & gas, water treatment, and automotive assembly applications, the IC695PSA140 anchors the RX3i backplane with consistent DC bus power, enabling co-resident modules such as the IC695ETM001 Ethernet communications module and the IC695PBM300 PROFIBUS master module to maintain deterministic cycle times and low-latency data exchange with upstream SCADA systems and HMI terminals.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated PACSystems RX3i architecture, the IC695PSA140 powers the entire rack ecosystem through which industrial data flows continuously. Consider a typical smart factory cell: field-mounted Yokogawa EJA110E differential pressure transmitters and Turck BI5-G18-AP6X proximity sensors feed 4–20mA and discrete signals into IC694MDL660 digital input modules and IC695ALG600 analog input modules seated in the same RX3i chassis. The IC695PSA140 delivers clean, regulated DC power to each of these I/O modules, ensuring signal integrity at the point of acquisition.

The acquired process data is then processed by the IC695CPE330 CPU module — a dual-core RX3i controller capable of executing ladder logic, function block diagrams, and structured text programs at sub-millisecond scan rates. The CPU communicates upstream via the IC695ETM001 Ethernet module, transmitting real-time production KPIs, alarm states, and recipe parameters over a managed industrial Ethernet switch — such as the Hirschmann RS20 or Moxa EDS-308 — to a Wonderware System Platform SCADA server or a GE iFIX HMI workstation.

For sites requiring PROFIBUS integration with legacy drives and valve positioners, the IC695PBM300 PROFIBUS master module — also powered by the IC695PSA140 — bridges the RX3i controller to Siemens SINAMICS G120 variable frequency drives and ABB TZID-C positioners on the DP network segment. Serial legacy devices connect through the IC695CMM002 serial communications module, enabling Modbus RTU polling of older energy meters and flow computers without requiring hardware replacement.

At the edge, an Advantech ECU-1251 edge gateway aggregates data from multiple RX3i racks via OPC-UA, forwarding normalized datasets to cloud-based MES platforms and IIoT analytics engines. Throughout this entire data chain — from sensor to cloud — the IC695PSA140 provides the foundational power stability that makes deterministic, low-jitter communication possible across every protocol layer.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with fragmented automation islands: legacy PLCs running proprietary protocols, standalone HMI panels with no network connectivity, and SCADA systems that cannot reach field devices without manual data entry. The GE IC695PSA140, as the power foundation of the PACSystems RX3i platform, enables a systematic approach to dissolving these data silos.

By powering a fully populated RX3i rack — including Ethernet, PROFIBUS, and serial communication modules simultaneously — the IC695PSA140 allows a single controller chassis to act as a multi-protocol gateway hub. Modbus RTU devices on the plant floor can be polled by the IC695CMM002, their data normalized by the IC695CPE330 CPU, and then published via Ethernet/IP or OPC-UA to the SCADA layer. This eliminates the need for standalone protocol converters and reduces network topology complexity.

For production line transparency, the RX3i system powered by the IC695PSA140 supports high-speed data logging to historian servers, enabling trend analysis, OEE calculation, and predictive maintenance algorithms to run on live process data. Remote diagnostic capabilities — including online program monitoring, force table access, and fault table interrogation via GE’s Proficy Machine Edition programming software — allow maintenance engineers to diagnose and resolve faults without physical site visits, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System expansion is equally straightforward: additional RX3i racks can be connected via the IC695RMX128 rack interconnect cable, and the IC695PSA140’s 40W output supports full rack population with mixed I/O and communication modules, providing a scalable path from a single-rack starter system to a multi-rack distributed control architecture without controller replacement.

Industrial Connectivity FAQ

Q1: Does the IC695PSA140 support real-time Ethernet/IP communication without additional modules?
The IC695PSA140 is a power supply module and does not itself implement communication protocols. However, it provides the regulated DC power required by co-resident communication modules such as the IC695ETM001 Ethernet module, which supports Ethernet/IP, SRTP, and Modbus TCP with deterministic cycle times suitable for real-time SCADA and HMI integration.

Q2: Is the IC695PSA140 compatible with both 120VAC and 240VAC plant power systems?
Yes. The IC695PSA140 accepts a wide-range AC input of 120/240VAC at 47–63 Hz, making it suitable for deployment in North American, European, and Asian industrial facilities without requiring a separate step-down transformer or power conditioning unit.

Q3: How does the IC695PSA140 contribute to network stability in multi-protocol RX3i installations?
Power supply noise and voltage ripple are primary causes of communication errors in industrial networks. The IC695PSA140’s regulated 40W output maintains tight DC bus voltage across all backplane slots, preventing the voltage transients that cause CRC errors in PROFIBUS DP frames, TCP retransmissions in Ethernet/IP connections, and parity errors in Modbus RTU polling cycles. Stable power directly translates to stable network communication.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC695PSA140?
All IC695PSA140 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including input voltage range verification, output voltage and ripple measurement, and backplane connector integrity inspection. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, configuration, and system integration queries.
