GE IC695PSD040 PLC Power Supply for RX3i

GE IC695PSD040 PLC Power Supply for RX3i Automation

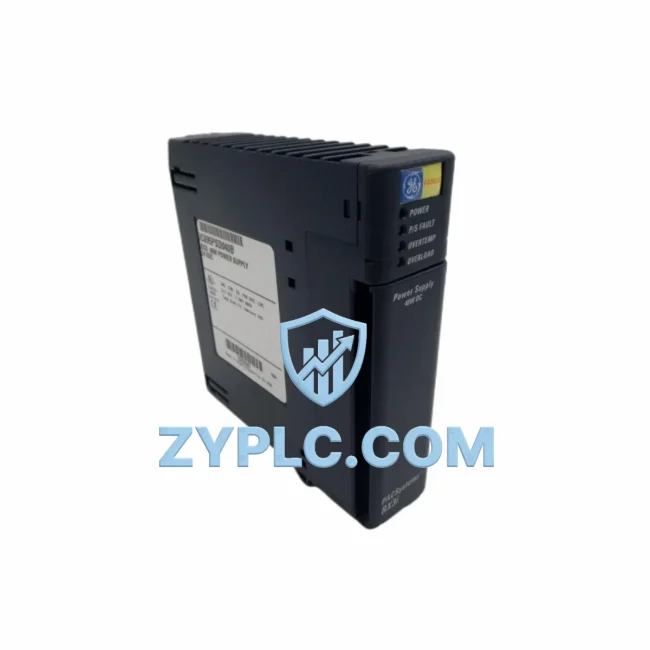

The GE IC695PSD040 is a high-efficiency DC power supply module engineered for the GE PACSystems RX3i platform — one of the most widely deployed industrial control architectures in discrete manufacturing, process automation, and energy-intensive production environments. Rated at 40W output with a wide-range DC input, the IC695PSD040 is purpose-built to minimize power conversion losses while sustaining stable, uninterrupted voltage delivery to the RX3i backplane and all connected I/O and CPU modules.

In modern production lines where energy costs are a measurable operational variable, the power supply module is often overlooked as a source of efficiency gain. The IC695PSD040 challenges that assumption. Its high power conversion efficiency reduces heat dissipation within the control cabinet, lowering the thermal load on cooling systems and extending the service life of adjacent components — including the IC695CPU320 and IC695CPU315 CPUs that govern real-time control logic across the RX3i rack.

Product Specification Table

System Compatibility and Application

The IC695PSD040 does not operate in isolation — its efficiency contribution is amplified when integrated within a well-designed RX3i automation architecture. In a typical maintenance-focused control system, the power supply feeds a backplane populated with modules such as the IC695ALG600 analog input module for real-time process variable acquisition, and the IC695MDL654 discrete output module for actuator control. These modules, when powered by a stable and efficient supply like the IC695PSD040, maintain tighter signal integrity and reduce the risk of spurious outputs that waste energy through unnecessary actuator cycling.

On the drive side, the RX3i platform commonly interfaces with GE AF-650GP variable frequency drives (VFDs) via PROFINET or Ethernet/IP communication. The IC695PSD040-powered CPU executes speed reference commands to the VFD, enabling precise motor speed regulation that eliminates the unplanned downtime associated with fixed-speed motor operation. In pump and fan applications, this alone can help restore stable operation when a compatible replacement is required.

For condition monitoring at the field level, the RX3i system integrates with GE Multilin 850 feeder protection relays and GE Multilin EPM 6000 power quality meters via Modbus TCP or DNP3. These devices feed real-time kWh, power factor, and harmonic distortion data back to the IC695CPU through the IC695ETM001 Ethernet communications module, enabling the PLC to make closed-loop maintenance planning decisions — such as load shedding during peak demand periods or adjusting drive ramp rates to minimize inrush current.

The IC695PBM300 PROFIBUS master module extends the RX3i’s reach to field-level devices including smart motor starters, distributed I/O racks, and maintenance-focused sensors. When combined with the IC695RMX128 redundancy memory exchange module in high-availability configurations, the system maintains continuous control without the energy-wasting restart cycles associated with unplanned downtime. HMI visualization through GE Proficy iFIX or compatible SCADA platforms provides operators with real-time energy dashboards, enabling proactive intervention before inefficiencies compound into measurable losses.

Maintenance and Replacement Notes

In automotive body shop applications, the IC695PSD040 powers RX3i racks controlling resistance welding sequences, conveyor indexing, and robotic cell interlocking. By maintaining stable backplane voltage under dynamic load conditions — where CPU scan cycles, analog conversions, and high-speed counter modules all draw simultaneously — the IC695PSD040 prevents the micro-interruptions that force production line resets and waste both time and energy.

In food and beverage processing, where continuous operation is critical and energy costs are directly tied to throughput efficiency, the IC695PSD040 supports RX3i systems managing CIP (Clean-In-Place) sequencing, temperature control loops, and packaging line synchronization. The module’s low standby power draw ensures that during scheduled production pauses, the control system remains energized without contributing unnecessarily to facility energy overhead.

Predictive maintenance integration is another area where the IC695PSD040’s reliability pays dividends. Because the power supply maintains consistent output voltage across its full load range, condition monitoring systems — such as vibration sensors connected through IC695ALG616 analog input modules — receive clean, stable excitation signals. This improves the accuracy of FFT-based bearing fault detection algorithms running in the CPU, reducing false positives that would otherwise trigger unnecessary maintenance interventions and associated production downtime.

All units supplied by ZYPLC undergo functional load testing prior to shipment, verifying output voltage stability, ripple performance, and thermal behavior under rated conditions. Each IC695PSD040 is backed by a 12-month warranty, with in-stock inventory available for same-day or next-business-day dispatch to minimize production line downtime exposure.

Product Sourcing FAQ

Q1: How does the IC695PSD040 contribute to factory operational stability compared to a standard power supply?
The IC695PSD040’s high conversion efficiency (up to 88%) means less input power is wasted as heat. In control cabinets running 24/7, this reduces both direct operating load and the secondary load on air conditioning or forced-air cooling systems, compounding the savings over annual operating hours.

Q2: Is the IC695PSD040 compatible with all GE PACSystems RX3i backplane configurations?
Yes. The IC695PSD040 is designed for the RX3i universal backplane and is compatible with all standard RX3i rack sizes (4-slot through 16-slot). It operates alongside other RX3i power supply modules in redundant configurations and is fully compatible with IC695CPU310, IC695CPU315, IC695CPU320, and IC695CPU330 processors.

Q3: What is the recommended replacement or upgrade path if my existing RX3i power supply is failing?
The IC695PSD040 is a direct form-fit-function replacement for other 40W DC input RX3i power supplies. No backplane modification or CPU reconfiguration is required. ZYPLC recommends verifying input voltage compatibility (18–30V DC) before installation and performing a cold-start test after replacement to confirm stable backplane voltage before resuming production.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every IC695PSD040 supplied by ZYPLC is tested under load conditions that simulate real RX3i backplane demand. The 12-month warranty covers functional failure under normal operating conditions, including output voltage deviation, failure to power up, and thermal shutdown faults. Warranty claims are processed with priority turnaround to minimize customer downtime impact.
