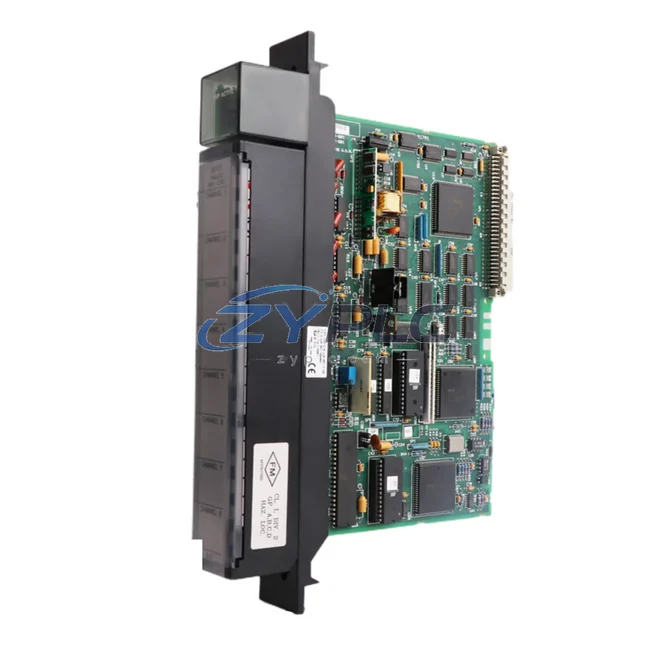

GE IC697ALG230 Analog Input Module for Series 90-70

GE IC697ALG230 Analog Input Module for Series 90-70

The GE Fanuc IC697ALG230 is a high-density analog input module engineered for seamless integration within the Series 90-70 programmable logic controller platform. Rather than functioning as a standalone component, the IC697ALG230 occupies a critical position within the layered control architecture — bridging the physical process environment and the CPU’s decision-making logic. In distributed manufacturing, power generation, petrochemical processing, and water treatment facilities, this module serves as the primary signal acquisition interface, converting real-world analog signals into structured digital data that the controller can act upon with precision and speed.

Within a complete Series 90-70 rack system, the IC697ALG230 is mounted alongside the IC697CPU772 or IC697CPU781 central processing unit, sharing the same backplane bus for deterministic data exchange. The module supports multiple analog input channels, enabling engineers to consolidate signal acquisition from temperature transmitters, pressure sensors, flow meters, and level transducers into a single rack slot — reducing wiring complexity and improving system maintainability. Its compatibility with the IC697CHS750 and IC697CHS782 rack chassis ensures that system architects can design both compact and expanded configurations without compromising signal integrity or scan cycle performance.

Product Specification Table

System Compatibility Notes

The IC697ALG230 achieves its full potential when deployed as part of a coordinated Series 90-70 control system. At the processing core, the IC697CPU772 or IC697CPU781 CPU module executes the ladder logic and function block programs that interpret the analog data delivered by the IC697ALG230. Power integrity across the rack is maintained by the IC697PWR711 or IC697PWR724 power supply module, which provides regulated DC voltage to all installed I/O modules, ensuring stable analog signal conversion without noise-induced drift.

For discrete control tasks running in parallel with analog acquisition, the IC697MDL340 digital input module and IC697MDL341 digital output module complement the IC697ALG230 within the same rack, allowing a unified scan cycle to process both analog measurements and discrete command signals. When the control architecture requires analog output — for example, to drive variable-speed drives, control valves, or proportional actuators — the IC697ALG320 analog output module is the natural pairing, completing the closed-loop signal chain from sensor to actuator.

Network-layer connectivity is handled by the IC697CMM742 communications coprocessor or the IC697BEM731 Bus Expansion Module, which extends the Series 90-70 rack across multiple physical locations or integrates the controller into a plant-wide Ethernet or Genius Bus network. For human-machine interface requirements, the system connects to GE QuickPanel or Cimplicity SCADA workstations, providing operators with real-time visibility into the analog process variables captured by the IC697ALG230. This end-to-end architecture — from field sensor through the IC697ALG230, across the backplane to the CPU, and up to the HMI — represents the system integration design philosophy that maximizes system coherence and minimizes engineering rework during commissioning and expansion.

Industrial Application Notes

In power generation and substation automation, the IC697ALG230 monitors transformer temperatures, bus voltages, and generator output currents, feeding real-time analog data to the Series 90-70 CPU for protective relay logic and load-balancing algorithms. The module’s optical isolation ensures that high-voltage transients on the field side do not propagate into the control backplane, protecting the entire rack from electrical disturbances common in switchgear environments.

In petrochemical and refinery process control, the IC697ALG230 interfaces with 4–20mA transmitters measuring reactor temperatures, column pressures, and flow rates. Its 16-channel capacity allows a single module to cover an entire process unit’s analog instrumentation, reducing the rack slot count and simplifying the bill of materials for greenfield and brownfield projects alike. Engineers in these environments particularly value the module’s deterministic scan behavior, which ensures that analog data is refreshed at consistent intervals regardless of CPU program complexity.

In water and wastewater treatment facilities, the IC697ALG230 collects signals from pH sensors, dissolved oxygen probes, turbidity meters, and pump discharge pressure transmitters. The module’s compatibility with the broader Series 90-70 ecosystem means that plant expansions — adding new treatment stages or monitoring points — can be accommodated by inserting additional I/O modules into existing rack chassis without replacing the CPU or reprogramming the communications infrastructure.

In mining and metallurgical operations, where environmental conditions are demanding and system uptime is critical, the IC697ALG230’s robust construction and proven field reliability make it a preferred choice for conveyor monitoring, crusher load measurement, and furnace temperature control. The warranty terms confirmed during quotation provided with every unit reflects the confidence in component quality and the commitment to long-term operational support that industrial end-users require.

Product Compatibility FAQ

Q1: Is the IC697ALG230 compatible with both the IC697CHS750 and IC697CHS782 rack chassis, and can it be mixed with other I/O modules in the same rack?
Yes. The IC697ALG230 is fully compatible with all standard Series 90-70 rack chassis, including the 5-slot IC697CHS750 and the 9-slot IC697CHS782. It can be installed in any I/O slot alongside digital input modules (IC697MDL340), digital output modules (IC697MDL341), and analog output modules (IC697ALG320) without slot-specific restrictions. The Series 90-70 CPU automatically identifies the module type during power-up configuration, simplifying rack assembly and reducing commissioning time.

Q2: How does the IC697ALG230 support system redundancy and long-term maintenance in critical process applications?
For high-availability architectures, the IC697ALG230 can be deployed in redundant rack configurations where a standby rack mirrors the primary rack’s I/O assignments. In the event of a primary module failure, the redundancy controller — typically managed by the IC697CPU781 with hot-standby firmware — switches I/O scanning to the standby module without interrupting the control program. For long-term maintenance, ZYPLC maintains a dedicated inventory of IC697ALG230 units, each covered by a warranty terms confirmed during quotation and tested against GE Fanuc factory acceptance criteria before shipment, ensuring that replacement modules integrate into existing systems without recalibration delays.

Q3: What is the recommended procedure for installing and calibrating the IC697ALG230 in an existing Series 90-70 system, and what tools are required?
Installation follows the standard Series 90-70 hot-insertion procedure where supported, or requires a controlled rack power-down for cold-swap installations. After physical installation, the Logicmaster 90-70 or Proficy Machine Edition programming software is used to configure the module’s channel assignments, input ranges, and scaling parameters. Calibration is performed via the software’s I/O configuration tool, which allows engineers to map raw A/D counts to engineering units (e.g., °C, bar, m³/h) without modifying the ladder logic program. ZYPLC’s technical support team is available to assist with system integration verification, ensuring the IC697ALG230 communicates correctly with the CPU and that analog data appears accurately in the HMI and historian systems.
