GE IC697CPM915 CPU Module for Series 90-70

GE IC697CPM915 CPU Module for Series 90-70

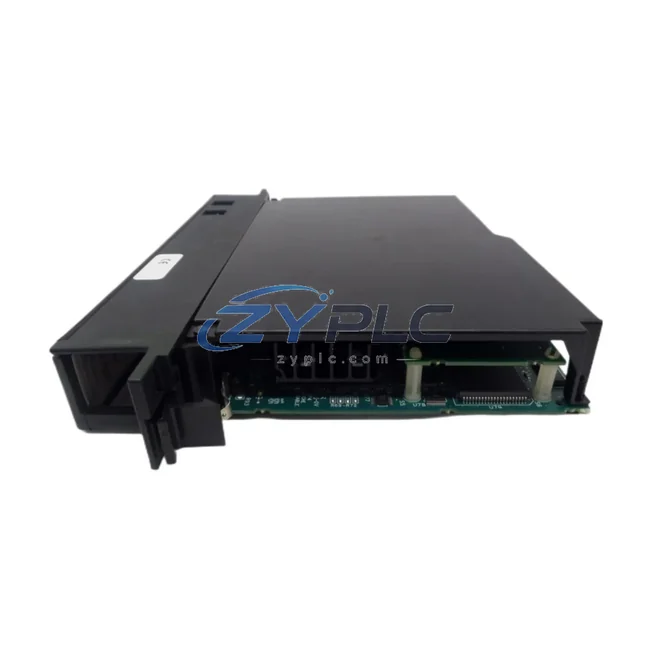

The GE IC697CPM915 is a high-performance CPU module engineered for deployment within the GE Series 90-70 programmable logic controller platform. Rather than functioning as a standalone component, the IC697CPM915 is designed to serve as the computational core of a fully integrated control system architecture — coordinating signal acquisition, logic execution, inter-module communication, and supervisory data exchange across every layer of the automation hierarchy. In distributed manufacturing environments, power generation facilities, petrochemical processing plants, and water treatment infrastructure, the IC697CPM915 provides the processing backbone that enables consistent, deterministic control across complex multi-loop and multi-zone applications.

Understanding the IC697CPM915 requires viewing it within the broader context of the Series 90-70 rack-based architecture. The module occupies a CPU slot within the IC697CHS750 or IC697CHS782 baseplate, drawing power from the IC697PWR711 or IC697PWR724 power supply module and communicating with co-resident I/O and specialty modules through the VME-based backplane bus. This tightly integrated design ensures that scan cycle timing, interrupt handling, and memory access remain synchronized across all installed modules, reducing latency and improving overall system determinism.

Product Specification Table

System Compatibility Notes

The IC697CPM915 achieves its full operational value when deployed as part of a coordinated Series 90-70 control system. At the I/O layer, discrete input modules such as the IC697MDL340 and IC697MDL341 feed field-level signals directly to the CPU via the backplane, while analog input modules like the IC697ALG230 provide process variable data for closed-loop control routines. On the output side, the IC697MDL940 discrete output module and IC697ALG320 analog output module translate CPU-generated commands into actuator signals, enabling precise control of valves, drives, and positioning systems.

For applications requiring network connectivity, the IC697CMM742 communications coprocessor module extends the Series 90-70 architecture to Ethernet-based supervisory networks, enabling integration with SCADA platforms, historian servers, and MES systems. In facilities where Genius Bus communication is preferred for distributed I/O, the IC697BEM731 Bus Controller Module manages the Genius Bus network, coordinating data exchange between the IC697CPM915 and remote I/O drops located throughout the plant floor.

Power integrity is maintained by the IC697PWR711 power supply, which delivers regulated 5 VDC and 24 VDC rails to all rack-mounted modules. In high-availability applications, a redundant power supply configuration using dual IC697PWR724 units ensures that a single power supply failure does not interrupt CPU operation. The IC697CHS750 baseplate accommodates this redundant power architecture while providing sufficient slot capacity for CPU, communications, and I/O modules within a single rack enclosure.

At the human-machine interface layer, the IC697CPM915 communicates with operator panels and HMI terminals through its RS-232 serial port, supporting SNP and SNPX protocols for real-time data exchange. This enables operators to monitor process variables, acknowledge alarms, and adjust setpoints without interrupting the CPU scan cycle. For larger installations, dedicated HMI servers connected via the IC697CMM742 Ethernet module provide web-based visualization and remote monitoring capabilities.

Industrial Application Notes

In manufacturing environments, the IC697CPM915 is commonly deployed in assembly line control systems where coordinated motion, conveyor sequencing, and quality inspection must operate in precise synchronization. The CPU’s deterministic scan cycle ensures that discrete I/O transitions are processed within defined time windows, preventing timing-related defects in high-speed production lines.

In power generation and electrical substation applications, the IC697CPM915 provides the logic processing core for generator excitation control, transformer protection relay coordination, and switchgear sequencing. Its robust operating temperature range and vibration tolerance make it suitable for installation in outdoor switchgear cabinets and substation control rooms where environmental conditions are demanding.

Petrochemical and refinery applications leverage the IC697CPM915 for continuous process control of distillation columns, heat exchangers, and reactor vessels. The module’s analog I/O integration capability, combined with the IC697ALG230 and IC697ALG320 modules, supports PID control loops that maintain critical process parameters within tight tolerances, ensuring product quality and process safety.

Water treatment and wastewater management facilities deploy the IC697CPM915 to automate pump sequencing, chemical dosing, filtration backwash cycles, and effluent monitoring. The module’s long-term availability and warranty terms confirmed during quotation support the extended operational lifecycles typical of municipal infrastructure projects, where system reliability over decades is a primary engineering requirement.

In mining and mineral processing operations, the IC697CPM915 controls conveyor systems, crusher sequencing, flotation cell management, and tailings pond monitoring. The module’s ability to handle large I/O point counts through rack expansion and remote I/O configurations makes it well-suited for geographically distributed mining operations where control points may be separated by significant distances.

Product Compatibility FAQ

Q1: Is the IC697CPM915 compatible with existing Series 90-70 baseplates and I/O modules already installed in my facility?
The IC697CPM915 is fully compatible with the Series 90-70 rack architecture, including IC697CHS750 and IC697CHS782 baseplates. It operates alongside existing Series 90-70 I/O modules, communications modules, and specialty function modules without requiring baseplate or wiring modifications. This backward compatibility makes the IC697CPM915 an ideal replacement CPU for aging or failed units in established installations, minimizing downtime and engineering rework during maintenance events.

Q2: What programming tools and communication protocols are required to commission the IC697CPM915 in a new or existing control system?
The IC697CPM915 is programmed using GE Proficy Machine Edition (ME) Logic Developer software, which supports Ladder Diagram, Function Block Diagram, and Structured Text programming languages. Initial configuration and program download are performed via the RS-232 serial port using the SNP or SNPX protocol. For networked installations, the IC697CMM742 Ethernet communications module enables TCP/IP-based programming and monitoring, allowing engineers to access the CPU from remote workstations without physical connection to the rack. All configuration parameters, I/O mapping, and communication settings are stored in non-volatile memory within the CPU module.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the IC697CPM915?
Every IC697CPM915 supplied by ZYPLC is covered by a warranty terms confirmed during quotation that includes functional testing, burn-in verification, and confirmation of all communication interfaces prior to shipment. The warranty covers defects in materials and workmanship under normal operating conditions. ZYPLC maintains dedicated inventory of Series 90-70 components — including CPU modules, power supplies, I/O modules, and communications processors — to support both immediate replacement needs and long-term maintenance planning. Our technical team provides pre-sales architecture consultation and post-sales commissioning support to ensure seamless system integration of the IC697CPM915 into your existing or new control system.
