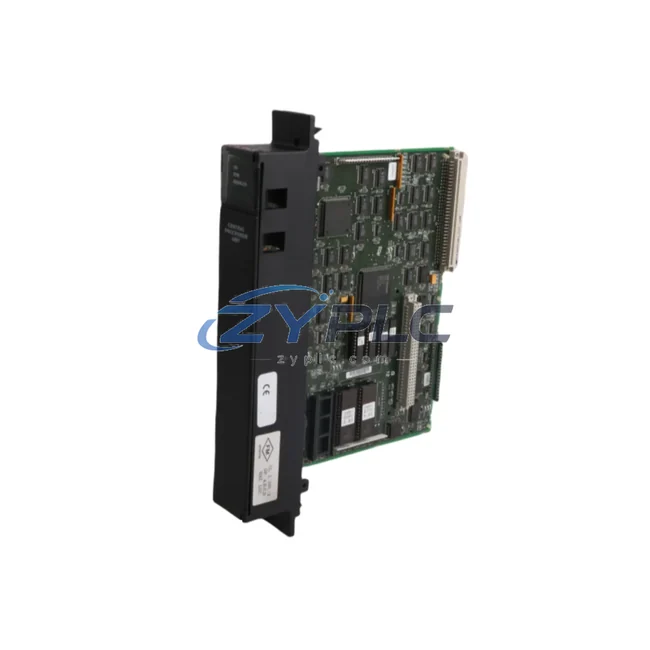

GE IC697CPU771 PLC CPU Module for Series 90-70 Systems

GE IC697CPU771: Industrial Data Link and Smart Factory Connectivity for Series 90-70 Systems

The GE IC697CPU771 is a high-performance CPU module engineered for the GE Fanuc Series 90-70 programmable logic controller platform — one of the most widely deployed industrial control architectures in process manufacturing, power generation, and discrete automation. Designed to serve as the central processing and communication hub within a distributed control network, the IC697CPU771 enables seamless data exchange across field devices, remote I/O stations, HMI terminals, SCADA systems, and enterprise-level supervisory platforms. Its robust multi-protocol support and deterministic scan cycle make it a foundational component in any smart factory connectivity strategy.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 90-70 installation, the IC697CPU771 sits at the heart of the control architecture, orchestrating data flow between every layer of the automation pyramid. At the field level, Genius I/O blocks — such as the IC660BBD024 discrete input block and IC660BBD025 discrete output block — connect directly to the Genius bus, transmitting real-time sensor states, valve positions, and actuator feedback to the CPU at deterministic scan intervals. This eliminates polling delays and ensures that the CPU always operates on current field data.

For analog signal acquisition — temperature loops, pressure transmitters, and flow meters — the IC697ALG230 analog input module feeds engineering-unit values directly into the CPU’s data tables via the VME backplane. These values are then processed through PID control blocks and forwarded upstream to CIMPLICITY HMI or third-party SCADA platforms via the IC697ETM001 Ethernet TCP/IP module, which supports SRTP and Modbus TCP communication for seamless integration with supervisory systems.

Remote I/O expansion is handled through the IC697BEM711 Bus Expansion Module, which extends the Genius bus to remote racks housing additional I/O modules, IC697MDL340 discrete output modules, and specialty communication cards. This architecture allows a single IC697CPU771 to manage hundreds of I/O points distributed across large plant floors without sacrificing scan performance or network determinism.

For drive integration, the IC697CPU771 communicates with GE AF-600 FP variable frequency drives through Modbus RTU or Genius bus adapters, enabling closed-loop speed control and real-time drive diagnostics from within the PLC program. Alarm conditions — overcurrent, overvoltage, thermal faults — are captured by the CPU and forwarded to the SCADA layer for operator notification and historical logging.

At the network edge, the IC697CMM711 communications coprocessor module extends the IC697CPU771’s connectivity to legacy serial devices, barcode readers, and third-party controllers using SNP, SNPX, and RTU protocols. This makes the IC697CPU771 an effective protocol gateway, bridging older field equipment into modern Ethernet-based supervisory networks without requiring hardware replacement. The result is a fully transparent data chain — from sensor to SCADA — that supports real-time monitoring, remote diagnostics, and production KPI reporting across the entire smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — field devices and control systems that operate in silos, unable to share process data with supervisory platforms or enterprise systems. The GE IC697CPU771 directly addresses this challenge through its multi-protocol architecture and modular communication expansion capability.

Sites running mixed-protocol environments — where Genius I/O devices coexist with Modbus RTU instruments, Ethernet-connected HMIs, and serial legacy controllers — can use the IC697CPU771 as a central protocol translation hub. By pairing the CPU with the IC697CMM711 coprocessor and IC697ETM001 Ethernet module, engineers can bridge all these protocols into a unified data namespace accessible from CIMPLICITY, iFIX, Wonderware, or any OPC-compatible SCADA platform.

For production line transparency, the IC697CPU771 supports structured data table mapping that allows SCADA systems to poll real-time production counts, cycle times, reject rates, and equipment status without interrupting PLC scan execution. This non-intrusive data access model is critical for MES integration and OEE (Overall Equipment Effectiveness) reporting in smart manufacturing environments.

Remote diagnostics are supported through the Ethernet interface, allowing maintenance engineers to monitor CPU health, fault logs, and I/O status from remote workstations or mobile devices — reducing unplanned downtime and enabling predictive maintenance workflows. System expansion is equally straightforward: additional I/O racks, communication modules, and specialty cards can be added to the Series 90-70 backplane without modifying the existing control program, protecting the investment in validated automation logic.

Every IC697CPU771 unit supplied by ZYPLC undergoes functional testing and communication verification prior to shipment, ensuring that the module performs to GE Fanuc specifications from day one. Availability confirmed by RFQ inventory enables rapid fulfillment for both planned upgrades and emergency replacement scenarios, with global shipping available to support international project timelines.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC697CPU771 support natively?
The IC697CPU771 natively supports the Genius I/O bus protocol and SNP/SNPX serial communication. Ethernet TCP/IP (SRTP, Modbus TCP) and additional serial protocols (Modbus RTU, RTU) are available by adding the IC697ETM001 Ethernet module or IC697CMM711 communications coprocessor to the same Series 90-70 rack.

Q2: Can the IC697CPU771 integrate with modern SCADA and HMI systems?
Yes. When paired with the IC697ETM001 Ethernet module, the IC697CPU771 communicates with SCADA platforms such as CIMPLICITY, iFIX, and Wonderware via SRTP or Modbus TCP. OPC server software can also be used to bridge the PLC data to any OPC-DA or OPC-UA compatible supervisory system, enabling full integration with modern industrial IoT and MES platforms.

Q3: How does the IC697CPU771 handle network stability and communication latency?
The Genius I/O bus operates on a deterministic token-passing protocol, guaranteeing fixed-interval data updates regardless of network load. The CPU’s scan cycle is configurable and isolated from communication overhead, ensuring that field I/O response times remain consistent even when SCADA polling or peer-to-peer messaging is active on the network.

Q4: What warranty and testing does ZYPLC provide for the IC697CPU771?
