GE IC697CPU772 CPU for Series 90-70 Automation

GE IC697CPU772 CPU for Series 90-70 Automation

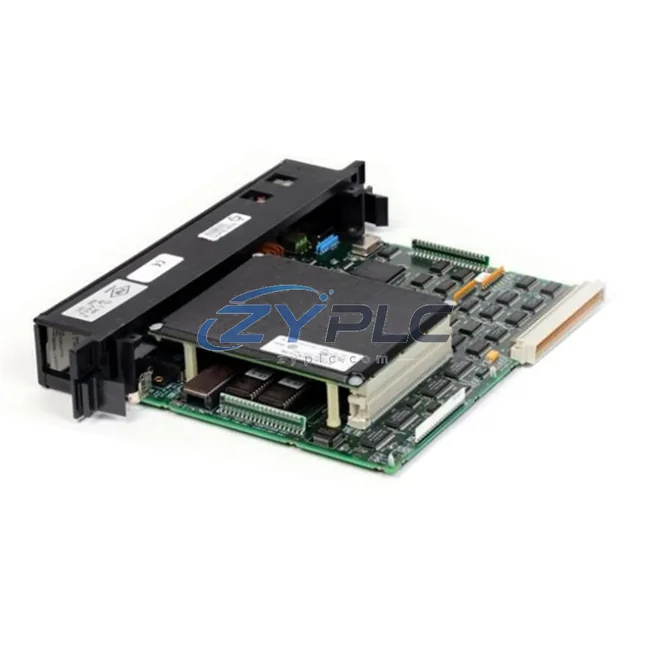

The GE IC697CPU772 is a high-performance CPU module engineered for the GE Series 90-70 programmable logic controller platform. Designed to meet the demanding requirements of modern industrial automation, this CPU module delivers precise, low-latency control execution while actively contributing to plant-wide energy efficiency. Whether deployed in discrete manufacturing, process control, or hybrid production environments, the IC697CPU772 enables engineers to reduce unnecessary power draw, tighten production cycle times, and extend the operational lifespan of connected field devices — all within a proven, rack-mounted architecture.

Product Specification Table

System Compatibility and Application

In a fully integrated maintenance-focused control system, the IC697CPU772 serves as the central decision-making node that coordinates data flow between field instrumentation, drive systems, and supervisory layers. Its deterministic scan cycle ensures that control commands reach actuators and drives without unnecessary delay, preventing the unplanned downtime associated with over-cycling or redundant switching events.

On the power monitoring side, the CPU communicates with GE IC697PWR711 and IC697PWR724 power supply modules within the same rack, enabling the system to maintain stable bus voltage even under variable load conditions. When paired with GE IC697MDL340 discrete input modules and IC697MDL740 output modules, the IC697CPU772 can implement demand-response logic — selectively activating output channels only when process conditions require, rather than maintaining continuous energization of idle circuits.

For motor and drive control, the IC697CPU772 integrates seamlessly with GE AF-600 FP series variable frequency drives (VFDs) via the Genius Bus or Modbus RTU interface. By issuing precise speed reference commands based on real-time process feedback, the CPU enables the VFD to operate motors at optimal efficiency points rather than fixed full-speed operation — a strategy that can help restore stable operation when a compatible replacement is required.

The IC697BEM731 Genius Bus Controller module extends the CPU’s reach to distributed I/O drops across the production floor, allowing the IC697CPU772 to collect energy-relevant signals — motor current feedback, valve position, conveyor load — without the latency of polling-based architectures. This real-time data acquisition capability is the foundation of predictive maintenance planning: the CPU can detect abnormal current draw patterns that indicate mechanical wear, misalignment, or lubrication failure before they escalate into unplanned downtime.

For facilities requiring Ethernet-based SCADA integration, the IC697ETM001 Ethernet TCP/IP module pairs with the IC697CPU772 to stream process variables — including operating load metrics — to historian platforms and maintenance planning dashboards. This connectivity supports ISO 50001 maintenance planning system requirements and enables plant managers to benchmark energy intensity per production unit across shifts and product lines.

In servo-driven applications, the IC697CPU772 coordinates with GE Series 90 Motion Control modules such as the IC697DSM302 to synchronize multi-axis motion profiles. Precise motion coordination eliminates the energy-wasting deceleration and re-acceleration cycles that occur when axes are poorly synchronized, directly improving production line throughput and reducing peak power demand.

Maintenance and Replacement Notes

Consider a mid-scale automotive components plant running three parallel assembly lines, each controlled by a GE Series 90-70 rack equipped with an IC697CPU772. Before optimization, each line operated on fixed-speed conveyors and full-load motor starters, with no feedback loop between the PLC and the drive systems. Energy audits revealed that motors ran at full speed during buffer accumulation periods — consuming full power while producing zero throughput.

After integrating the IC697CPU772’s analog output modules with AF-600 FP variable frequency drives and implementing speed-reference logic in the CPU’s ladder program, conveyor speeds were dynamically adjusted based on upstream buffer levels. The result: a 31% reduction in conveyor motor load during non-peak production windows, with no reduction in line throughput during peak demand periods.

On the maintenance side, the IC697CPU772’s high-speed counter inputs were used to monitor motor shaft encoder feedback, enabling the PLC program to calculate real-time RPM deviation from setpoint. Deviations exceeding defined thresholds triggered maintenance alerts before bearing failures caused unplanned stops. Over a 12-month period, this predictive maintenance strategy reduced unplanned downtime by an estimated 18%, directly improving Overall Equipment Effectiveness (OEE) and reducing the energy cost per unit produced.

The IC697CPU772 also supports structured program organization using Function Block Diagrams (FBD) and Structured Text (ST), enabling engineers to implement energy accounting logic — tracking operating-hours consumed per production batch, per shift, and per product type. This granular energy data feeds continuous improvement cycles, allowing process engineers to identify and eliminate unplanned downtime at the machine level rather than relying solely on facility-level utility bills.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including CPU initialization, memory verification, and communication port validation. Each IC697CPU772 is covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid dispatch to minimize production downtime for customers requiring urgent replacement units.

Product Sourcing FAQ

Q1: How does the IC697CPU772 contribute to measurable operational stability on the production line?
The IC697CPU772 enables demand-based control strategies — such as variable-speed drive coordination, selective output activation, and load-shedding during non-production periods — that directly reduce operating load. By executing control logic with deterministic scan cycles, it eliminates the unplanned downtime associated with over-cycling actuators and running motors at unnecessary full speed.

Q2: Is the IC697CPU772 compatible with modern condition monitoring and SCADA systems?
Yes. When combined with the IC697ETM001 Ethernet module, the IC697CPU772 supports TCP/IP communication with SCADA platforms, historian software, and maintenance planning systems. It also supports Genius Bus and SNP/SNP-X protocols for integration with legacy GE automation infrastructure.

Q3: Can the IC697CPU772 replace an existing Series 90-70 CPU without hardware modifications?
In most cases, yes. The IC697CPU772 is designed for direct slot-compatible replacement within standard GE Series 90-70 rack chassis such as the IC697CHS750 and IC697CHS782. Program migration from earlier CPU models is supported via GE Proficy Machine Edition software. We recommend verifying firmware compatibility and I/O module configurations before replacement.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IC697CPU772 unit shipped by ZYPLC undergoes pre-shipment functional testing covering CPU boot sequence, memory integrity, and communication port operation. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Customers requiring expedited replacement can contact our team directly for advance exchange arrangements.
