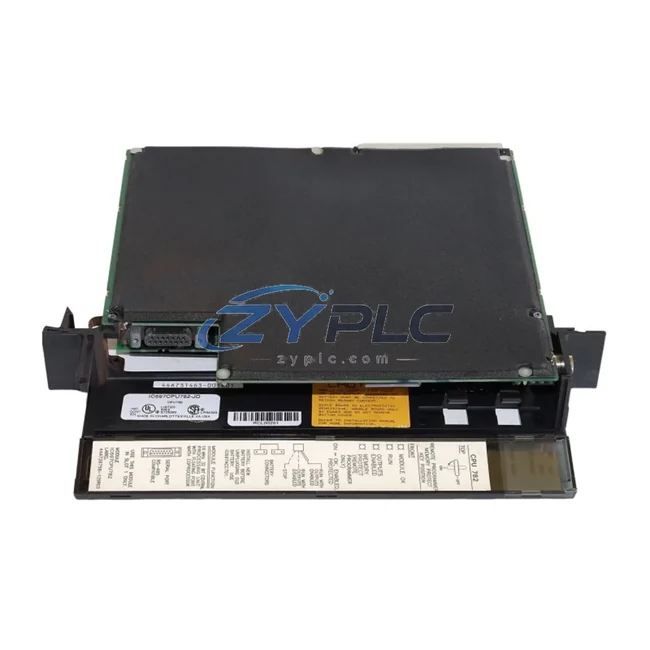

GE IC697CPU782 PLC CPU Module for Series 90-70 Systems

GE IC697CPU782 Industrial Network Interface for Series 90-70 Systems: Powering Smart Factory Data Links

The GE IC697CPU782 is a high-performance PLC CPU module engineered for the GE Fanuc Series 90-70 control platform, purpose-built to serve as the central intelligence node in demanding industrial network environments. As manufacturing sites evolve toward fully connected smart factory architectures, the IC697CPU782 delivers the processing power, communication bandwidth, and protocol flexibility required to bridge field-level devices with enterprise-level data systems — eliminating data silos and enabling real-time visibility across the entire production chain.

From signal acquisition at the sensor layer to data aggregation at the SCADA level, the IC697CPU782 anchors the data flow that modern industrial operations depend on. Its robust CPU architecture supports high-speed scan cycles, deterministic I/O response, and seamless integration with distributed control networks — making it an indispensable component in process automation, discrete manufacturing, energy management, and infrastructure control applications.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the GE IC697CPU782 operates as the central processing hub that orchestrates data movement across every layer of the automation pyramid. At the field level, analog and digital signals from pressure transmitters, flow meters, temperature sensors, and proximity switches are collected through GE IC697MDL340 discrete input modules and IC697ALG320 analog input modules mounted in the Series 90-70 rack. These raw signals are processed by the IC697CPU782 at deterministic scan rates, ensuring that control logic executes with microsecond-level precision.

For distributed I/O expansion across large plant floors, the IC697CPU782 communicates over the Genius Bus network with remote I/O blocks such as the IC660BBD024 and IC660BBD025 Genius Bus Controllers, extending the control reach to remote field panels without additional CPU overhead. This architecture allows a single IC697CPU782 to supervise hundreds of I/O points distributed across multiple production zones.

At the drive and motion layer, the IC697CPU782 interfaces with GE AF-600 FP variable frequency drives via Modbus RTU or Genius Bus, enabling closed-loop speed control, torque monitoring, and fault diagnostics to be managed directly from the PLC program. Drive status, current draw, and fault codes are continuously fed back to the CPU, where they are logged and forwarded upstream to the SCADA system.

For supervisory connectivity, the IC697CPU782 pairs with the IC697CMM742 Ethernet Communications Module, which provides TCP/IP connectivity to plant-level SCADA platforms including GE’s own Cimplicity HMI and third-party systems such as Ignition by Inductive Automation. Using the SRTP (Service Request Transport Protocol) or OPC DA/UA gateways, real-time process data — including alarm states, production counters, and energy consumption metrics — is streamed to the control room with sub-second latency.

Where legacy serial devices or third-party PLCs must be integrated into the network, protocol conversion gateways such as the ProSoft MVI56-MCM or Moxa MGate MB3180 Modbus-to-Ethernet gateways bridge the communication gap, allowing the IC697CPU782 to exchange data with equipment that does not natively support Genius Bus or SRTP. This multi-protocol capability is essential in brownfield installations where equipment from multiple generations and vendors must coexist on a unified data network.

At the edge computing layer, industrial edge gateways aggregate data from the IC697CPU782 and other PLCs, applying local analytics before forwarding summarized datasets to cloud-based MES or ERP platforms. This edge-to-cloud architecture reduces network bandwidth consumption while ensuring that critical control data remains available locally even during WAN outages.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, proprietary networks, and aging control systems. The GE IC697CPU782 directly addresses these challenges through its multi-protocol communication architecture and open integration capabilities.

Protocol Unification: Many industrial sites operate a mix of Genius Bus, Modbus RTU, and Ethernet-based devices that cannot communicate natively with one another. The IC697CPU782, combined with the IC697CMM742 Ethernet module and appropriate protocol gateways, creates a unified communication backbone that translates between these protocols transparently — eliminating the need for manual data entry or custom middleware solutions.

Breaking Down Data Silos: When field devices, PLCs, and SCADA systems operate in isolation, production managers lack the real-time visibility needed to optimize throughput, detect anomalies, or respond to equipment faults before they escalate into unplanned downtime. The IC697CPU782’s high-speed scan cycle and deterministic I/O processing ensure that data from every connected device is captured, processed, and made available to supervisory systems within a single scan cycle — typically under 10 milliseconds for standard I/O configurations.

Remote Monitoring and Diagnostics: Through its Ethernet connectivity and SRTP protocol support, the IC697CPU782 enables remote access to PLC program status, I/O diagnostics, and fault logs without requiring physical presence at the control panel. Maintenance engineers can monitor system health, download updated ladder logic, and acknowledge alarms from any networked workstation — dramatically reducing mean time to repair (MTTR) and enabling predictive maintenance strategies.

Production Line Transparency: By integrating the IC697CPU782 with Cimplicity or Ignition SCADA, production managers gain real-time dashboards showing OEE (Overall Equipment Effectiveness), cycle times, reject rates, and energy consumption — all derived from live PLC data. This transparency enables data-driven decisions that improve yield, reduce waste, and support continuous improvement initiatives.

Scalable System Expansion: The Series 90-70 rack architecture supports up to 12 modules per rack and multiple racks per Genius Bus segment, allowing the IC697CPU782 to scale from small standalone applications to large multi-zone plant-wide control systems without requiring a CPU upgrade. As production capacity grows, additional I/O modules, communication modules, and remote I/O drops can be added incrementally — protecting the initial capital investment.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC697CPU782 support, and is it compatible with modern SCADA systems?
The IC697CPU782 natively supports Genius Bus, SNP, SNP-X, and serial Modbus RTU. When paired with the IC697CMM742 Ethernet Communications Module, it gains TCP/IP connectivity and SRTP support, enabling direct integration with SCADA platforms such as GE Cimplicity, iFIX, Ignition, and WinCC via OPC DA/UA. This makes the IC697CPU782 fully compatible with both legacy and modern supervisory systems.

Q2: How does the IC697CPU782 ensure network stability and deterministic data transmission in high-noise industrial environments?
The IC697CPU782 is designed for industrial-grade reliability, featuring a hardened backplane interface, noise-immune Genius Bus communication, and a deterministic scan cycle that guarantees consistent I/O response times regardless of network load. The Genius Bus protocol includes built-in error detection and retry mechanisms, ensuring data integrity even in electrically noisy environments such as motor control centers and high-voltage switchgear rooms.

Q3: Can the IC697CPU782 be integrated into an existing multi-vendor automation network without replacing other equipment?
Yes. The IC697CPU782 supports multi-protocol communication through optional communication modules and third-party protocol gateways, allowing it to coexist with PLCs and devices from Siemens, Allen-Bradley, Mitsubishi, and other vendors on the same network. Modbus RTU/TCP gateways and OPC servers provide the translation layer needed to integrate the IC697CPU782 into mixed-vendor SCADA and MES environments without requiring replacement of existing field devices.

Q4: What quality assurance and warranty coverage is provided with the GE IC697CPU782?
Every IC697CPU782 unit supplied by ZYPLC undergoes comprehensive pre-shipment functional testing, including power-on verification, communication port testing, and I/O scan cycle validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified hardware fault within the warranty period, ZYPLC provides replacement or repair at no additional cost. Stock is maintained for fast global dispatch via DHL or FedEx, with typical lead times of 3–7 business days.
