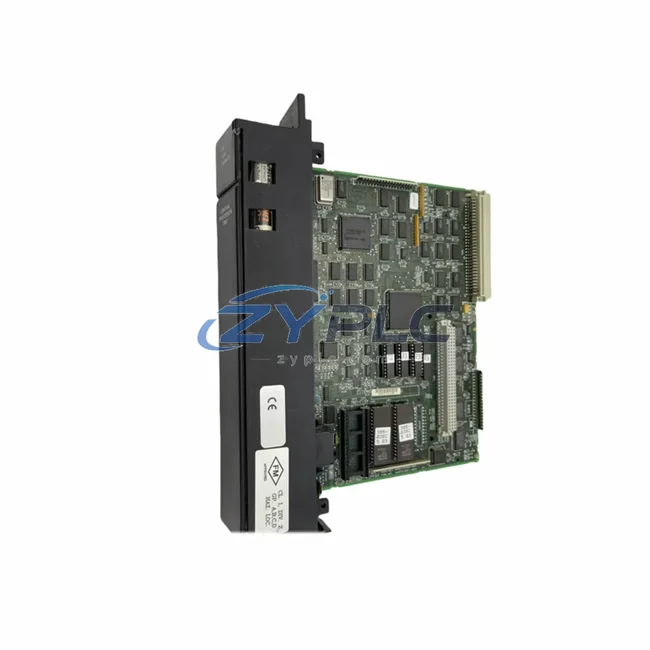

GE IC697CPU789 PLC CPU Module for Series 90-70 Systems

GE IC697CPU789 Industrial Network Interface for Series 90-70 Systems: Bridging Field Devices and Smart Factory Data Flows

The GE IC697CPU789 is a high-performance central processing unit designed for the GE Series 90-70 programmable logic controller platform. As industrial facilities transition toward connected, data-driven operations, the IC697CPU789 serves as the critical intelligence layer that coordinates signal acquisition, protocol translation, real-time control, and upstream data delivery — making it an indispensable component in modern smart factory architectures.

At its core, the IC697CPU789 manages ladder logic execution, I/O scanning, and inter-module communication across the Series 90-70 rack. Its support for the Genius I/O bus enables seamless integration with distributed field devices, including sensors, actuators, and remote I/O drops, without requiring additional protocol converters at the field level. This native bus connectivity reduces latency, simplifies wiring, and ensures deterministic data delivery from the plant floor to the control layer.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the IC697CPU789 sits at the center of a layered automation network. Field-level sensors — including pressure transmitters, temperature probes, and proximity switches — feed analog and discrete signals into IC697ALG320 analog input modules and IC697MDL753 discrete output modules mounted in the same Series 90-70 rack. The CPU scans these I/O modules at high speed, executing control logic and generating output commands within milliseconds.

For distributed field installations, the IC697BEM731 Genius Bus Controller module extends the data network across the plant floor, connecting remote I/O drops and intelligent field devices over the Genius I/O bus. This architecture allows the IC697CPU789 to supervise hundreds of I/O points across multiple production zones without sacrificing scan time performance.

When Ethernet connectivity is required for SCADA integration or HMI communication, the IC697CMM711 Ethernet Communications Module slots into the Series 90-70 rack alongside the CPU, providing TCP/IP connectivity to supervisory systems. Operators using GE QuickPanel+ HMI terminals can then access real-time process data, alarm states, and trend histories directly from the IC697CPU789 over the plant LAN.

For applications requiring redundancy or expanded processing capacity, the IC697CPX935 CPU module can be deployed in parallel rack configurations, with the IC697CPU789 handling primary control while the CPX935 manages secondary or safety-critical logic. The IC697PWR711 power supply module provides stable, regulated DC power to the entire rack, ensuring uninterrupted CPU operation even during line voltage fluctuations.

In cross-platform integration scenarios — for example, where a legacy Series 90-70 system must exchange data with a newer IC693CPU374 Series 90-30 controller — protocol gateways and shared memory bridges enable bidirectional data flow, allowing both platforms to contribute to a unified SCADA dataset. This interoperability is essential for phased modernization projects where full system replacement is not immediately feasible.

At the SCADA and MES layer, the IC697CPU789’s data — collected via the IC697CMM711 Ethernet module — feeds into historian servers, OEE dashboards, and alarm management systems. Remote diagnostic tools can poll the CPU’s status registers over the network, enabling maintenance engineers to identify fault conditions, review I/O states, and perform program uploads or downloads without physical access to the control panel.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, PLCs, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and coordinated control. The IC697CPU789 directly addresses this challenge through its multi-protocol communication architecture and open integration capabilities.

By supporting SNP/SNPX serial communication natively and Ethernet connectivity via the IC697CMM711 expansion module, the IC697CPU789 can bridge older serial-based field networks with modern Ethernet-based SCADA and MES platforms. This eliminates the need for standalone protocol converters and reduces the number of potential failure points in the communication chain.

For sites where multiple PLC brands or generations coexist, Modbus RTU gateways can be connected to the IC697CPU789’s serial ports, enabling data exchange with third-party drives, variable frequency drives (VFDs), and smart sensors that speak Modbus but not Genius. This protocol flexibility is critical for achieving production line transparency across heterogeneous automation environments.

Remote monitoring and diagnostics are further enhanced by the CPU’s ability to expose internal data tables — including fault logs, I/O status, and program execution counters — to SCADA systems over Ethernet. Maintenance teams can configure alarm thresholds in the SCADA layer that trigger notifications when the IC697CPU789 detects hardware faults, communication timeouts, or out-of-range process values, enabling proactive maintenance rather than reactive repair.

System expansion is straightforward: additional I/O modules, communication modules, and specialty function modules can be added to the Series 90-70 rack without modifying the CPU’s core program, provided rack capacity allows. For larger expansions, additional racks connected via the Genius bus or Ethernet backbone extend the system’s reach across multiple production cells or plant buildings.

Every IC697CPU789 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying CPU boot integrity, I/O bus communication, and program execution before dispatch. Units are shipped with full warranty terms confirmed during quotation coverage, ensuring operational confidence for system integrators, OEMs, and end users alike.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC697CPU789 support?
The IC697CPU789 natively supports the Genius I/O bus for field device communication and SNP/SNPX serial protocols for programming and HMI connectivity. Ethernet TCP/IP communication is available by adding the IC697CMM711 Ethernet module to the Series 90-70 rack. Modbus RTU connectivity can be achieved via serial gateway devices connected to the CPU’s communication ports.

Q2: Can the IC697CPU789 integrate with modern SCADA and HMI systems?
Yes. When paired with the IC697CMM711 Ethernet Communications Module, the IC697CPU789 exposes its data tables to SCADA platforms over standard TCP/IP networks. GE QuickPanel+ HMI terminals and third-party SCADA software supporting GE’s SRTP or Modbus TCP protocols can connect directly, enabling real-time monitoring, alarm management, and remote diagnostics from the supervisory layer.

Q3: How does the IC697CPU789 handle network stability and communication redundancy?
The Genius I/O bus architecture provides inherent fault tolerance through its token-passing protocol, which detects communication failures and reports them to the CPU’s fault table in real time. For Ethernet-connected systems, network redundancy can be implemented at the switch level using managed industrial Ethernet switches with RSTP or ring topology support. The CPU’s watchdog timer and I/O fault detection logic ensure that communication interruptions trigger controlled safe-state outputs rather than uncontrolled process shutdowns.

Q4: What warranty and testing standards apply to IC697CPU789 units from ZYPLC?
All IC697CPU789 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment testing that includes CPU initialization, Genius bus communication verification, and program load/execute cycles. Units are packaged in anti-static materials and shipped with tracking to ensure safe delivery. Technical support is available throughout the warranty period for integration assistance and fault diagnosis.
