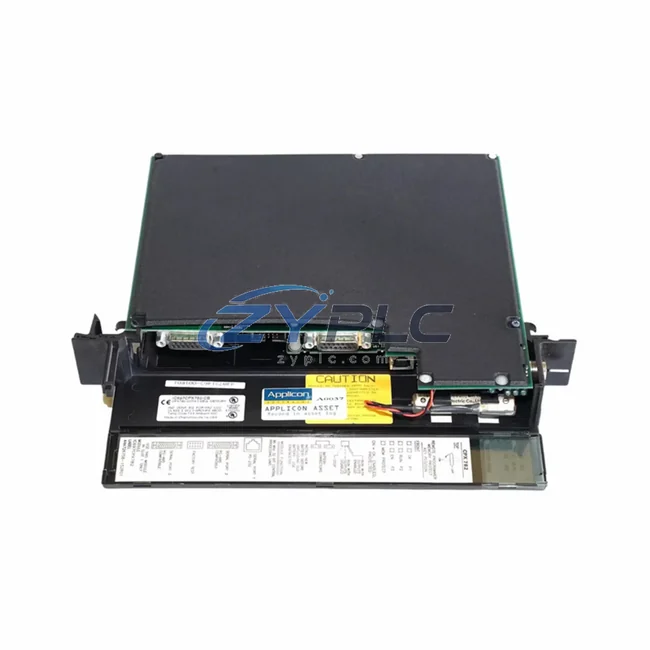

GE IC697CPX782-ED PLC CPU Module for Series 90-70

GE IC697CPX782-ED: Industrial Data Link for Series 90-70 Smart Factory Networks

The GE IC697CPX782-ED is a high-performance Ethernet-enabled CPU module engineered for the GE Fanuc Series 90-70 programmable logic controller platform. Designed to serve as the central intelligence and network gateway in demanding industrial environments, the IC697CPX782-ED bridges field-level devices, distributed I/O, and upper-level supervisory systems through a unified, high-speed communication architecture. Whether deployed in automotive assembly, oil and gas processing, power generation, or discrete manufacturing, this CPU module delivers the real-time data throughput, protocol flexibility, and network stability that modern smart factories demand.

At its core, the IC697CPX782-ED integrates an embedded Ethernet port supporting the SRTP (Service Request Transfer Protocol) native to GE’s control ecosystem, alongside Modbus TCP for broad third-party interoperability. This dual-protocol capability allows the module to simultaneously serve as a PLC controller and a protocol gateway — collecting signals from field sensors and actuators, executing ladder logic, and forwarding structured data packets to SCADA servers, HMI terminals, and MES platforms without requiring an intermediate communication processor.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 90-70 smart factory deployment, the IC697CPX782-ED sits at the heart of a layered automation network. At the field level, discrete sensors — including proximity switches, photoelectric detectors, and pressure transmitters — feed digital and analog signals into remote I/O racks equipped with IC697MDL340 discrete input modules and IC697ALG440 analog input modules. These racks communicate back to the CPU via the Series 90-70 VME backplane or through IC697BEM731 Bus Expansion Modules that extend the I/O network across the plant floor.

Variable frequency drives (VFDs) controlling conveyor motors and pump systems connect to the network through Modbus TCP, with the IC697CPX782-ED acting as the Modbus master — polling drive status registers, issuing speed reference commands, and logging fault codes in real time. Simultaneously, the CPU’s SRTP channel maintains a persistent connection to the plant’s SCADA server running GE CIMPLICITY or Proficy iFIX, streaming process variables, alarm states, and production counters at scan-cycle speed.

HMI panels — such as GE’s QuickPanel+ series — connect directly to the IC697CPX782-ED via Ethernet, rendering live process graphics, trend charts, and operator control screens without polling delays. For multi-controller architectures, the CPU leverages Ethernet Global Data (EGD) to broadcast peer-to-peer data exchanges with adjacent Series 90-70 or Series 90-30 CPUs, enabling coordinated control across production zones without routing traffic through the SCADA layer.

Edge gateway devices — including third-party IIoT gateways running OPC-UA or MQTT — can subscribe to the IC697CPX782-ED’s Modbus TCP registers, forwarding aggregated production data to cloud analytics platforms for predictive maintenance and OEE dashboards. This architecture ensures that the IC697CPX782-ED functions not merely as a PLC, but as a full-stack industrial data hub connecting every layer of the automation pyramid.

Solving Data Isolation in Industrial Sites

Legacy manufacturing sites frequently suffer from data silos — islands of automation where PLCs, drives, and sensors operate in isolation, unable to share process data with supervisory systems or with each other. The IC697CPX782-ED directly addresses this challenge through its multi-protocol Ethernet stack. By supporting SRTP for native GE device communication and Modbus TCP for universal third-party connectivity, the module eliminates the need for standalone protocol converters or communication co-processors in most Series 90-70 applications.

Remote monitoring and diagnostics are equally streamlined. Maintenance engineers can connect to the IC697CPX782-ED from any networked workstation running Proficy Machine Edition, performing online program edits, forcing I/O points, and reviewing fault tables without physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) in geographically distributed facilities.

For production line transparency, the CPU’s EGD producer/consumer model enables real-time data sharing between controllers, allowing SCADA systems to present a unified plant-wide view rather than polling each PLC individually. As production requirements evolve, the Series 90-70 rack architecture supports seamless expansion — additional I/O modules, communication modules such as the IC697CMM742 Ethernet Interface Module, and specialty modules can be added to existing racks without disrupting ongoing operations. Every IC697CPX782-ED unit shipped by ZYPLC undergoes functional communication testing prior to dispatch, verifying Ethernet connectivity, protocol handshake, and I/O scan integrity.

Industrial Connectivity FAQ

Q1: What communication protocols does the IC697CPX782-ED support, and is it compatible with third-party SCADA systems?
The IC697CPX782-ED supports SRTP (native GE protocol), Modbus TCP, and Ethernet Global Data (EGD). It is fully compatible with major SCADA platforms including GE CIMPLICITY, Proficy iFIX, Wonderware InTouch, Siemens WinCC, and Rockwell FactoryTalk, provided those systems include a Modbus TCP or SRTP driver.

Q2: How does the module handle network stability in high-noise industrial environments?
The IC697CPX782-ED is designed to operate within the EMI/RFI tolerance specifications of the Series 90-70 platform. For installations in electrically noisy environments, GE recommends shielded Ethernet cabling, proper panel grounding, and the use of industrial-grade managed switches to maintain deterministic network latency and prevent packet loss.

Q3: Can the IC697CPX782-ED be expanded with additional I/O or communication modules?
Yes. The Series 90-70 VME backplane supports up to 12 modules per rack, and multiple racks can be interconnected using IC697BEM731 or IC697BEM733 Bus Expansion Modules. Communication expansion options include the IC697CMM742 Ethernet Interface Module for additional Ethernet ports and the IC697PCM711 for serial communication requirements.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC697CPX782-ED?
All IC697CPX782-ED units supplied by ZYPLC carry a covering hardware defects and communication failures. Each unit undergoes pre-shipment functional testing including Ethernet port verification, protocol handshake confirmation, and backplane communication checks. Units are shipped via DHL or FedEx with full tracking and export documentation.
