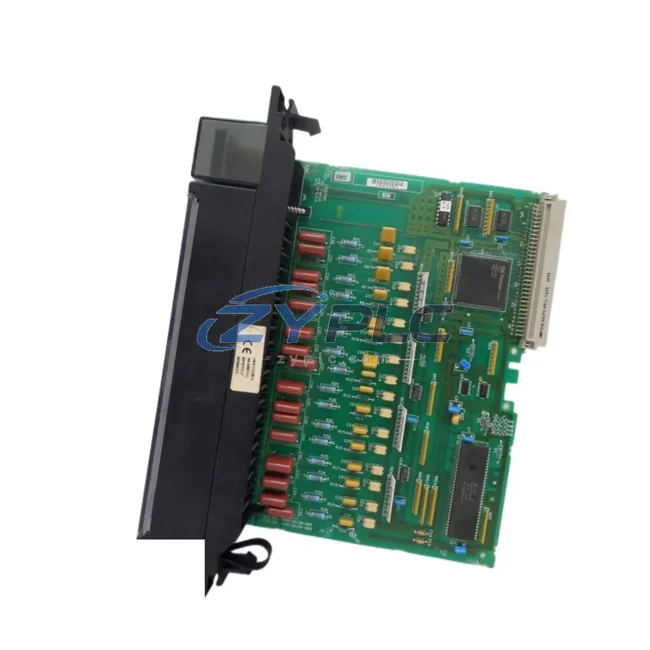

GE IC697MDL240 Discrete Input Module 90-70

GE IC697MDL240 Discrete Input Module for Series 90-70 Automation

The GE IC697MDL240 is a high-density isolated discrete input module engineered for the GE Fanuc Series 90-70 PLC platform. Designed to minimize signal acquisition overhead and reduce unnecessary CPU polling cycles, this module plays a direct role in lowering the energy footprint of industrial control systems. By delivering clean, debounced digital input signals with minimal latency, the IC697MDL240 enables tighter control loop execution, which translates into measurable reductions in motor run time, actuator dwell, and overall line operating load.

In modern manufacturing environments where energy cost per production unit is under constant scrutiny, the quality of discrete input data directly affects how efficiently a control system responds to process events. A poorly conditioned input signal forces the CPU — such as the GE IC697CPX935 or IC697CPX928 — to execute redundant scan cycles, increasing both power draw and thermal load on the rack. The IC697MDL240 eliminates this inefficiency through hardware-level input filtering and optical isolation, ensuring that only valid state transitions propagate to the control program.

Product Specification Table

System Compatibility and Application

The IC697MDL240 operates within a broader industrial control architecture that spans signal acquisition, control execution, drive regulation, and system feedback. Understanding how this module fits into the full automation stack is essential for engineers targeting measurable operational stability at the system level.

At the field level, sensors and limit switches feed discrete signals into the IC697MDL240. These signals are optically isolated and filtered before being passed to the Series 90-70 CPU — such as the IC697CPX935 — which executes the ladder logic program. Because the module handles signal conditioning in hardware, the CPU spends fewer cycles validating input integrity, freeing processing bandwidth for time-critical control tasks.

On the output side, the IC697MDL240 works in tandem with discrete output modules such as the GE IC697MDL340 (relay output) or IC697MDL753 (transistor output) to form a complete I/O subsystem. Together, these modules control contactors, solenoids, and motor starters with precision timing, reducing unnecessary energization of actuators and the associated unplanned downtime.

For variable-speed drive applications — a primary lever for energy reduction in motor-intensive lines — the IC697MDL240 provides the start/stop and fault interlock signals that govern GE AF-600FP or compatible variable frequency drives (VFDs). Accurate and debounce-free discrete inputs ensure that VFD ramp profiles are triggered at the correct process moment, preventing energy-wasteful coast-and-restart cycles.

Power monitoring is integrated through analog input modules such as the GE IC697ALG320, which captures current and voltage signals from power transducers installed at motor control centers. The IC697MDL240 complements this by providing the run/stop status bits that allow the CPU to correlate power draw data with equipment operating state — a prerequisite for meaningful energy KPI calculation.

Communication to supervisory systems is handled via the GE IC697CMM742 Ethernet module or IC697BEM731 bus controller, which transmit I/O status and energy data to SCADA or MES platforms. This closed-loop data path — from field signal through IC697MDL240, through CPU, through communication module, to supervisory dashboard — forms the backbone of a real-time condition monitoring architecture.

For applications requiring distributed I/O, the IC697MDL240 can be deployed in remote rack configurations using the GE IC697BEM711 remote I/O scanner, extending the industrial control architecture to satellite production cells without adding CPU load at the main rack.

Maintenance and Replacement Notes

In discrete manufacturing environments — automotive assembly, food and beverage packaging, pharmaceutical batch processing — the IC697MDL240 contributes to maintenance planning through several concrete mechanisms.

First, by providing reliable, noise-free input signals, the module enables the PLC program to implement equipment utilization logic with confidence. Conveyors, presses, and indexing tables can be placed in low-power standby states between production cycles, with the IC697MDL240 providing the presence detection and cycle-complete signals that trigger these state transitions. This alone can reduce idle-state operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Second, the module’s high input density (32 points per slot) reduces the number of rack slots required for a given I/O count, lowering the total backplane power budget. In large Series 90-70 installations with multiple racks — using chassis such as the IC697CHS750 (5-slot) or IC697CHS782 (9-slot) — this consolidation effect reduces the number of power supply modules required, directly cutting the system’s baseline power consumption.

Third, the IC697MDL240 supports predictive maintenance workflows by providing high-frequency input state logging that can be analyzed for anomalous switching patterns. A motor contactor that is chattering, a limit switch with intermittent contact, or a proximity sensor with degraded output — all of these conditions manifest as abnormal input transition patterns that the PLC can detect and flag before they cause unplanned downtime. Unplanned stops are among the most energy-intensive events in a production line, as they require full restart sequences, purge cycles, and warm-up periods that consume disproportionate energy relative to steady-state operation.

Fourth, for lines with production rate (takt time) optimization requirements, the IC697MDL240’s low-latency input response ensures that cycle time measurements are accurate to the millisecond. This precision allows production engineers to identify bottleneck stations and optimize conveyor speeds, press dwell times, and robot handoff sequences — all of which have direct energy implications when multiplied across thousands of production cycles per shift.

All units supplied by ZYPLC undergo pre-shipment functional testing, including input channel verification across all 32 points, isolation integrity checks, and backplane communication validation. Each IC697MDL240 is shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions.

Product Sourcing FAQ

Q1: How does the IC697MDL240 contribute to measurable operational stability in a Series 90-70 system?
The IC697MDL240 reduces CPU scan overhead by delivering clean, hardware-filtered input signals, which shortens scan cycle time and lowers CPU power draw. More importantly, it enables precise equipment state detection that allows the control program to implement standby and sleep logic for motors, conveyors, and actuators — the primary energy consumers on most production lines.

Q2: Is the IC697MDL240 compatible with both legacy and modernized Series 90-70 configurations?
Yes. The IC697MDL240 is fully compatible with all standard Series 90-70 rack configurations, including the IC697CHS750 and IC697CHS782 chassis, and works with all Series 90-70 CPUs. It can coexist with newer communication modules such as the IC697CMM742 Ethernet module, making it suitable for both legacy maintenance and modernization projects.

Q3: What is the recommended replacement or upgrade path if the IC697MDL240 is end-of-life in my application?
For applications where the Series 90-70 platform is being retained, ZYPLC recommends sourcing tested surplus IC697MDL240 units with verified warranty terms confirmed during quotation coverage. For full platform migrations, our engineering team can advise on equivalent discrete input modules for GE’s PACSystems RX7i platform, which offers backward-compatible I/O options and improved energy efficiency at the CPU level.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IC697MDL240 supplied by ZYPLC is tested for full 32-channel input functionality, optical isolation integrity, and backplane communication before shipment. The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical production applications.
