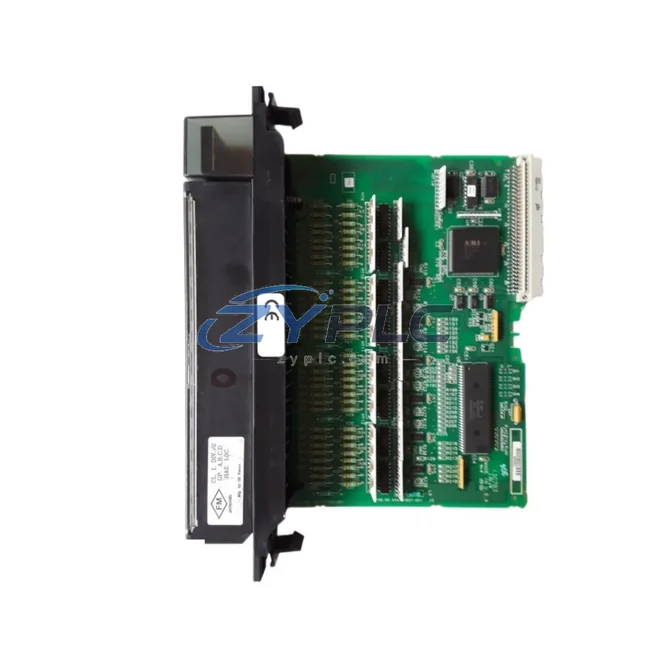

GE IC697MDL653 Discrete Output Module for 90-70

GE IC697MDL653 Discrete Output Module for Series 90-70

The GE IC697MDL653 is a 32-point discrete output module engineered for seamless integration within the GE Series 90-70 programmable logic controller architecture. Rather than functioning as a standalone component, the IC697MDL653 occupies a defined role within a layered automation hierarchy — bridging the control layer decisions made by the CPU and translating them into precise, reliable field-level switching actions. In distributed manufacturing environments, power generation facilities, petrochemical plants, water treatment stations, and heavy industrial processes, this module delivers the output density and electrical robustness required to sustain continuous, high-cycle operations without compromising system integrity.

Understanding the IC697MDL653 requires viewing it within the full Series 90-70 rack ecosystem. The module installs directly into the IC697CHS750 or IC697CHS790 baseplate chassis, sharing the backplane bus with the CPU, power supply, and communications modules. This physical and electrical integration ensures that output commands issued by the IC697CPU731 or IC697CPU771 processor are executed with minimal latency, maintaining synchronization across all I/O layers. The backplane architecture of the Series 90-70 system eliminates the need for external signal conditioning between the CPU and output modules, reducing wiring complexity and improving overall system reliability.

Power integrity is a foundational concern in any industrial control cabinet. The IC697MDL653 draws its logic power from the IC697PWR711 or IC697PWR724 power supply module, both of which are designed to deliver stable, regulated voltage across the full chassis under varying load conditions. When redundant power configurations are deployed — pairing primary and backup supplies — the IC697MDL653 continues to operate without interruption during supply switchover events, a critical requirement in process industries where unplanned output drops can trigger safety shutdowns or production losses.

At the I/O layer, the IC697MDL653 works in coordination with complementary input modules such as the IC697MDL241 (24 VDC discrete input) and IC697MDL340 (120 VAC discrete input), forming a complete digital I/O subsystem within the same chassis. This pairing allows engineers to design closed-loop control sequences where field sensor signals are read through input modules, processed by the CPU, and actuated through the IC697MDL653 outputs — all within a single scan cycle. The result is a tightly coupled, deterministic control loop suited to time-sensitive applications such as conveyor sequencing, valve actuation, motor starter control, and safety interlock management.

Network and communications integration further extends the IC697MDL653’s role in modern automation architectures. When the Series 90-70 rack includes the IC697BEM731 Bus Expansion Module or the IC697CMM711 communications coprocessor, the output module participates in distributed I/O schemes that span multiple racks or remote I/O drops. This capability is essential in large-scale plant layouts where control cabinets are distributed across production floors, substations, or remote field enclosures. The IC697MDL653 maintains consistent output behavior regardless of its position in the distributed network, ensuring that system architects can scale the control infrastructure without redesigning the I/O strategy.

For applications requiring high-speed discrete output switching, the IC697HSC700 high-speed counter module can be deployed alongside the IC697MDL653 to handle pulse-width modulation or encoder-driven output sequences, while the IC697MDL653 manages the bulk of standard on/off switching tasks. This division of labor within the same chassis optimizes both performance and cost, allowing engineers to allocate specialized modules only where the application demands it.

Human-machine interface integration is another dimension of the IC697MDL653’s system role. When paired with GE Fanuc QuickPanel or CIMPLICITY HMI platforms connected via the IC697CMM711 or Ethernet gateway, operators gain real-time visibility into output module status, channel-level diagnostics, and fault history. This transparency accelerates troubleshooting during commissioning and reduces mean time to repair during production incidents, directly supporting the long-term maintenance efficiency that industrial operators require.

The IC697MDL653 is backed by a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal industrial service conditions. Each unit undergoes functional verification prior to shipment, and ZYPLC maintains inventory depth to support both immediate replacement needs and planned maintenance schedules. system integration support is available for customers requiring assistance with rack configuration, I/O mapping, CPU compatibility verification, and system-level commissioning guidance.

Product Specification Table

System Compatibility Notes

A complete Series 90-70 control system built around the IC697MDL653 typically incorporates the following coordinated components: the IC697CPU731 or IC697CPU771 as the central processing unit executing ladder logic and function block programs; the IC697PWR711 power supply providing regulated backplane power; the IC697CHS750 nine-slot chassis as the physical integration platform; the IC697MDL241 24 VDC discrete input module for field signal acquisition; the IC697MDL340 120 VAC discrete input module for AC field devices; the IC697BEM731 bus expansion module for multi-rack distributed I/O configurations; the IC697CMM711 communications coprocessor for Ethernet or serial network integration; the IC697HSC700 high-speed counter module for encoder and pulse applications; and GE Fanuc terminal block assemblies for field wiring termination. Together, these components form a cohesive, validated control architecture in which the IC697MDL653 serves as the primary discrete output interface between the controller and field actuators.

Industrial Application Notes

In manufacturing and assembly lines, the IC697MDL653 controls motor starters, solenoid valves, and conveyor drives, executing sequencing logic defined in the CPU program with scan-cycle precision. In power generation and substation automation, the module manages breaker control outputs, annunciator panels, and protection relay trip circuits, where output reliability is a safety-critical requirement. In petrochemical and refinery process control, the IC697MDL653 interfaces with shutdown valve actuators and pump control panels within SIL-rated safety architectures, supported by redundant CPU and power configurations. In water and wastewater treatment, the module drives pump motor starters, chemical dosing systems, and valve actuators across distributed rack installations connected via the IC697BEM731 bus expansion. In mining and metallurgical operations, the IC697MDL653 withstands high-vibration, high-dust environments within sealed control enclosures, maintaining output integrity across extended operating cycles. In packaging and material handling, the module’s 32-point density allows a single chassis slot to control an entire zone of conveyor diverters, label applicators, and reject gates, minimizing rack space consumption while maximizing output coverage.

Product Compatibility FAQ

Q1: Is the IC697MDL653 compatible with all Series 90-70 CPU models?
The IC697MDL653 is compatible with the full range of Series 90-70 CPUs, including the IC697CPU731, IC697CPU771, and IC697CPU781. The module communicates via the VME backplane bus and is recognized automatically during CPU configuration in the GE Proficy Machine Edition programming environment. No special firmware or hardware modification is required for integration into existing Series 90-70 racks.

Q2: Can the IC697MDL653 be used in a redundant control architecture?
Yes. In redundant Series 90-70 configurations, the IC697MDL653 can be installed in both primary and standby racks. When the system switches from primary to standby CPU control, output module states are synchronized via the redundancy communication link, ensuring bumpless transfer of output commands. This configuration is commonly deployed in continuous process industries where unplanned output interruptions are not acceptable.

Q3: What does the warranty terms confirmed during quotation cover, and how does system integration support work?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and operational malfunctions occurring under normal industrial service conditions from the date of shipment. system integration support includes pre-shipment compatibility verification, rack slot assignment guidance, I/O address mapping assistance, and post-installation commissioning consultation. Customers requiring replacement units under warranty or integration support should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
