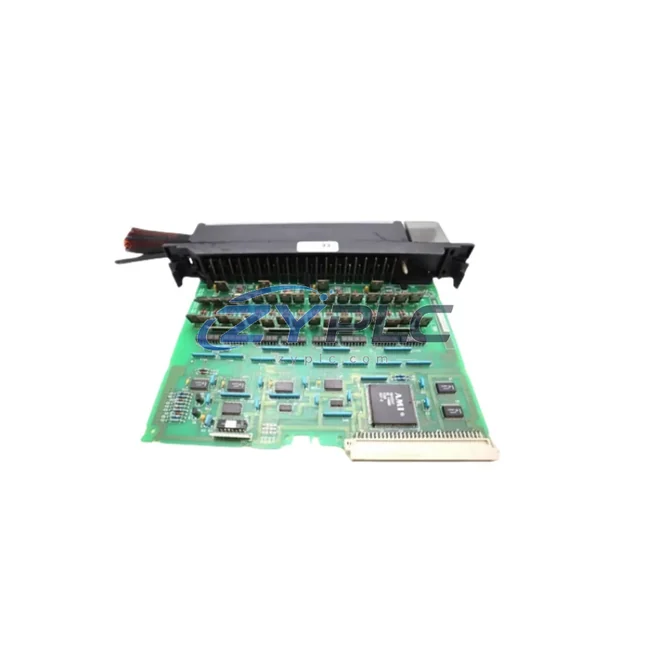

GE IC697MDL970 Output Relay for Series 90-70

GE IC697MDL970 Output Relay for Series 90-70: Compatibility and Replacement Notes

The GE Fanuc IC697MDL970 is a discrete output relay module engineered for deployment within the GE Series 90-70 programmable logic controller platform — one of the most widely adopted rack-based control architectures in heavy industrial automation. Rather than functioning as a standalone component, the IC697MDL970 is designed to operate as an integral node within a layered control hierarchy, coordinating signal execution between the CPU layer, the I/O distribution layer, the field device layer, and the supervisory network layer. Its relay-contact output topology makes it particularly well-suited for applications requiring galvanic isolation between the control system and high-voltage or inductive field loads, including motor starters, solenoid valves, contactor coils, and alarm annunciators.

In a fully configured Series 90-70 rack system, the IC697MDL970 occupies a standard I/O slot within the IC697CHS750 or IC697CHS782 baseplate, receiving power from the IC697PWR710 or IC697PWR711 rack power supply and communicating with the CPU — typically an IC697CPU772 or IC697CPU781 — via the VME-based backplane bus. The module’s relay outputs are scanned and updated each PLC cycle, with output state data written directly from the CPU’s output image table. This tight integration with the rack backplane ensures deterministic output response times consistent with the overall system scan cycle, a critical requirement in process control and discrete manufacturing environments where output latency directly affects machine safety and throughput.

Product Specification Table

System Compatibility Notes

The IC697MDL970 achieves its full operational value when positioned within a coherent, multi-layer control architecture. At the CPU layer, an IC697CPU772 or IC697CPU781 processor module executes the ladder logic or function block program, writing discrete output states to the output image table each scan cycle. These states are transmitted across the VME backplane to the IC697MDL970, which energizes or de-energizes its relay contacts in direct correspondence with the CPU’s commanded output states. This deterministic signal path — from CPU image table to relay contact closure — is the foundation of reliable discrete output control in Series 90-70 systems.

At the power layer, the IC697PWR710 or IC697PWR711 rack power supply provides regulated 5V DC backplane power and 24V DC field power to all modules in the rack, including the IC697MDL970. Proper power supply sizing is essential when deploying multiple relay output modules in a single rack, as relay coil energization draws transient inrush current that must be accounted for in the power budget. Engineers specifying systems with high relay output density should verify total rack power consumption against the supply’s rated output capacity.

For applications requiring expanded I/O capacity beyond a single rack, the IC697MDL970 can be deployed in remote I/O expansion racks connected to the main CPU rack via the IC697BEM711 Bus Expansion Module or through a Series 90-70 Remote I/O Scanner such as the IC697BEM731. This architecture allows the relay output module to be physically located near field devices — reducing field wiring runs — while maintaining synchronous communication with the central CPU. In multi-rack configurations, the IC697CHS750 expansion baseplate provides the mechanical and electrical foundation for remote relay output deployment.

At the network and supervisory layer, the Series 90-70 system may incorporate an IC697CMM711 or IC697CMM742 communications module to enable Ethernet or serial connectivity to SCADA systems, DCS platforms, or historian servers. While the IC697MDL970 itself does not participate directly in network communication, its output states are reflected in the CPU’s data tables and are therefore accessible to any supervisory system polling the CPU via Modbus TCP, SRTP, or other supported protocols. This transparency between the relay output layer and the supervisory network layer is a key advantage of the Series 90-70 architecture’s integrated data model.

Human-machine interface integration is typically achieved through a Proficy HMI/SCADA — iFIX or Cimplicity workstation connected to the CPU via Ethernet, or through a dedicated operator panel such as the QuickPanel series. Operators can monitor the commanded and actual states of IC697MDL970 relay outputs in real time, enabling rapid fault diagnosis and manual override capability during commissioning or maintenance operations. At the field execution layer, the relay contacts of the IC697MDL970 directly switch motor starter coils, solenoid valve actuators, pilot lights, and alarm relay coils, completing the signal chain from CPU logic to physical process action.

Industrial Application Notes

Manufacturing and Discrete Production Lines: In automotive assembly, electronics manufacturing, and general discrete production environments, the IC697MDL970 provides the relay output switching required to control conveyor drive contactors, pneumatic cylinder solenoids, part-present indicator lamps, and end-of-line reject gate actuators. Its relay contact isolation protects the Series 90-70 CPU and backplane from voltage transients generated by inductive load switching, extending system service life in high-cycle-rate production environments.

Power Generation and Electrical Substation Control: In power plant auxiliary systems and substation automation, relay output modules must switch high-voltage control circuits reliably under fault conditions. The IC697MDL970’s galvanic isolation and rated contact voltage of up to 250V AC make it suitable for breaker trip and close coil control, transformer tap changer positioning, and alarm annunciator panel driving in utility-grade control systems. Its integration within the Series 90-70 rack architecture ensures that output commands are executed within the deterministic scan cycle required for protection relay coordination.

Petrochemical and Refinery Process Control: In continuous process industries such as oil refining, chemical processing, and gas compression, the IC697MDL970 is deployed to control shutdown valve solenoids, pump motor starters, and safety interlock relay circuits. When integrated with a Series 90-70 redundant CPU configuration — using paired IC697CPU781 processors with IC697RCM711 redundancy communication modules — the relay output module participates in a fault-tolerant architecture that maintains output state continuity during CPU switchover events, a critical requirement for SIL-rated safety instrumented systems.

Water and Wastewater Treatment: Municipal water treatment facilities rely on relay output modules to control submersible pump contactors, chemical dosing pump starters, UV disinfection system enables, and valve actuator controls. The IC697MDL970’s wide operating temperature range and humidity tolerance make it suitable for installation in outdoor control cabinets and pump station panels where environmental conditions are more demanding than typical indoor industrial environments.

Mining, Metallurgy, and Heavy Industry: In mining conveyor systems, ore processing plants, and steel mill auxiliary drives, relay output modules must withstand high levels of electrical noise generated by large variable frequency drives, arc furnaces, and high-current switching equipment. The IC697MDL970’s relay contact isolation provides a natural noise barrier between the Series 90-70 control system and the electrically harsh field environment, maintaining signal integrity and preventing common-mode noise from corrupting CPU operation.

Product Compatibility FAQ

Q1: Is the IC697MDL970 compatible with both the IC697CHS750 and IC697CHS782 baseplates, and can it be used in a mixed I/O rack alongside analog and specialty modules?

Yes. The IC697MDL970 is fully compatible with all standard Series 90-70 baseplates, including the IC697CHS750 (9-slot), IC697CHS782 (12-slot), and IC697CHS790 (5-slot) configurations. It can occupy any I/O slot in the rack alongside analog input modules such as the IC697ALG320, analog output modules, and specialty communications modules without slot restriction. The Series 90-70 rack architecture uses a universal VME-compatible backplane that does not impose module-type slot constraints, allowing engineers to optimize rack layout based on field wiring grouping and cabinet space requirements.

Q2: How does the IC697MDL970 behave during a CPU redundancy switchover in a dual-CPU Series 90-70 architecture, and what is the expected output state during the switchover interval?

In a Series 90-70 redundant CPU configuration using paired processors and IC697RCM711 redundancy communication modules, the backup CPU maintains a synchronized copy of the primary CPU’s output image table. During a switchover event, the backup CPU assumes control and resumes output scanning within the system’s configured switchover time — typically within one to two scan cycles. During the switchover interval itself, the IC697MDL970’s relay contacts will hold their last commanded state, as relay contacts are mechanically latched and do not de-energize unless actively commanded or power is lost. This behavior must be accounted for in the safety analysis of any process where relay output state during switchover has safety implications.

Q3: What does the warranty terms confirmed during quotation cover for the IC697MDL970, and what support is available for long-term maintenance and spare parts supply?

The warranty terms confirmed during quotation provided by ZYPLC covers hardware defects in the IC697MDL970, including relay contact failure, backplane connector degradation, and internal logic faults confirmed through functional testing. Warranty claims are supported by pre-shipment functional verification testing performed on all units prior to dispatch. For long-term maintenance planning, ZYPLC supports RFQ sourcing for IC697MDL970 modules and related Series 90-70 components to support both emergency replacement and planned preventive maintenance programs. Engineers managing aging Series 90-70 installations are encouraged to establish a spare parts inventory strategy that includes at least one IC697MDL970 per rack configuration to minimize unplanned downtime risk. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for availability, lead times, and volume pricing.
