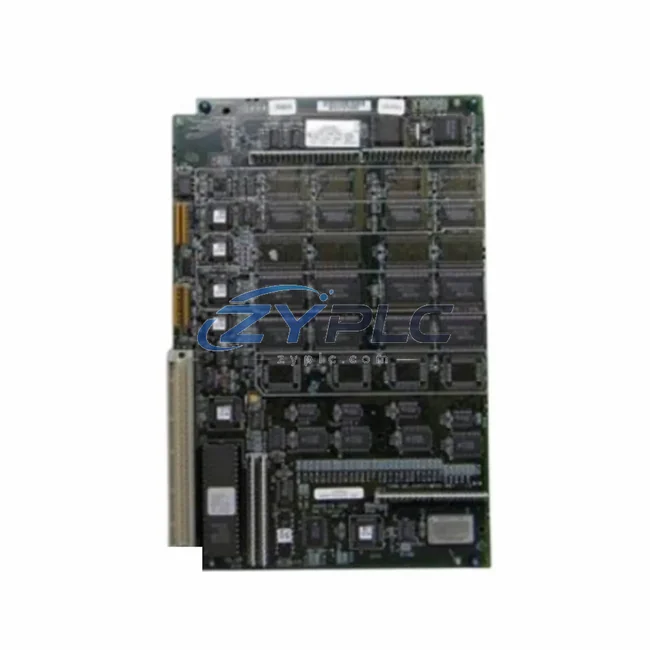

GE IC697MEM735B Memory Expander Module for Series 90-70 Systems

GE IC697MEM735B Memory Expander Module: Expanding the Industrial Data Link in Series 90-70 Systems

In modern smart factory environments, the ability to process, store, and transmit data without interruption is the foundation of operational excellence. The GE IC697MEM735B Memory Expander Module is engineered to extend the onboard memory capacity of GE Fanuc Series 90-70 PLC CPUs, enabling more complex ladder logic programs, larger data tables, and deeper integration with SCADA, HMI, and distributed control architectures. As industrial sites evolve toward full connectivity — from field-level sensors to enterprise MES platforms — the IC697MEM735B plays a critical role in ensuring that the controller at the heart of the system never becomes the bottleneck in the data chain.

The Series 90-70 platform, long recognized for its modular scalability and robust industrial performance, relies on memory expansion modules like the IC697MEM735B to support increasingly demanding automation programs. Whether the application involves high-speed discrete manufacturing, continuous process control, or multi-axis motion coordination, expanded CPU memory directly translates to greater program depth, more extensive fault logging, and improved real-time responsiveness across the entire control network.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the IC697MEM735B requires placing it within the broader context of the industrial data flow it supports. In a typical Series 90-70 installation, field-level signals originate from distributed sensors — pressure transmitters, proximity switches, temperature probes, and flow meters — which feed into remote I/O racks communicating over the GE Genius Bus. These signals are collected by Genius Bus Controllers such as the IC660BBA020 and transmitted back to the Series 90-70 CPU rack, where the IC697MEM735B ensures the CPU has sufficient memory to process all incoming data points without program truncation or register overflow.

At the CPU level, modules such as the IC697CPU772 or IC697CPU782 rely on expanded memory to execute multi-thousand-rung ladder logic programs that govern everything from conveyor sequencing to PID loop control. With the IC697MEM735B installed, these CPUs can maintain larger %R register tables, extended %AI and %AQ analog data blocks, and more comprehensive fault history logs — all of which are essential for accurate SCADA data acquisition.

Communication modules like the IC697CMM742 Ethernet Interface or the IC697BEM731 Genius Bus Controller bridge the Series 90-70 rack to the plant network, forwarding real-time process data to SCADA platforms such as GE’s own Cimplicity or third-party systems running OPC-DA and OPC-UA servers. HMI terminals — including GE QuickPanel series displays — subscribe to these data feeds, presenting operators with live process visualization, alarm management, and trend logging. The expanded memory provided by the IC697MEM735B ensures that the CPU can sustain high-frequency data updates to these communication modules without scan time degradation.

For drive integration, the Series 90-70 platform commonly interfaces with GE AF-600 FP variable frequency drives via Profibus-DP or hardwired analog signals, with the PLC program managing speed references, torque limits, and fault acknowledgment. Larger memory capacity allows more sophisticated drive control algorithms to run natively in the PLC, reducing reliance on standalone drive controllers and simplifying the overall system architecture.

At the network edge, industrial Ethernet switches — such as those in the GE MDS iNET series or third-party managed switches — aggregate data from multiple PLC nodes and route it to the plant historian or MES server. The IC697MEM735B, by enabling more comprehensive data logging within the PLC itself, reduces the risk of data loss during network interruptions, acting as a local buffer that preserves process records until connectivity is restored.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where individual controllers, drives, and field devices operate in silos, unable to share process information with supervisory systems or with each other. The GE Fanuc Series 90-70 platform, when properly configured with modules like the IC697MEM735B, directly addresses this challenge by providing the memory headroom needed to implement comprehensive communication programs alongside core control logic.

Without adequate memory, PLC programmers are forced to make difficult trade-offs: reducing the number of monitored data points, simplifying alarm logic, or eliminating remote diagnostic routines to keep the program within memory limits. The IC697MEM735B eliminates these compromises, allowing engineers to implement full protocol conversion routines — for example, mapping Genius Bus device data into Modbus TCP registers for transmission to a third-party SCADA system — without sacrificing scan time performance.

For sites undergoing digital transformation, the IC697MEM735B also supports the implementation of structured data logging programs that capture production counts, downtime events, quality rejects, and energy consumption data directly in the PLC’s extended register space. This data can then be retrieved by MES or ERP systems via SRTP or OPC, enabling production transparency without requiring a full controller replacement. The result is a cost-effective path to connected manufacturing that preserves the existing Series 90-70 infrastructure investment while delivering the data visibility demanded by modern smart factory initiatives.

Remote diagnostics capabilities are similarly enhanced. With expanded memory, the PLC program can maintain detailed fault history arrays, communication error counters, and module health status registers that remote engineers can interrogate via the plant network — reducing the need for on-site troubleshooting visits and accelerating mean time to repair. Combined with the network communication modules already present in the Series 90-70 rack, the IC697MEM735B transforms the controller from a standalone automation device into a fully networked node in the plant’s industrial IoT architecture.

Industrial Connectivity FAQ

Q1: Does the IC697MEM735B affect PLC scan time or communication latency?
A: Memory expansion itself does not directly increase scan time. However, it enables larger and more complex programs to run, so scan time will depend on the total program size and I/O configuration. Properly structured ladder logic with the IC697MEM735B installed typically maintains scan times well within the requirements of most industrial communication protocols, including SRTP and Modbus TCP/IP.

Q2: Is the IC697MEM735B compatible with all Series 90-70 CPUs?
A: The IC697MEM735B is designed for use with compatible GE Fanuc Series 90-70 CPU modules. Compatibility should be verified against the specific CPU firmware version and rack configuration. Common compatible CPUs include the IC697CPU772 and IC697CPU782 series. Contact our technical team for confirmation on your specific configuration.

Q3: Can the expanded memory support additional communication protocol stacks?
A: Yes. With the IC697MEM735B providing additional memory, engineers can implement more extensive communication function blocks — including Ethernet Global Data (EGD) exchange configurations, Modbus TCP client/server routines, and SRTP peer-to-peer data sharing — without impacting the available memory for core control logic. This is particularly valuable in multi-network architectures where the PLC must simultaneously communicate with SCADA, HMI, and remote I/O systems.

Q4: What quality assurance and warranty coverage is provided?
A: Every IC697MEM735B unit is tested prior to shipment to verify functional integrity and compatibility with Series 90-70 rack hardware. A warranty terms confirmed during quotation is included, covering manufacturing defects and functional failures under normal operating conditions. Our inventory is maintained RFQ Available for shipment arranged after confirmation, supporting both planned maintenance schedules and emergency replacement requirements.
