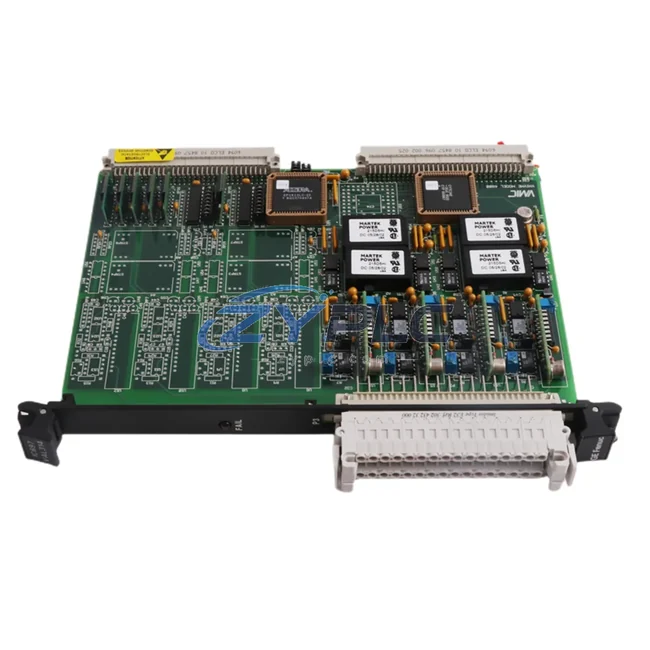

GE IC697VAL314 Analog Output Module | Series 90-70

GE IC697VAL314: Industrial Data Link for Series 90-70 Analog Output Networks

The GE Fanuc IC697VAL314 is a high-performance Analog Output Module engineered for the Series 90-70 programmable logic controller platform — one of GE’s most widely deployed industrial control architectures. Designed to bridge the gap between digital control logic and real-world field devices, the IC697VAL314 delivers precision analog signal output across demanding industrial environments including automotive assembly, petrochemical processing, power generation, water treatment, and discrete manufacturing. With its robust signal conversion capability, this module serves as a critical node in the plant-floor data chain — translating PLC command data into calibrated analog signals that drive actuators, variable frequency drives, control valves, and process instruments with high fidelity and minimal latency.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Series 90-70 control architecture, the IC697VAL314 sits at the heart of the analog output data chain. The process begins upstream at the GE IC697CPU772 or IC697CPU781 central processing unit, where the PLC executes ladder logic and function block programs that generate setpoint values for downstream field devices. These digital command values are written to the IC697VAL314’s output registers via the VME backplane bus, where the module’s 12-bit D/A converter translates them into precise analog signals — either 0–10 VDC or 4–20 mA — depending on field device requirements.

On the field side, the IC697VAL314 drives a wide range of devices. Variable frequency drives such as the GE AF-600 FP series receive 4–20 mA speed reference signals, enabling smooth motor speed control across conveyor systems, pump stations, and compressor drives. Control valves and electro-pneumatic positioners receive voltage or current signals for precise flow and pressure regulation. In parallel, the GE IC697MDL340 digital output module handles discrete switching commands, while the GE IC697ALG320 analog input module feeds real-time process feedback — temperature, pressure, flow — back to the CPU, closing the PID control loop.

For remote I/O expansion, the Series 90-70 system leverages the GE IC697BEM711 Genius Bus Controller, which extends the control network across the plant floor to remote I/O drops. Field sensors — including 4–20 mA transmitters for pressure and level measurement — connect to remote analog input modules, with their data transmitted back to the CPU over the Genius Bus at high speed. The IC697VAL314’s output signals are synchronized with this incoming sensor data, enabling real-time closed-loop control even across distributed plant topologies.

At the supervisory level, the Series 90-70 CPU communicates with CIMPLICITY HMI or iFIX SCADA workstations via Ethernet TCP/IP through the GE IC697CMM742 Ethernet Interface Module. Operators monitor analog output values, trend historical data, and issue setpoint adjustments from the SCADA console — with changes propagating through the CPU to the IC697VAL314 in real time. For facilities running multi-vendor environments, protocol gateways such as the Moxa MGate MB3180 or ProSoft MVI56-MCM bridge Modbus RTU field devices into the GE network, ensuring seamless data integration without replacing legacy instrumentation.

Edge computing nodes — such as industrial IoT gateways running on the Advantech WISE-5000 platform — can tap into the Series 90-70 network via OPC-UA or Modbus TCP, aggregating analog output data alongside production KPIs for cloud-based analytics and predictive maintenance dashboards. This end-to-end data flow — from PLC logic to analog field signal to SCADA visualization to cloud analytics — positions the IC697VAL314 as a foundational component in any smart factory connectivity strategy.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy GE Series 90-70 systems face a common challenge: analog output modules that were installed decades ago now struggle to integrate with modern SCADA platforms, Ethernet-based supervisory systems, and Industry 4.0 data infrastructure. The IC697VAL314 addresses this directly. Its backplane-native communication ensures zero-latency data transfer between the CPU and field devices, eliminating the signal delays that plague external signal converters and add-on protocol adapters.

For sites dealing with protocol fragmentation — where Modbus RTU field instruments, PROFIBUS drives, and GE Genius Bus devices must coexist — the IC697VAL314 provides a stable, deterministic analog output foundation that remains protocol-agnostic at the field level. Upstream protocol translation is handled by the CPU and communication modules, while the IC697VAL314 delivers clean, calibrated analog signals regardless of the supervisory protocol in use. This architecture eliminates data silos between the PLC control layer and the SCADA monitoring layer, enabling full production line transparency.

Remote diagnostics are supported through the Series 90-70 CPU’s built-in fault logging and the CIMPLICITY alarm management system. When an analog output channel drifts out of range or a field device reports a fault, the system generates an alarm at the SCADA workstation within milliseconds — enabling maintenance teams to diagnose and resolve issues without dispatching personnel to the field. For multi-site operations, VPN-secured remote access to the SCADA server provides plant managers with real-time visibility into analog output performance across all production lines, supporting proactive maintenance scheduling and reducing unplanned downtime.

System expansion is straightforward: the Series 90-70 rack architecture supports hot-standby CPU redundancy and modular I/O expansion, allowing facilities to add analog output capacity by installing additional IC697VAL314 modules into available rack slots — without modifying existing wiring or reprogramming the control logic. All modules shipped by ZYPLC undergo pre-shipment functional testing, verifying channel accuracy, signal linearity, and backplane communication integrity before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC697VAL314 support for SCADA integration?
The IC697VAL314 communicates with the Series 90-70 CPU via the VME backplane bus. SCADA integration is achieved through the CPU’s communication modules — such as the IC697CMM742 Ethernet module — which support SNP, SNPX, Modbus TCP, and OPC-DA/UA protocols, enabling seamless connectivity with iFIX, CIMPLICITY, Ignition, and WinCC SCADA platforms.

Q2: Is the IC697VAL314 compatible with third-party HMI and drive systems?
Yes. The module’s 4–20 mA and 0–10 VDC output signals are industry-standard and compatible with virtually all third-party variable frequency drives, HMI analog inputs, and process instruments. Protocol-level integration with non-GE systems is handled upstream by the CPU and gateway modules, ensuring broad system compatibility without hardware modification.

Q3: How does ZYPLC ensure network stability and signal accuracy before shipment?
Every IC697VAL314 unit undergoes a comprehensive pre-shipment test protocol that includes backplane communication verification, D/A conversion accuracy testing across all four channels, output signal linearity checks, and isolation resistance measurement. Units that pass all tests are shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can the IC697VAL314 be expanded or integrated into a larger distributed control system?
Absolutely. The Series 90-70 platform supports multi-rack expansion via the IC697BEM711 Genius Bus Controller and remote I/O drops, allowing the IC697VAL314 to function as part of a large-scale distributed control system spanning multiple production zones. Integration with higher-level MES and ERP systems is achievable through OPC-UA gateways and Ethernet-connected SCADA servers, supporting full plant-wide data transparency and Industry 4.0 connectivity.
