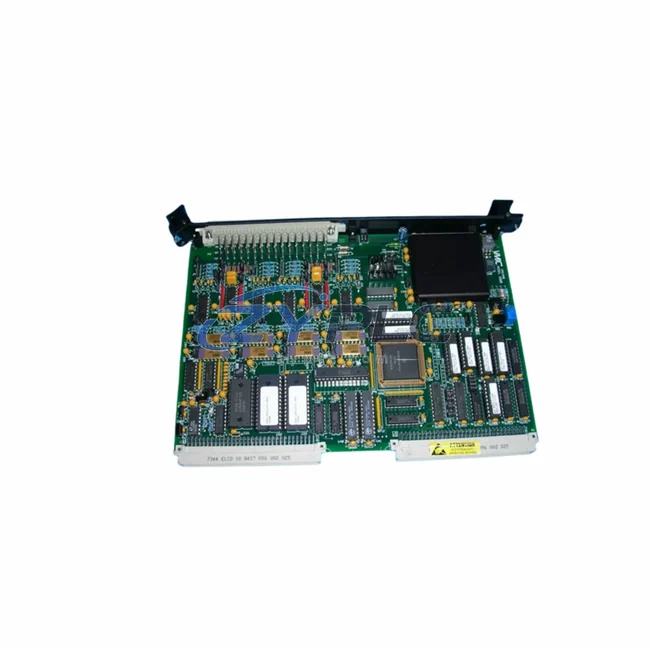

GE IC697VRD008 Strain Bridge Input Module for Series 90-70 PLC Systems

GE IC697VRD008 Strain Bridge Input Module – Industrial Data Link for Series 90-70 Smart Factory Networks

The GE IC697VRD008 is a high-precision strain bridge input module engineered for the GE Fanuc Series 90-70 programmable logic controller platform. This module serves as a critical analog signal acquisition node within industrial automation architectures, converting millivolt-level signals from strain gauge sensors into digitized process data that flows seamlessly through the PLC backplane and onward to supervisory control systems. In modern smart factory environments, the IC697VRD008 bridges the gap between physical measurement points and digital control networks, enabling real-time monitoring, closed-loop control, and predictive maintenance strategies across demanding industrial applications.

Designed for deployment in process industries, heavy manufacturing, power generation, and material handling systems, this module supports direct connection to full-bridge, half-bridge, and quarter-bridge strain gauge configurations. The digitized output integrates directly with the Series 90-70 CPU rack, where data is processed, scaled, and transmitted across industrial Ethernet or serial communication links to SCADA platforms, HMI terminals, and enterprise-level historians. The IC697VRD008 ensures measurement integrity even in electrically noisy environments, thanks to built-in signal conditioning, excitation voltage regulation, and high common-mode rejection.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 90-70 deployment, the IC697VRD008 operates as the frontline data acquisition point for mechanical stress, load, torque, and pressure measurements. Strain gauge sensors mounted on structural members, press frames, conveyor rollers, or reactor vessels generate microvolt-level signals proportional to applied force. The IC697VRD008 conditions these signals, applies excitation voltage, and digitizes the readings at 16-bit resolution before passing them across the VME backplane to the CPU module — such as the IC697CPX935 or IC697CPX928 — where real-time PLC logic executes threshold comparisons, scaling calculations, and alarm generation.

From the CPU, processed strain data travels through the IC697CMM742 Ethernet communication module to plant-level networks. Here, SCADA servers running GE iFIX or Cimplicity HMI software poll the controller for live process values, trending data, and alarm states. For facilities requiring protocol translation between legacy serial devices and modern Ethernet infrastructure, the IC697CMM711 serial communication module provides Modbus RTU connectivity to third-party instruments and drives. In distributed architectures, remote I/O racks connected via the IC697BEM731 bus expansion module extend the reach of the Series 90-70 system to field locations hundreds of meters from the main control room.

Power conditioning for the entire rack is managed by the IC697PWR711 power supply module, ensuring stable DC voltages for analog measurement accuracy. When the application demands discrete interlocking alongside analog measurement, the IC697MDL753 discrete output module and IC697MDL250 discrete input module work in concert with the IC697VRD008 to create comprehensive control loops. For example, a hydraulic press control system might use strain bridge feedback from the IC697VRD008 to modulate a variable frequency drive while the IC697MDL753 activates safety interlocks based on overload thresholds detected in real time.

Edge gateway devices translate SRTP protocol data into OPC UA or MQTT streams for cloud-based analytics platforms, enabling predictive maintenance algorithms to identify fatigue patterns in mechanical structures before catastrophic failure occurs. The IC697ALG321 analog output module can close the control loop by sending corrective signals to actuators based on strain feedback, completing a fully integrated measurement-to-action data chain within the Series 90-70 ecosystem.

Solving Data Isolation in Industrial Sites

Many legacy installations suffer from data isolation where strain measurement systems operate as standalone instruments disconnected from plant-wide networks. The IC697VRD008, integrated within the Series 90-70 platform, eliminates these data silos by channeling analog measurements directly into the PLC data table, making them immediately available to any networked client. Facilities upgrading from chart recorders or standalone data loggers gain real-time visibility into structural health, production quality metrics, and equipment loading patterns without installing parallel measurement infrastructure.

Protocol fragmentation is addressed through the Series 90-70 communication architecture. The backplane-integrated approach means strain data does not require separate protocol converters or dedicated measurement networks. Instead, values flow through the same Ethernet infrastructure used for discrete control, motion coordination, and operator interface traffic. This unified approach reduces network complexity, lowers maintenance burden, and accelerates troubleshooting when communication issues arise.

Remote diagnostic capabilities allow maintenance engineers to verify sensor health, check excitation voltage levels, and validate measurement accuracy from any networked workstation. When combined with historian software, long-term strain trends reveal gradual degradation in mechanical components, enabling condition-based maintenance scheduling that reduces unplanned downtime and extends equipment service life. The scalability of the Series 90-70 platform means additional IC697VRD008 modules can be added to existing racks as measurement requirements grow, without redesigning the control system architecture.

Every IC697VRD008 module shipped by ZYPLC undergoes comprehensive functional testing including channel-by-channel verification, excitation voltage measurement, A/D conversion accuracy validation, and backplane communication confirmation. Units are shipped from verified inventory with full traceability documentation and backed by a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions.

Industrial Connectivity FAQ

Q: What communication latency can I expect when reading strain data through the Series 90-70 network?
A: The IC697VRD008 updates its channel readings within one PLC scan cycle, typically 10–50ms depending on program complexity. Data reaches SCADA systems within one additional polling interval, generally under 100ms for most configurations using SRTP or Modbus TCP protocols.

Q: Is the IC697VRD008 compatible with modern Ethernet-based SCADA systems?
A: Yes. When paired with the IC697CMM742 Ethernet module, strain data is accessible via SRTP protocol to GE-native SCADA platforms and via OPC UA through gateway devices to third-party systems including Wonderware, Ignition, and Siemens WinCC.

Q: Can I expand my strain measurement capacity without replacing the existing controller?
A: Absolutely. The Series 90-70 rack architecture supports multiple IC697VRD008 modules in a single rack, and the IC697BEM731 bus expansion module enables additional remote racks. This modular approach allows measurement point expansion without CPU replacement or network redesign.

Q: What testing and warranty coverage does ZYPLC provide?
A: Each IC697VRD008 undergoes full functional testing including excitation output verification, A/D accuracy checks across all channels, and backplane communication validation. ZYPLC provides a warranty terms confirmed during quotation with technical support for installation and commissioning assistance.
