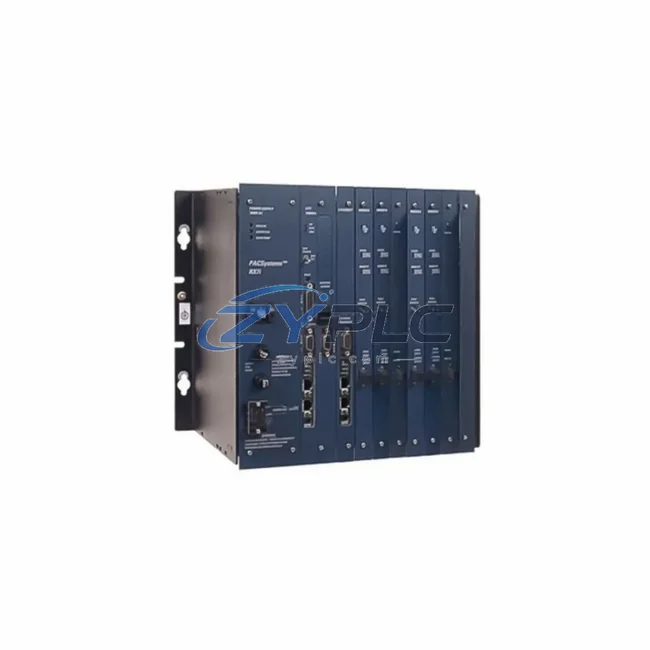

The GE Fanuc IC698PSA100 is a high-efficiency AC power supply module engineered for the PACSystems RX7i control platform. Designed to meet the demanding energy and reliability requirements of modern industrial automation environments, the IC698PSA100 delivers stable, regulated DC power to the RX7i backplane while minimizing conversion losses and heat dissipation. For plant engineers and automation managers focused on reducing energy overhead, improving equipment uptime, and optimizing production line throughput, this module represents a foundational investment in sustainable industrial control infrastructure.

Unlike generic power supplies, the IC698PSA100 is purpose-built for the RX7i rack architecture, ensuring seamless compatibility with GE Fanuc’s full range of CPU, I/O, and communication modules. Its regulated output characteristics protect sensitive control electronics from voltage fluctuations common in heavy industrial environments — reducing the risk of unplanned shutdowns and the associated unplanned downtime of emergency restarts and reinitialization cycles.

Product Specification Table

System Compatibility and Application

The IC698PSA100 operates at the heart of a broader industrial automation system. In a typical RX7i-based control cabinet, the power supply feeds the IC698CPE030 or IC698CPE040 CPU modules, which execute the PLC logic governing machine cycles, interlocks, and operational-efficiency routines such as motor coast-down and idle-state power reduction. The CPU communicates with IC698MBR002 PROFIBUS master modules and IC698ETM001 Ethernet interface modules, enabling real-time data exchange with SCADA systems and condition monitoring dashboards.

On the I/O side, discrete and analog modules such as the IC698MDL740 output module and IC698ALG222 analog input module collect field-level signals from current transformers, pressure transducers, and temperature sensors — feeding the CPU with the data it needs to make dynamic energy decisions. When paired with GE’s IC695ALG600 universal analog I/O module, the system can monitor real-time power consumption at individual machine axes, enabling granular energy accounting across the production line.

For drive-level maintenance planning, the RX7i platform integrates seamlessly with GE’s AF-650GP series variable frequency drives (VFDs) via PROFIBUS or Modbus RTU. These drives regulate motor speed in response to actual load demand rather than running at fixed speed — a strategy that can help restore stable operation when a compatible replacement is required. The IC698PSA100’s stable DC bus ensures that the CPU and I/O modules maintain deterministic scan times even as VFD-induced electrical noise is present on the plant floor.

HMI integration through GE Quickpanel+ operator panels provides production staff with real-time visibility into energy KPIs, cycle counts, and alarm states — closing the feedback loop between energy data and operator action. The combination of the IC698PSA100, a capable CPU, distributed I/O, VFD control, and HMI visualization forms a complete maintenance-focused automation stack capable of supporting ISO 50001 maintenance planning objectives.

Maintenance and Replacement Notes

In discrete manufacturing environments — automotive body shops, electronics assembly lines, food and beverage packaging — the IC698PSA100 contributes to maintenance planning in several interconnected ways.

Reducing idle-state unplanned downtime: The RX7i CPU, powered by the IC698PSA100, can execute operational-efficiency ladder logic that detects machine idle states and triggers motor stop commands or VFD sleep modes after configurable timeout periods. On a line with 20 servo axes and 8 conveyor motors, this alone can reduce standby power draw by 15–25 kW during shift breaks and changeovers.

Optimizing production line throughput (takt time): Stable, regulated power from the IC698PSA100 ensures that the CPU scan cycle remains consistent — typically under 1 ms for a 10K-step program on the IC698CPE040. Consistent scan times translate directly into predictable motion control and tighter synchronization between upstream and downstream stations, reducing buffer inventory and the energy cost of re-running rejected parts.

Predictive maintenance and reduced unplanned downtime: By monitoring analog signals from vibration sensors, motor current transducers, and thermal probes through the RX7i I/O subsystem, maintenance teams can detect early signs of bearing wear, insulation degradation, or cooling fan failure before they cause a line stoppage. Unplanned downtime is one of the largest hidden energy costs in manufacturing — a 4-hour emergency repair on a 500 kW line wastes not only production time but also the energy consumed during restart warm-up cycles.

Inventory supply and availability subject to RFQ confirmation: ZYPLC maintains ready stock of the IC698PSA100 with pre-shipment functional testing. Each unit undergoes output voltage verification, load regulation testing, and thermal cycling before dispatch — ensuring that replacement modules arrive ready to install without additional bench testing delays. Combined with the warranty terms confirmed during quotation, this minimizes the risk and cost of sourcing replacement power supplies for critical production lines.

Product Sourcing FAQ

Q1: How does the IC698PSA100 contribute to measurable operational stability on the production line?
The IC698PSA100’s high conversion efficiency (≥88%) reduces the heat generated within the control cabinet, lowering the load on panel air conditioning or heat exchanger systems. More significantly, it provides the stable power foundation that allows the RX7i CPU to execute maintenance planning logic — including VFD speed control, motor idle-stop routines, and demand-based I/O scanning — reliably and without voltage-induced faults that would force energy-intensive restart sequences.

Q2: Is the IC698PSA100 compatible with my existing RX7i backplane and CPU modules?
Yes. The IC698PSA100 is designed specifically for the IC698 series backplanes used in the PACSystems RX7i platform. It is compatible with all standard RX7i CPU modules including the IC698CPE010, IC698CPE020, IC698CPE030, and IC698CPE040, as well as the full range of IC698 series I/O and communication modules. No firmware changes or adapter hardware are required for direct replacement installations.

Q3: Can the IC698PSA100 replace a failed power supply without reprogramming the PLC?
In most cases, yes. The IC698PSA100 is a direct form-fit-function replacement for compatible RX7i power supply positions. PLC programs stored in the CPU’s battery-backed RAM or flash memory are retained during a power supply swap, provided the CPU battery is in good condition. ZYPLC recommends verifying the CPU memory backup status before performing a hot-swap or powered-down replacement to avoid unintended program loss.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IC698PSA100 unit shipped by ZYPLC is subject to pre-shipment testing that includes input voltage range verification (85–264 VAC), output voltage accuracy check (+5 VDC and +24 VDC rails), load regulation testing at 25%, 50%, and 100% rated load, and a thermal soak to confirm stable operation under sustained load. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no charge, with priority dispatch to minimize production line downtime.
