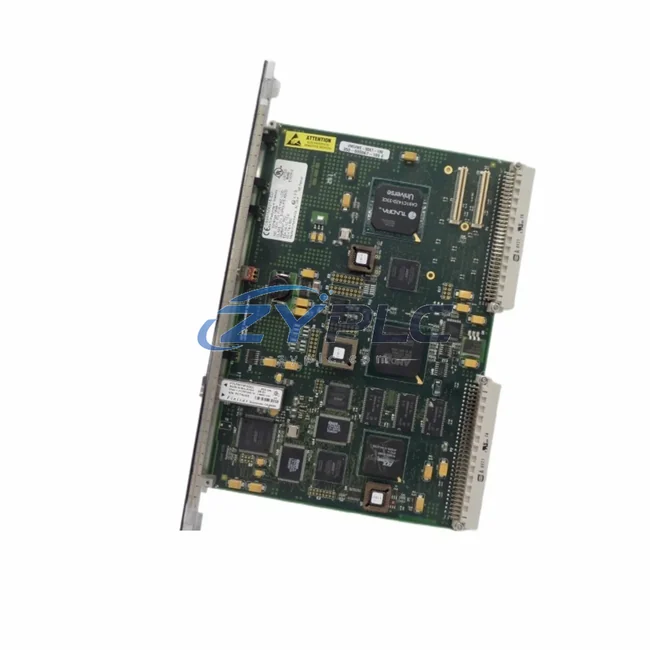

GE IC698RMX016-ED Redundant Memory Module RX7i

GE IC698RMX016-ED Redundant Memory Module for RX7i Automation

The GE IC698RMX016-ED is a high-performance Redundant Memory Xchange (RMX) module designed for the GE PACSystems RX7i control platform. In modern industrial environments where unplanned downtime translates directly into wasted energy and lost production throughput, this module plays a critical role in sustaining continuous, efficient machine operation. By enabling seamless memory synchronization between redundant CPU pairs — such as the IC698CPE040 and IC698CPE020 — the IC698RMX016-ED ensures that control logic, I/O states, and process variables are mirrored in real time, eliminating the energy-intensive restart cycles that follow unexpected controller failures.

In high-availability production lines — from automotive body welding cells to pharmaceutical batch reactors — the ability to maintain uninterrupted motor drive commands and PID loop outputs is essential for energy efficiency. When a primary CPU fails without redundancy, variable frequency drives such as the IC693ACC300-compatible drive systems must ramp down and restart, consuming significant inrush current and disrupting carefully tuned production rhythms. The IC698RMX016-ED prevents this scenario entirely, keeping drive references stable and motor loads operating within their optimal efficiency bands.

Product Specification Table

System Compatibility and Application

The IC698RMX016-ED operates within a broader industrial control architecture. In a typical RX7i redundant system, two IC698CPE040 CPUs are installed in separate chassis, each connected via the RMX module to maintain synchronized program and data memory. The active CPU continuously executes the control program — managing analog I/O through modules such as the IC698ALG232 (16-channel analog input) and digital outputs through the IC698MDL740 — while the standby CPU remains ready to assume control within milliseconds of a fault detection event.

This architecture integrates naturally with condition monitoring subsystems. Power quality meters and energy transducers connected through IC698ALG228 analog input modules feed real-time kWh and power factor data into the RX7i CPU, enabling the controller to dynamically adjust drive setpoints and reduce reactive power consumption. When paired with IC693MDL940 relay output modules, the system can shed non-critical loads during peak demand periods — a function that remains fully operational even during a CPU switchover event, thanks to the IC698RMX016-ED’s seamless memory transfer.

Communication continuity is equally important for maintenance planning. The RX7i platform supports IC698ETM001 Ethernet modules for SRTP and Modbus TCP communication, allowing SCADA and MES systems to maintain uninterrupted data polling during redundancy switchovers. Energy dashboards fed by these communication links continue to display accurate consumption trends without data gaps, enabling operators to make informed decisions about load scheduling and demand response without manual intervention.

For servo-driven axes — common in packaging, printing, and assembly lines — the IC698RMX016-ED ensures that motion profiles stored in the CPU are preserved across switchovers. This prevents the abrupt deceleration and re-homing sequences that waste both time and energy. Servo amplifiers receiving velocity and torque references from the RX7i via IC693CMM302 communication modules maintain their commanded trajectories, keeping cycle times consistent and energy consumption predictable.

Maintenance and Replacement Notes

Consider a continuous process plant running 24/7 — a paper mill, a water treatment facility, or a chemical blending line. In such environments, the cost of a single unplanned controller failure extends far beyond the immediate downtime. Restarting large induction motors and centrifugal pumps from zero speed draws three to seven times their rated current, stressing both the electrical infrastructure and the mechanical drivetrain. With the IC698RMX016-ED maintaining hot-standby redundancy, the RX7i controller seamlessly transfers control authority to the standby CPU without interrupting the motor drive commands issued through the plant’s variable speed drive network.

Predictive maintenance integration further amplifies these operational stability. Vibration and temperature data collected through field sensors and fed into the RX7i via analog input modules can be trended over time, allowing maintenance teams to schedule bearing replacements and lubrication intervals before efficiency-robbing mechanical degradation occurs. A motor running with worn bearings may consume 5–15% more energy than a well-maintained unit; the IC698RMX016-ED ensures the control system remains available to capture and act on this data continuously, without gaps caused by controller faults.

Production line throughput optimization is another direct benefit. In automotive stamping or injection molding operations, the RX7i CPU manages press cycle timing, clamp force control, and ejector sequencing. A CPU failover without memory synchronization would require the operator to re-establish process parameters manually — a process that can take 30 minutes or more and results in significant unplanned downtime as the line idles at partial load. The IC698RMX016-ED eliminates this scenario, keeping the line running at its designed cycle rate and energy efficiency point.

All units of the IC698RMX016-ED supplied by ZYPLC are sourced from verified supply channels, subjected to functional power-on testing, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, minimizing lead times for urgent maintenance and replacement requirements.

Product Sourcing FAQ

Q1: How does the IC698RMX016-ED contribute to operational stability in a PACSystems RX7i installation?
By maintaining hot-standby CPU redundancy with real-time memory synchronization, the IC698RMX016-ED prevents unplanned controller shutdowns that force variable frequency drives and motors to restart from zero speed. Eliminating these restart events removes the associated inrush current surges and keeps the production line operating at its optimized energy consumption point continuously.

Q2: Is the IC698RMX016-ED compatible with all RX7i chassis configurations?
The IC698RMX016-ED is designed for the GE PACSystems RX7i platform and is compatible with IC698 series backplane chassis. It works in conjunction with RX7i-compatible CPUs such as the IC698CPE040. For specific chassis slot and firmware version compatibility, consult the GE PACSystems RX7i System Manual or contact ZYPLC for application support.

Q3: Can this module replace a failed IC698RMX016 in an existing redundant system?
Yes. The IC698RMX016-ED is a direct replacement-compatible module for existing PACSystems RX7i redundant CPU configurations. ZYPLC recommends verifying the firmware revision of the installed CPUs prior to replacement to ensure compatibility. All units are tested prior to shipment and include a warranty terms confirmed during quotation for peace of mind.
