GE IC754VSF15CTD HMI for PACSystems

GE IC754VSF15CTD HMI for PACSystems

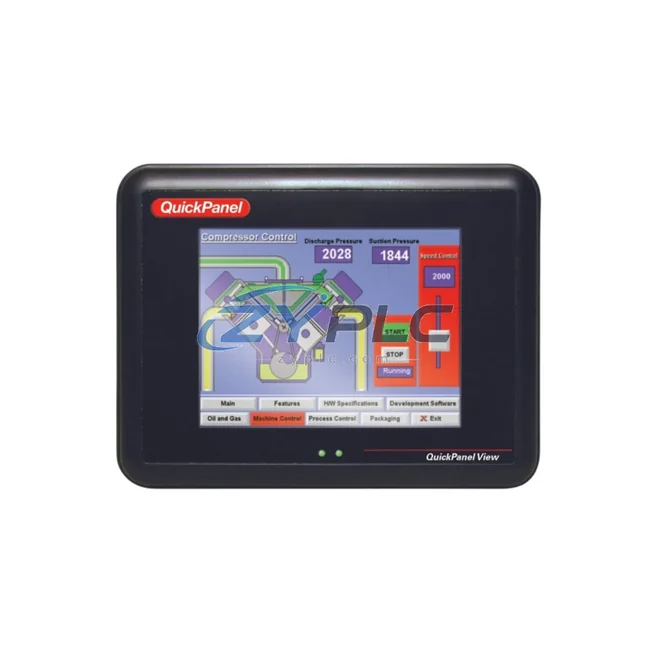

The GE IC754VSF15CTD QuickPanel Operator Interface is a purpose-engineered human-machine interface designed to serve as the visualization and supervisory layer within GE Fanuc PACSystems control architectures. Far from a standalone display unit, the IC754VSF15CTD functions as a critical node in a layered automation hierarchy — bridging the gap between field-level I/O, programmable logic controllers, communication networks, and plant-floor operators. Its 15-inch VGA color touchscreen, robust industrial enclosure rating, and native compatibility with PACSystems RX3i and RX7i platforms make it an indispensable component for engineers designing scalable, maintainable, and redundancy-capable control systems across demanding industrial environments.

In modern industrial automation, the human-machine interface is no longer simply a window into the process — it is an active participant in system architecture. The IC754VSF15CTD supports system integration, enabling it to exchange real-time data with upstream controllers, downstream actuators, and peer-level devices simultaneously. This capability ensures that operators receive coherent, synchronized process views regardless of the complexity of the underlying control topology. Whether deployed in a single-controller skid application or a multi-zone distributed control system, the IC754VSF15CTD maintains consistent communication integrity and display responsiveness.

System architects integrating the IC754VSF15CTD into a PACSystems environment benefit from its native Ethernet connectivity, which allows direct communication with PACSystems RX3i CPUs such as the IC695CPU310 and IC695CPU315 over standard TCP/IP networks. This eliminates the need for protocol conversion gateways in most configurations and reduces overall system latency. For installations requiring serial communication, the unit supports RS-232 and RS-485 interfaces, enabling legacy device integration without architectural compromise. The result is a flexible HMI platform that adapts to both greenfield designs and brownfield retrofit projects.

Product Specification Table

System Compatibility Notes

The IC754VSF15CTD achieves its full potential when deployed as part of a coordinated PACSystems control architecture. At the controller layer, it communicates directly with the IC695CPU315 or IC695CPU310 PACSystems RX3i CPUs, retrieving process variables, alarm states, and setpoint data in real time. These CPUs reside on the RX3i universal backplane — typically the IC695CHS016 16-slot chassis — alongside analog and digital I/O modules that feed field signals into the control logic.

On the I/O layer, the IC754VSF15CTD displays data sourced from modules such as the IC695ALG608 analog input module and the IC694MDL754 discrete output module, giving operators a live view of process values without requiring manual field inspection. When the system includes a IC695ETM001 Ethernet communications module, the HMI can participate in a multi-node Ethernet network alongside SCADA servers, historian platforms, and remote I/O adapters — all without dedicated point-to-point wiring.

For installations requiring communication with third-party devices or legacy PLCs, the IC695PBM300 PROFIBUS master module or the IC695CMM002 serial communications module can be integrated into the same RX3i rack, with the IC754VSF15CTD providing the operator interface for the entire multi-protocol system. In power-critical applications, the IC695PSA040 40-watt power supply module ensures stable 3.3 V and 5 V backplane power, protecting both the CPU and the HMI’s communication links from voltage fluctuations.

Where redundancy is required — such as in continuous process industries or critical infrastructure — the IC754VSF15CTD can be paired with a redundant CPU configuration using the IC695RMX128 redundancy memory exchange module, ensuring that operator displays remain accurate and responsive even during a controller switchover event. This level of architectural integration transforms the IC754VSF15CTD from a simple display into a resilient, system-aware interface that supports both normal operations and fault recovery scenarios.

Industrial Application Notes

The IC754VSF15CTD is deployed across a wide range of industrial sectors where reliable operator visualization is essential to process safety and efficiency. In power generation and distribution facilities, it provides real-time monitoring of generator excitation systems, switchgear status, and load balancing parameters — all within a NEMA 4-rated enclosure that withstands the electrical noise and temperature variations common in substation environments.

In petrochemical and refinery applications, the HMI serves as the primary operator station for distillation column control, heat exchanger management, and compressor sequencing. Its ability to display trend data, alarm histories, and setpoint adjustment screens simultaneously reduces operator response time during process upsets. The 15-inch display size is particularly valued in control room environments where multiple process areas must be monitored from a single panel.

For water and wastewater treatment plants, the IC754VSF15CTD integrates with PACSystems controllers managing pump stations, chemical dosing systems, and filtration processes. Its Ethernet connectivity supports remote monitoring configurations where a central SCADA system aggregates data from multiple IC754VSF15CTD units distributed across a treatment facility. In mining and mineral processing operations, the unit’s robust enclosure and wide operating temperature range make it suitable for installation in crusher control rooms, conveyor management panels, and flotation circuit operator stations.

Packaging and discrete manufacturing lines benefit from the IC754VSF15CTD’s fast screen refresh rates and touch responsiveness, enabling machine operators to adjust line speeds, monitor reject counts, and acknowledge alarms without interrupting production flow. In metallurgical and steel processing plants, the HMI supports furnace temperature visualization, rolling mill speed control interfaces, and quality inspection data entry — applications where display clarity and system responsiveness directly impact product quality and yield.

Product Compatibility FAQ

Q1: Is the IC754VSF15CTD compatible with both PACSystems RX3i and older Series 90-30 controllers in a mixed architecture?
Yes. The IC754VSF15CTD supports SRTP (Service Request Transport Protocol) communication natively, which is the standard protocol used by both PACSystems RX3i and Series 90-30 controllers. In a mixed architecture where legacy Series 90-30 racks coexist with newer RX3i systems, the HMI can maintain simultaneous connections to both controller families over Ethernet, providing a unified operator interface across the entire control hierarchy. No additional protocol converters or communication modules are required for this configuration, simplifying both commissioning and long-term maintenance.

Q2: How does the IC754VSF15CTD support system redundancy, and what happens to the HMI display during a CPU failover event?
When integrated with a PACSystems Hot Standby CPU redundancy configuration, the IC754VSF15CTD maintains its Ethernet connection to the system’s active CPU. During a failover event, the redundancy switchover is transparent to the HMI at the network level — the standby CPU assumes the active role and continues responding to SRTP requests from the HMI without requiring operator intervention or display reconfiguration. Process values, alarm states, and trend data continue to update normally within the switchover time window defined by the redundancy module. This behavior ensures that operators remain informed throughout fault recovery sequences, which is critical in continuous process and power generation applications.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
Every IC754VSF15CTD unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment, covering hardware defects, component failures, and functional non-conformance under normal operating conditions. Prior to shipment, each unit undergoes functional testing to verify display operation, communication port integrity, and power supply performance. For installation and commissioning support, ZYPLC’s technical team is available to assist with network configuration, driver compatibility verification, and PACSystems project integration guidance. Replacement units are dispatched promptly in the event of a warranty claim, minimizing system downtime and protecting your automation investment.
