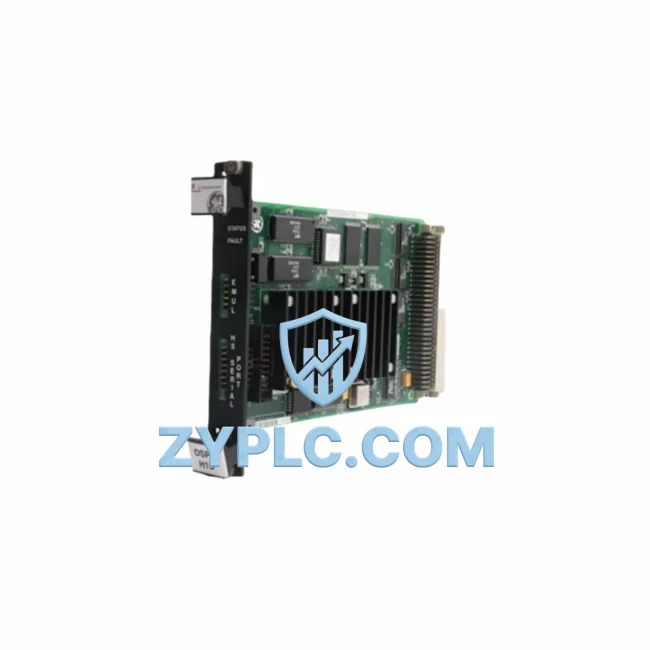

GE IS200DSPXH1CAA DSP Control Board for Mark VI Automation

GE IS200DSPXH1CAA DSP Control Board for Mark VI Automation

The GE IS200DSPXH1CAA is a high-performance Digital Signal Processing (DSP) control board engineered for the GE Mark VI turbine control system. Designed to maximize energy efficiency across gas turbine and steam turbine installations, this module serves as the computational core for real-time signal acquisition, closed-loop control execution, and drive coordination. In modern industrial facilities where equipment uptime and replacement lead time directly affect production continuity, the IS200DSPXH1CAA delivers the processing precision needed to eliminate wasteful operating cycles, reduce unnecessary fuel consumption, and extend the service intervals of rotating machinery.

At its core, the IS200DSPXH1CAA handles high-speed analog and digital signal processing tasks that govern turbine speed regulation, load sharing, combustion sequencing, and protective trip logic. By executing these functions with deterministic cycle times, the board ensures that the turbine operates within its optimal efficiency band at all times — avoiding the energy penalties associated with over-speed excursions, combustion instability, or delayed protective response. Facilities that have upgraded aging Mark V systems to Mark VI architecture with this DSP board consistently report measurable reductions in heat rate and auxiliary power consumption.

Product Specification Table

System Compatibility and Application

The IS200DSPXH1CAA does not operate in isolation — it functions as the intelligence layer within a tightly integrated Mark VI control architecture. Understanding how it interacts with surrounding components reveals why it is so effective at driving energy efficiency across the entire turbine system.

The board communicates directly with the IS200DTURH1ACB turbine I/O terminal board, which aggregates thermocouple, RTD, and speed sensor inputs from the turbine package. Accurate, low-latency sensor data is the foundation of efficient combustion control: without it, the DSP cannot make the precise fuel-flow corrections that keep heat rate within target. Alongside this, the IS200ERIOH1AAA expander I/O board extends the system’s ability to monitor auxiliary equipment — cooling fans, lube oil pumps, and inlet guide vane actuators — all of which contribute to parasitic energy losses if not properly supervised.

On the drive side, the IS200DSPXH1CAA coordinates with the IS200EPSMG2AED power supply module to ensure stable, conditioned voltage delivery to all control electronics. Voltage instability is a hidden source of control inaccuracy; a clean power supply directly supports the DSP’s ability to maintain tight control tolerances. For variable-speed auxiliary drives — such as cooling water pumps or compressor inlet fans — the Mark VI system interfaces with external variable frequency drives (VFDs) through the IS200ACLNH1ABA AC line interface board, enabling speed modulation that eliminates the unplanned downtime of fixed-speed operation.

The IS200VCRCH1BBB VME communications board handles high-speed data exchange between the DSP board and the plant DCS or SCADA layer, ensuring that energy performance data — heat rate, exhaust temperature profiles, fuel consumption rates — is continuously available to plant operators and maintenance planning systems. This real-time visibility is essential for identifying efficiency drift before it becomes a costly deviation. The IS200BPIIH1AEB backplane interconnect board ties all of these modules together within the Mark VI cabinet, providing the low-impedance signal paths that preserve data integrity across the control loop.

For combustion tuning and emissions compliance — both of which have direct energy efficiency implications — the IS200TREQH2BDC turbine reference board provides the timing and sequencing signals that the IS200DSPXH1CAA uses to optimize fuel staging. Paired with the IS200VPROH1BNN VME processor board for supervisory logic and the IS200SPROH1AAA speed relay output board for protective trip coordination, the complete Mark VI architecture delivers a closed-loop maintenance planning system that continuously adapts to changing load conditions, ambient temperatures, and fuel quality variations.

Maintenance and Replacement Notes

In combined-cycle power plants, every percentage point of heat rate improvement translates directly into fuel cost savings and reduced CO₂ emissions. The IS200DSPXH1CAA enables this by executing combustion reference calculations with the speed and precision that mechanical governors and older analog control systems cannot match. When load demand changes — whether due to grid frequency events or planned ramp sequences — the DSP board adjusts fuel flow and inlet guide vane position within milliseconds, preventing the over-fueling transients that waste energy and stress hot-section components.

In industrial compressor applications, the IS200DSPXH1CAA’s anti-surge control algorithms protect the compressor from operating in inefficient, high-recycle conditions. By detecting surge precursors early and commanding corrective action through the drive and valve control outputs, the board keeps the compressor on its optimal efficiency curve — reducing both energy consumption and mechanical wear simultaneously.

Predictive maintenance is another dimension of maintenance planning that the IS200DSPXH1CAA supports. By continuously monitoring vibration trends, exhaust temperature spreads, and bearing temperature differentials through the Mark VI I/O network, the system can flag developing faults — such as a degrading fuel nozzle or a failing inlet filter — before they cause efficiency losses or unplanned shutdowns. Planned maintenance windows are far less costly than emergency outages, both in direct repair costs and in the energy penalties of operating degraded equipment.

All units supplied by ZYPLC are fully tested under load conditions prior to shipment, with functional verification of all DSP channels, communication interfaces, and I/O signal paths. Stock availability is maintained to support urgent replacement requirements, and each IS200DSPXH1CAA is covered by a 12-month warranty from the date of shipment.

Product Sourcing FAQ

Q1: How does the IS200DSPXH1CAA contribute to measurable operational stability in a gas turbine plant?
The board executes real-time combustion reference and load control algorithms that keep the turbine operating at its optimal efficiency point. By eliminating control lag and reducing fuel-flow overshoot during transients, it directly reduces heat rate deviation — the primary metric of turbine energy efficiency.

Q2: Is the IS200DSPXH1CAA compatible with both Mark VI and Mark VIe control systems?
The IS200DSPXH1CAA is designed for the GE Mark VI platform. Compatibility with Mark VIe configurations should be verified against your specific system revision and cabinet layout. ZYPLC’s technical team can assist with cross-reference verification prior to purchase.

Q3: What is the recommended replacement process when swapping out a failed DSP board?
The replacement procedure involves powering down the affected controller, removing the failed board from the VME backplane, installing the IS200DSPXH1CAA, and performing a configuration download from the Mark VI toolbox software. ZYPLC supplies boards that are pre-tested and ready for installation, minimizing the time the turbine is offline.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Each IS200DSPXH1CAA supplied by ZYPLC undergoes functional testing of all DSP processing channels, communication ports, and I/O interfaces before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with direct support from ZYPLC’s technical team throughout the warranty period.
