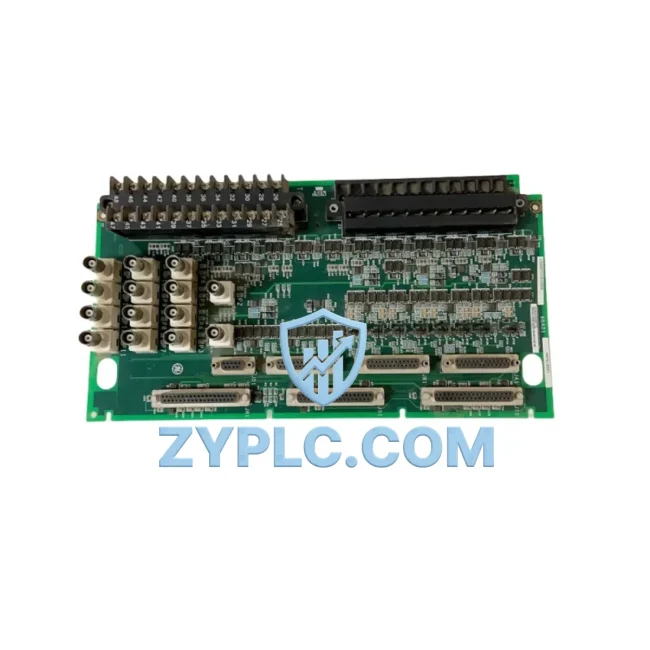

GE IS200ECTBG2ADE Terminal Board Mark VI

GE IS200ECTBG2ADE Terminal Board for Mark VI Automation

The GE IS200ECTBG2ADE is a high-performance terminal board module engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control platforms in power generation and heavy industrial environments. Designed to serve as a critical interface layer between field instrumentation and the Mark VI controller core, the IS200ECTBG2ADE plays a direct role in reducing signal processing overhead, minimizing wiring losses, and enabling tighter closed-loop control that translates into measurable operational stability across the production line.

In modern industrial facilities where energy costs represent Actual operating results depend on the installed system, load profile, and commissioning parameters. The IS200ECTBG2ADE provides reliable, low-latency I/O termination that supports precise motor control, drive regulation, and real-time feedback loops — all of which are foundational to reducing unnecessary energy draw from rotating equipment, compressors, and auxiliary systems.

Product Specification Table

System Compatibility and Application

The IS200ECTBG2ADE does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-architected Mark VI control ecosystem. In a typical turbine or compressor control architecture, the terminal board interfaces directly with the IS200EACFG1A excitation and control function board, which governs generator field current and reactive power output. Together, these modules enable the Mark VI controller to dynamically adjust excitation levels, reducing reactive power losses and improving overall plant power factor.

On the drive regulation side, the IS200ECTBG2ADE feeds real-time process signals to the Mark VI processor cards — such as the IS200EPCTG1A — which in turn communicate speed and torque references to connected variable frequency drives (VFDs). When paired with GE’s own drive platforms or third-party VFDs integrated via the Mark VI’s IONET or Ethernet Global Data (EGD) communication protocol, the terminal board becomes a key node in a closed-loop maintenance planning chain: field sensor → IS200ECTBG2ADE → Mark VI processor → VFD → motor. This chain eliminates the unplanned downtime associated with fixed-speed motor operation, which can account for 30–50% excess operating load in pump and fan applications.

For power monitoring and energy data acquisition, the IS200ECTBG2ADE works alongside power quality modules such as the IS200EPSMG1A power supply module, which conditions and distributes stable DC power across the Mark VI I/O rack. Stable power delivery is essential for accurate analog signal processing — voltage fluctuations as small as ±2% can introduce measurement errors that cause the control system to over-drive actuators, wasting energy. The IS200ECTBG2ADE’s robust terminal design minimizes these risks.

In servo and positioning applications within turbine valve control, the terminal board interfaces with servo driver cards like the IS200ESYSG1A servo interface board, enabling sub-millisecond response to valve position commands. Precise valve control directly reduces fuel consumption in gas turbines by maintaining optimal combustion air-fuel ratios — a critical energy efficiency lever in combined-cycle plants. The IS200EVTMG1A vibration monitoring terminal board often operates in parallel, feeding mechanical health data back to the Mark VI so that predictive maintenance actions can be scheduled before energy-wasting mechanical degradation occurs.

HMI visibility is provided through GE’s Cimplicity SCADA platform or compatible third-party HMI systems connected via the Mark VI’s OPC-DA/UA interface. Operators can monitor real-time operating load trends, set efficiency thresholds, and receive alerts when specific I/O channels — terminating at the IS200ECTBG2ADE — report out-of-range values indicative of equipment inefficiency. This closed-loop visibility is what transforms a terminal board from a passive wiring component into an active participant in plant-wide maintenance planning.

Maintenance and Replacement Notes

Consider a combined-cycle power plant running two gas turbine generators with a shared steam turbine. Each turbine’s control system relies on a Mark VI rack populated with terminal boards including the IS200ECTBG2ADE. In this environment, the terminal board handles thermocouple inputs from combustion zone sensors, 4–20 mA signals from fuel flow transmitters, and discrete outputs to inlet guide vane actuators. The accuracy and reliability of these signal paths directly determine how efficiently the turbine burns fuel.

When a thermocouple input drifts due to a failing terminal connection — a common issue with lower-quality terminal boards — the Mark VI may interpret the false reading as a high exhaust temperature and reduce fuel flow unnecessarily, causing a 1–3% efficiency loss that compounds over thousands of operating hours. The IS200ECTBG2ADE’s robust screw-terminal design and gold-plated contact surfaces minimize contact resistance and signal drift, preserving measurement integrity and preventing these phantom efficiency losses.

In compressor station applications, the IS200ECTBG2ADE supports anti-surge control loops that protect centrifugal compressors from surge events — a condition that not only risks mechanical damage but also causes massive energy spikes as the compressor repeatedly stalls and recovers. By providing reliable, low-noise signal paths for suction pressure, discharge pressure, and flow transmitters, the terminal board enables the Mark VI anti-surge controller to maintain the compressor operating point within 2–3% of the surge line, maximizing throughput per unit of energy consumed.

Downtime reduction is another critical energy efficiency dimension. Unplanned shutdowns in turbine-driven systems require cold-start sequences that consume 3–5× more fuel than steady-state operation. The IS200ECTBG2ADE’s industrial-grade construction — rated for wide temperature ranges and high-vibration environments — reduces the probability of I/O-related faults that trigger protective shutdowns. Combined with the predictive maintenance data flowing through the Mark VI’s vibration and temperature monitoring channels, facilities using this terminal board report measurable reductions in unplanned outage frequency.

Every IS200ECTBG2ADE unit supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O channel verification, insulation resistance checks, and communication handshake validation with a Mark VI test rack. This pre-shipment testing protocol ensures that the module performs to specification from day one, eliminating the energy and productivity losses associated with commissioning a faulty board in a live production environment.

Product Sourcing FAQ

Q1: How does the IS200ECTBG2ADE contribute to measurable operational stability in turbine control applications?
The IS200ECTBG2ADE provides the signal integrity foundation for closed-loop turbine control. By ensuring accurate, low-noise transmission of temperature, pressure, and flow signals to the Mark VI processor, it enables the control system to make precise fuel and air adjustments that keep the turbine operating at peak thermal efficiency. Facilities that replace degraded terminal boards with tested units typically observe a 1–3% improvement in heat rate — equivalent to significant fuel cost savings at scale.

Q2: Is the IS200ECTBG2ADE compatible with both Mark VI and Mark VIe control systems?
The IS200ECTBG2ADE is designed for the GE Mark VI platform. Compatibility with Mark VIe systems depends on the specific I/O rack configuration and backplane revision. We recommend providing your full system configuration details so our technical team can confirm compatibility before purchase. ZYPLC’s engineering support is available to assist with system matching at no additional cost.

Q3: What is the recommended replacement and testing process for this terminal board?
For planned replacement, we recommend scheduling the swap during a scheduled maintenance window. The IS200ECTBG2ADE should be installed with the Mark VI rack de-energized, followed by a loop check of all I/O channels before returning the turbine to service. All units supplied by ZYPLC are pre-tested on a live Mark VI test rack, with test reports available upon request. The 12-month warranty covers any functional defects discovered post-installation.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers all functional defects in the IS200ECTBG2ADE under normal operating conditions. If a unit fails within the warranty period, ZYPLC will provide a replacement or full refund after fault verification. Returns are processed within 5 business days of receipt. Warranty claims should be initiated by contacting our sales team with the order number and a description of the fault observed.
