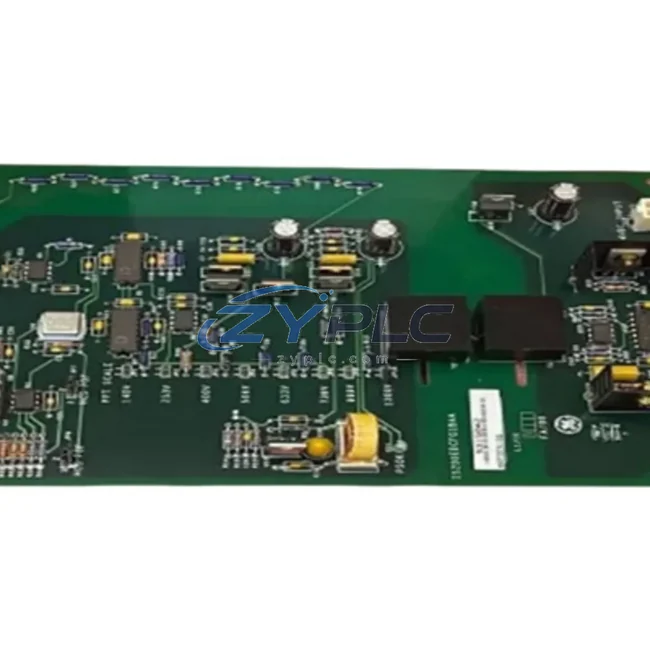

GE IS200EDCFG1BAA Exciter DC Feedback EX2100

GE IS200EDCFG1BAA Exciter DC Feedback EX2100: Replacement and Sourcing Information for Industrial Power Lines

The GE IS200EDCFG1BAA is a high-performance Exciter DC Feedback Module engineered for the GE EX2100 Digital Excitation Control System. Designed to deliver precise voltage regulation and real-time DC feedback in turbine-generator excitation circuits, this module plays a critical role in reducing reactive power losses, stabilizing generator output, and minimizing unplanned downtime risk across power generation and heavy industrial automation environments. Every unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

In a modern power generation facility, excitation control is the backbone of generator stability and energy efficiency. The GE IS200EDCFG1BAA integrates directly into the EX2100 excitation control platform, working in concert with a layered automation architecture to ensure that every watt of electrical energy is precisely managed.

At the field level, the IS200EDCFG1BAA captures real-time DC voltage and current feedback from the generator exciter circuit. This data is fed into the GE IS200EACFG1A Analog Control Board, which processes the analog signals and translates them into actionable control commands. The IS200EPSMG1A Power Supply Module ensures stable, conditioned power delivery to all EX2100 boards, preventing voltage fluctuations that could introduce measurement errors or increase standby energy draw.

For digital communication and supervisory control, the EX2100 system relies on the IS200ECTBG1A Communication Terminal Board to interface with plant-level SCADA and DCS platforms. This enables operators to monitor excitation parameters, generator reactive power output (MVAR), and field current in real time — critical data for energy dispatch optimization. The IS200EPDMG1A Power Distribution Module manages internal bus power routing, ensuring that control boards including the IS200EDCFG1BAA receive clean, regulated supply without cross-interference.

On the drive and motor control side, facilities running combined turbine-motor systems often pair EX2100 excitation control with GE Drive Systems such as the GE AF-600 FP Variable Frequency Drive for auxiliary motor loads — cooling fans, feedwater pumps, and compressors. By coordinating excitation feedback from the IS200EDCFG1BAA with VFD speed references, plant engineers can synchronize generator output with variable auxiliary loads, dramatically reducing reactive power demand and improving overall plant power factor.

The IS200ETURH1A Turbine Control Board and IS200EHVAG1A High Voltage Analog Board complement the IS200EDCFG1BAA in the EX2100 rack, forming a complete excitation feedback and control chain. Together, these modules enable closed-loop voltage regulation with millisecond response times — essential for preventing generator hunting, reducing thermal stress on rotor windings, and extending the operational lifespan of excitation equipment. The IS200EDCFG1BAA sits at the heart of this feedback loop, making it indispensable for any facility seeking to optimize generator efficiency and reduce unplanned downtime at the source.

Maintenance and Replacement Notes

In practical power plant operations, excitation instability is one of the leading causes of generator inefficiency, unplanned downtime, and elevated maintenance costs. When the exciter DC feedback signal is inaccurate or delayed, the EX2100 control system cannot respond correctly to load changes, resulting in voltage oscillations, reactive power surges, and increased rotor current — all of which translate directly into wasted energy and accelerated equipment wear.

The GE IS200EDCFG1BAA addresses these challenges by providing a high-fidelity, low-latency DC feedback signal that allows the EX2100 to maintain tight voltage regulation across the full load range. In gas turbine power plants, this means the generator can track grid voltage requirements precisely during load ramp-up and ramp-down cycles, avoiding the reactive power spikes that trigger penalty charges from grid operators. In steam turbine facilities, stable excitation feedback reduces the frequency of automatic voltage regulator (AVR) corrections, lowering the thermal cycling stress on exciter windings and extending mean time between maintenance (MTBM).

From a production line rhythm perspective, stable generator excitation directly supports the reliability of downstream industrial loads. Variable frequency drives, servo systems, and high-power process equipment all depend on stable grid voltage for consistent performance. When excitation control is through accurate DC feedback, voltage sags and swells are minimized, reducing nuisance trips of sensitive Automation equipment and improving overall production line uptime.

Predictive maintenance is another key benefit. Because the IS200EDCFG1BAA provides continuous, high-resolution DC feedback data to the EX2100 control system, maintenance teams can monitor trends in exciter field current and voltage regulation error over time. Gradual degradation in excitation performance — often a precursor to rotor winding failure or rectifier diode deterioration — can be detected weeks before a forced outage occurs, allowing planned maintenance to replace components during scheduled downtime rather than emergency shutdowns.

All units of the GE IS200EDCFG1BAA available through ZYPLC are held in verified inventory, undergo comprehensive functional testing simulating real EX2100 operating conditions, and ship with full documentation. The warranty terms confirmed during quotation covers all functional defects, giving plant engineers and procurement teams confidence in both the quality and the long-term value of every purchase.

Product Sourcing FAQ

Q1: How does the IS200EDCFG1BAA contribute to operational stability in a power plant?
The IS200EDCFG1BAA provides precise DC excitation feedback to the GE EX2100 AVR, enabling tight closed-loop voltage regulation. This minimizes reactive power losses, reduces unnecessary field current draw, and prevents the unplanned downtime associated with voltage oscillations and AVR over-corrections. Plants with stable excitation control typically see measurable improvements in generator power factor and a reduction in reactive power penalties from grid operators.

Q2: Is the IS200EDCFG1BAA compatible with all EX2100 system configurations?
The IS200EDCFG1BAA is designed specifically for the GE EX2100 Digital Excitation Control System and is compatible with standard EX2100 rack configurations used in gas turbine, steam turbine, and hydro generator applications. If you are integrating this module into a modified or upgraded EX2100 system, our technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement process for a failed IS200EDCFG1BAA?
Replacement should be performed during a planned maintenance window with the excitation system de-energized and locked out. The module slots directly into the EX2100 rack and requires no field calibration in most standard configurations — the EX2100 system performs automatic self-calibration upon restart. We recommend retaining the failed module for root cause analysis to identify any upstream issues (such as power supply instability from the IS200EPSMG1A) that may have contributed to the failure.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IS200EDCFG1BAA unit is functionally tested under simulated EX2100 operating conditions before shipment, verifying DC feedback accuracy, signal integrity, and board-level communication. The warranty terms confirmed during quotation covers all functional defects arising from manufacturing or component quality issues. Units that fail in service within the warranty period are eligible for replacement or repair. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim.
