GE IS200ESELH1A Industrial Network Interface for Mark VI Systems

GE IS200ESELH1A: Industrial Data Link and Smart Factory Connectivity for Mark VI Systems

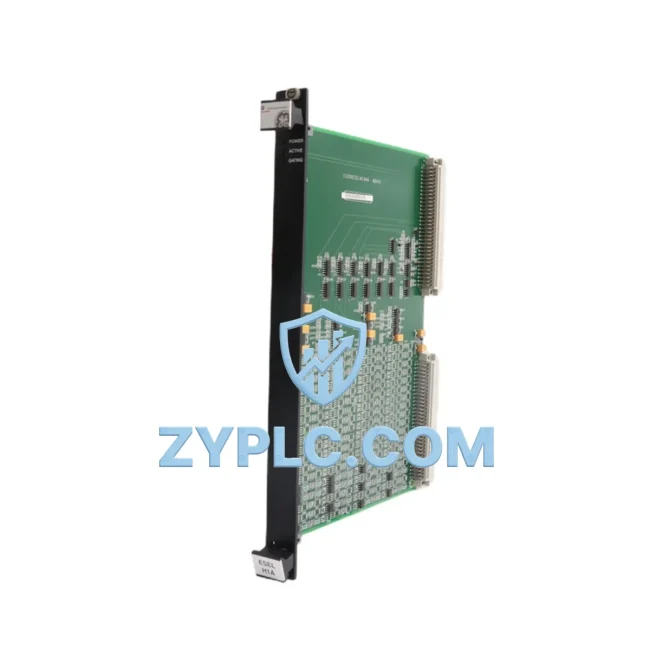

The GE IS200ESELH1A (also known as IS200ESELH1AAA) is a precision-engineered Exciter Selector Board designed for the GE Mark VI turbine control platform. Far beyond a simple switching module, the IS200ESELH1A functions as a critical node in the industrial data chain — bridging excitation control signals, real-time feedback loops, and supervisory communication layers within power generation and heavy industrial environments. In smart factory and distributed control architectures, this board ensures that excitation selection logic is executed with deterministic timing, enabling seamless data flow between field devices, PLC controllers, SCADA systems, and HMI interfaces.

Network Communication Table

Connected Automation Data Flow

Within a GE Mark VI turbine control system, the IS200ESELH1A sits at the intersection of excitation management and real-time control data routing. The data flow begins at the generator field — voltage and current sensors transmit analog signals to the Mark VI I/O pack layer, where boards such as the IS200VTURH1B (Turbine Protection Board) and IS200DSPXH1B (Digital Signal Processor) pre-process and condition the incoming data streams. The IS200ESELH1A then arbitrates between redundant excitation channels, ensuring that the active exciter path is selected based on real-time health diagnostics and control logic executed by the UCSC (Unit Controller) processor card.

Upstream, the Mark VI controller communicates over IONet — GE’s proprietary industrial Ethernet backbone — transmitting real-time turbine state data to the plant-level SCADA system. Operators monitoring the Cimplicity HMI or third-party SCADA platforms receive live excitation status, alarm conditions, and trip signals with sub-second latency. The IS200ESELH1A plays a direct role in this chain: its selector output feeds into the excitation control loop, which is continuously logged and trended by the ToolboxST engineering workstation for predictive maintenance and remote diagnostics.

For plants integrating GE Mark VI with broader DCS architectures — such as those using IS200BICLH1A (Bus Interface and Communication Board) or IS200TREGH1B (Turbine Regulation Board) — the IS200ESELH1A ensures that excitation switching events are synchronized with the overall control sequence, preventing transient disturbances from propagating into the power network. Remote I/O expansion modules and fiber-optic signal conditioners further extend the reach of this data chain to remote generator terminals and switchyard equipment, enabling full-plant visibility from a centralized SCADA node.

In combined-cycle power plants, the IS200ESELH1A works in concert with IS200EXHSG1A (Exciter Hardware Signal Board) and IS200EDEXH1A (Exciter Diode Evaluation Board) to form a complete excitation monitoring and control subsystem. Variable frequency drives (VFDs) connected to auxiliary motor loads also report status back through the Mark VI I/O network, with the IS200ESELH1A’s switching logic ensuring that excitation remains stable during load transitions and grid disturbances.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power plant and heavy industrial environments is data isolation — where critical excitation and generator control data remains siloed within proprietary control systems, invisible to plant-level SCADA, ERP, or remote monitoring platforms. The GE IS200ESELH1A directly addresses this by maintaining a live, redundant excitation selection state that is continuously broadcast over the Mark VI IONet backbone, making real-time excitation data available to any connected supervisory system.

Protocol unification is another key value: the Mark VI platform’s IONet architecture allows the IS200ESELH1A’s operational data to be translated via SCADA gateways into standard industrial protocols — including Modbus TCP, OPC-UA, and DNP3 — enabling integration with third-party DCS platforms, historian databases, and cloud-based analytics systems without requiring hardware replacement. This dramatically reduces the cost and complexity of digital transformation projects in brownfield power generation facilities.

For remote diagnostics and predictive maintenance, the IS200ESELH1A’s channel selection status and fault flags are continuously logged by the ToolboxST workstation, enabling maintenance engineers to detect excitation anomalies, channel degradation, or selector switching irregularities before they escalate into unplanned outages. Alarm thresholds can be configured remotely, and historical trend data supports root-cause analysis without requiring on-site intervention.

System scalability is built into the Mark VI architecture: additional I/O boards, communication modules, and excitation control cards can be added to the control cabinet without disrupting the existing network topology. The IS200ESELH1A’s standardized backplane interface ensures forward compatibility with Mark VIe upgrades, protecting capital investment while enabling incremental modernization of the control infrastructure.

Every IS200ESELH1A unit shipped by ZYPLC undergoes comprehensive functional testing — including channel switching verification, signal integrity checks, and communication handshake validation — prior to dispatch. In-stock availability ensures rapid deployment for emergency replacements and planned maintenance windows, with global DHL/FedEx logistics supporting next-day delivery to major industrial hubs.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IS200ESELH1A support within the Mark VI network?
The IS200ESELH1A operates within the GE Mark VI control architecture, which uses IONet (GE’s proprietary industrial Ethernet) and ARCNET for inter-board communication. At the supervisory level, Mark VI SCADA gateways can translate this data into Modbus TCP, OPC-UA, or DNP3 for integration with third-party DCS and historian systems. The board itself does not require external protocol configuration — it communicates natively over the Mark VI backplane.

Q2: How does the IS200ESELH1A ensure network stability and redundancy in critical excitation control applications?
The IS200ESELH1A is designed for TMR (Triple Modular Redundancy) architectures common in GE Mark VI installations. It continuously monitors both excitation channels and executes automatic switchover logic in the event of a channel fault, with switchover times measured in milliseconds. This ensures uninterrupted excitation control even during hardware faults, maintaining generator stability and preventing grid disturbances.

Q3: Can the IS200ESELH1A be integrated with modern SCADA and HMI systems without replacing the entire Mark VI platform?
Yes. The GE Mark VI platform supports SCADA integration via dedicated communication gateways that expose real-time excitation data — including IS200ESELH1A selector status and alarm flags — to Cimplicity HMI, iFIX, Wonderware, and other industry-standard SCADA platforms. OPC-UA server configuration within ToolboxST enables seamless data exchange without hardware modification, making the IS200ESELH1A fully compatible with modern industrial IoT and digital twin architectures.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every GE IS200ESELH1A supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes a full functional test protocol including excitation channel switching verification, backplane communication handshake testing, signal integrity measurement, and visual inspection for component damage. Test records are available upon request. Expedited replacement is available for warranty claims to minimize plant downtime.
