GE IS200GGXIG1AED Network Interface for Mark VI Systems

GE IS200GGXIG1AED: Industrial Data Link for Mark VI Speedtronic Network Systems

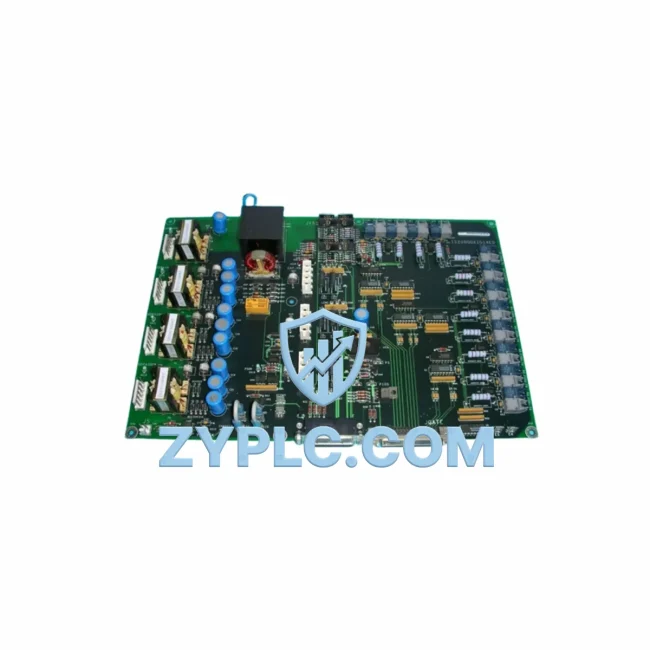

The GE IS200GGXIG1AED is a high-performance Speedtronic Communication Gateway module engineered for the GE Mark VI turbine control platform. Designed to serve as a critical industrial network interface, this module bridges field-level devices — including sensors, actuators, and remote I/O — with upper-level control and monitoring systems such as SCADA, HMI, and distributed control networks. In smart factory and power generation environments where data continuity, protocol compatibility, and real-time responsiveness are non-negotiable, the IS200GGXIG1AED delivers the connectivity backbone that modern industrial automation demands.

From signal acquisition at the turbine instrumentation layer to protocol conversion across heterogeneous control networks, this gateway module ensures that every data point — whether from thermocouples, pressure transmitters, or vibration sensors — reaches the control room with minimal latency and maximum fidelity. Its role in the Mark VI architecture spans real-time monitoring, alarm feedback, remote diagnostics, and seamless integration with enterprise-level data systems.

Network Communication Table

Connected Automation Data Flow

In a typical Mark VI turbine control architecture, the IS200GGXIG1AED sits at the intersection of field instrumentation and supervisory control, orchestrating data flow across multiple layers of the automation hierarchy. At the field level, process signals from thermocouples, RTDs, and pressure transmitters are collected by I/O modules such as the IS200BICLH1AED (Analog I/O board) and the IS200BPIIH1AEE (Process Interface board), which condition and digitize raw sensor data before passing it upstream through the Mark VI backplane.

The IS200GGXIG1AED then assumes responsibility for translating these signals into network-compatible data packets, enabling communication with the IS200VCRCH1BBB (Voltage Regulator Control board) and the IS200VTURH1BAC (Turbine Control board), both of which rely on accurate, low-latency data to execute closed-loop control algorithms. Simultaneously, the gateway maintains a live data channel to the plant’s SCADA system, ensuring that operators at the HMI workstation receive continuous, up-to-date process visibility.

For drive and excitation control integration, the IS200GGXIG1AED interfaces with the IS200EPSMG1AED (Exciter Power Supply module) and the IS200ERIOH1AAA (Exciter Relay I/O board), enabling coordinated control between the turbine governor and the generator excitation system. Alarm signals from the IS200SPROH1AAA (Protection Relay Output board) are also routed through the gateway, ensuring that trip events and protection actions are immediately reflected in the SCADA alarm management system.

At the network edge, the IS200GGXIG1AED supports connectivity to industrial Ethernet switches and edge gateways, enabling data aggregation for cloud-based analytics platforms and remote diagnostic tools. The IS200TREQH1BBA (Turbine Rotor Equivalent board) further extends the data acquisition chain, feeding rotor dynamics data into the gateway for transmission to condition monitoring systems. This end-to-end data flow — from sensor to cloud — is what makes the IS200GGXIG1AED an indispensable component in any Mark VI-based smart factory or power generation facility.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy PLCs, modern distributed control systems, third-party HMI platforms, and cloud-based SCADA solutions often speak entirely different protocol languages, creating data silos that impede real-time decision-making and predictive maintenance.

The GE IS200GGXIG1AED directly addresses this challenge by acting as a universal protocol bridge within the Mark VI ecosystem. Its support for ARCNET, IONet, Modbus TCP, and standard Ethernet TCP/IP means that data generated at the turbine control level can be seamlessly consumed by any SCADA or HMI platform without custom middleware or proprietary integration layers. This eliminates the data isolation that typically plagues multi-vendor industrial environments.

For production line transparency, the IS200GGXIG1AED enables real-time KPI dashboards that aggregate data from across the turbine control system — including rotor speed, exhaust temperature, fuel flow, and vibration levels — into a single, unified view accessible from any networked workstation. Remote diagnostics capabilities allow maintenance engineers to interrogate the control system from off-site locations, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System scalability is another key advantage. As plant operators expand their automation footprint — adding new turbine units, integrating renewable energy sources, or deploying additional remote I/O nodes — the IS200GGXIG1AED’s network architecture accommodates growth without requiring fundamental changes to the communication infrastructure. Every unit shipped undergoes rigorous factory acceptance testing (FAT), and all IS200GGXIG1AED modules supplied by ZYPLC are covered by a 12-month warranty, with in-stock availability ensuring rapid deployment to minimize project lead times.

Industrial Connectivity FAQ

Q1: What communication protocols does the IS200GGXIG1AED support, and is it compatible with third-party SCADA systems?
The IS200GGXIG1AED supports ARCNET, IONet, Modbus RTU/TCP, and Ethernet TCP/IP, making it compatible with a wide range of SCADA and HMI platforms including GE iFIX, Wonderware, and Ignition. Protocol bridging between the Mark VI backplane and standard industrial Ethernet networks is handled natively by the module.

Q2: How does the IS200GGXIG1AED ensure network stability in high-noise industrial environments?
The module is designed to GE’s Speedtronic reliability standards, incorporating noise-immune communication circuitry and deterministic network protocols that maintain data integrity even in electrically noisy environments typical of power generation facilities. Redundant communication paths can be configured within the Mark VI architecture to further enhance network resilience.

Q3: Can the IS200GGXIG1AED be integrated into an existing Mark VI system without a full control system upgrade?
Yes. The IS200GGXIG1AED is designed as a plug-compatible replacement and expansion module within the Mark VI platform. It can be integrated into existing control cabinets without requiring firmware upgrades to other Mark VI boards, provided the system software version is compatible. ZYPLC’s technical team can advise on compatibility prior to shipment.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All IS200GGXIG1AED modules supplied by ZYPLC undergo functional testing prior to shipment, verifying communication interface integrity, backplane connectivity, and protocol handshake performance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for warranty claims to minimize operational disruption.
