GE IS200STCIH6AED Industrial Network Interface for Mark VI Systems

GE IS200STCIH6AED: Industrial Data Link for Mark VI Smart Factory Connectivity

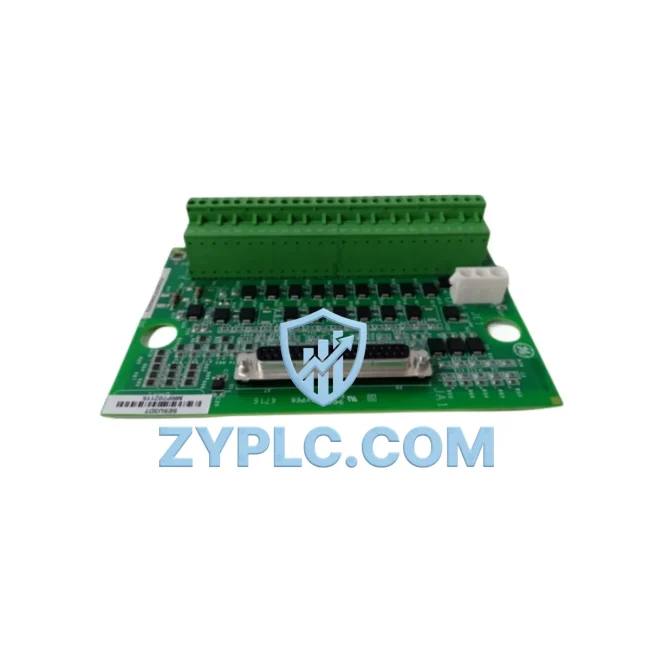

The GE IS200STCIH6AED is a high-performance Ethernet control board engineered for the GE Mark VI turbine control platform. Designed to serve as the critical network interface between field-level devices and upper-layer supervisory systems, this board enables seamless, real-time data exchange across the full automation hierarchy — from signal acquisition at the sensor level all the way to SCADA dashboards and enterprise MES platforms. In modern smart factory and power generation environments, reliable industrial communication is not optional; it is the backbone of operational transparency, predictive maintenance, and remote diagnostics.

The IS200STCIH6AED integrates directly into the Mark VI control cabinet, providing a dedicated Ethernet communication path that bridges the turbine control system with plant-wide networks. Whether your facility runs a Modbus TCP backbone, an OPC-UA data highway, or a proprietary GE control network, this board ensures that real-time process values — including rotor speed, exhaust temperature, vibration amplitude, and fuel flow — are continuously streamed to connected HMI terminals and SCADA servers without latency or data loss.

Network Communication Table

Connected Automation Data Flow

In a typical Mark VI-based turbine control architecture, the IS200STCIH6AED acts as the Ethernet gateway node that connects the turbine’s local I/O network to the plant supervisory layer. At the field level, analog and digital signals from thermocouples, pressure transmitters, proximity sensors, and flame detectors are collected by GE IS200TBCIH1C terminal boards and routed through the Mark VI I/O pack assemblies. These raw signals are conditioned and digitized before being passed to the core controller — typically a GE IS215VCMIH2C VME controller module — where the turbine protection and sequencing logic executes in real time.

The IS200STCIH6AED then takes the processed data from the controller backplane and transmits it over the plant Ethernet network to the operator HMI station running GE Cimplicity or ToolboxST engineering software. Simultaneously, the board feeds live process variables to the plant SCADA server, enabling operators to monitor turbine load, exhaust spread, compressor discharge pressure, and lube oil temperature from a centralized control room. In multi-unit power plants, the same Ethernet segment may carry data from several Mark VI controllers, with the IS200STCIH6AED on each unit ensuring synchronized, timestamped data delivery to the historian.

For facilities integrating GE turbine controls with third-party automation platforms — such as Siemens S7-400 PLCs managing balance-of-plant systems, or Rockwell ControlLogix controllers handling auxiliary equipment — a protocol gateway such as the Moxa MGate MB3480 or HMS Anybus X-Gateway can be deployed alongside the IS200STCIH6AED to bridge Modbus TCP and EtherNet/IP domains. Remote I/O expansion using GE IS200BIASH2A bias boards and IS200TRLYH1C relay output boards further extends the data acquisition reach without adding communication latency. Variable frequency drives controlling cooling fans and fuel pumps — such as the GE AF-600FP series — can also be networked via Modbus TCP, with their speed references and fault codes aggregated through the same Ethernet infrastructure that the IS200STCIH6AED anchors.

Edge computing nodes deployed at the turbine skid level can subscribe to the IS200STCIH6AED’s data stream to perform local analytics — detecting bearing wear trends, combustion instability patterns, or compressor fouling signatures — before forwarding condensed diagnostic reports to cloud-based asset performance management platforms. This layered architecture, with the IS200STCIH6AED at its core, transforms a standalone turbine control system into a fully connected node within the smart factory ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power generation and industrial facilities is protocol fragmentation. Older turbine control systems often rely on proprietary serial communication buses that cannot natively interface with modern Ethernet-based SCADA or MES platforms. The result is data isolation: critical turbine parameters remain locked within the control cabinet, invisible to plant-wide monitoring systems and inaccessible for predictive maintenance algorithms.

The GE IS200STCIH6AED directly addresses this challenge by providing a standards-compliant Ethernet interface that integrates the Mark VI controller into the plant network without requiring a full control system replacement. Operators gain real-time visibility into turbine performance metrics through existing HMI and SCADA infrastructure, eliminating the need for manual data logging or on-site inspection rounds. Alarm events — including over-temperature trips, vibration exceedances, and flame-out conditions — are immediately propagated to the SCADA alarm management system, enabling faster operator response and reducing mean time to repair.

For facilities pursuing production line transparency and OEE (Overall Equipment Effectiveness) improvement, the IS200STCIH6AED enables the turbine to contribute its availability, performance, and quality data to the plant-wide OEE calculation in real time. System expansion is equally straightforward: additional Mark VI controllers, remote I/O racks, or third-party field devices can be added to the Ethernet segment without disrupting existing communication paths, supporting phased digitalization projects without costly downtime.

Every IS200STCIH6AED unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying Ethernet link establishment, data frame integrity, and protocol handshake performance. This pre-shipment validation ensures that replacement boards integrate into live systems with minimal commissioning effort, reducing plant downtime during maintenance windows.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IS200STCIH6AED support?
The IS200STCIH6AED supports GE’s proprietary IONET Ethernet protocol natively within the Mark VI architecture, and is compatible with Modbus TCP and OPC-UA communication when used with appropriate gateway configurations. It operates on standard 10/100 Mbps industrial Ethernet infrastructure, making it compatible with most plant LAN environments.

Q2: Is the IS200STCIH6AED compatible with third-party SCADA and HMI systems?
Yes. While the board is optimized for GE ToolboxST and Cimplicity HMI environments, its Ethernet interface allows integration with third-party SCADA platforms — including Wonderware, Ignition, and Inductive Automation — via OPC-DA or OPC-UA server configurations. Protocol gateways can be used to bridge to EtherNet/IP or PROFINET networks if required.

Q3: How does ZYPLC ensure network stability and reliability of the IS200STCIH6AED before shipment?
Each unit undergoes a pre-shipment functional test that verifies Ethernet port integrity, backplane communication, and data transmission performance. Boards that fail any communication benchmark are quarantined and not shipped. All units are covered by a 12-month warranty from the date of delivery, with technical support available for integration and commissioning queries.

Q4: Can the IS200STCIH6AED support system expansion without network reconfiguration?
Yes. The board’s standard Ethernet interface allows new devices — including additional I/O packs, remote diagnostic modules, or edge computing nodes — to be added to the network segment without requiring changes to the IS200STCIH6AED’s configuration. This plug-and-expand capability makes it well-suited for phased smart factory upgrade projects where minimizing disruption to existing control infrastructure is a priority.
