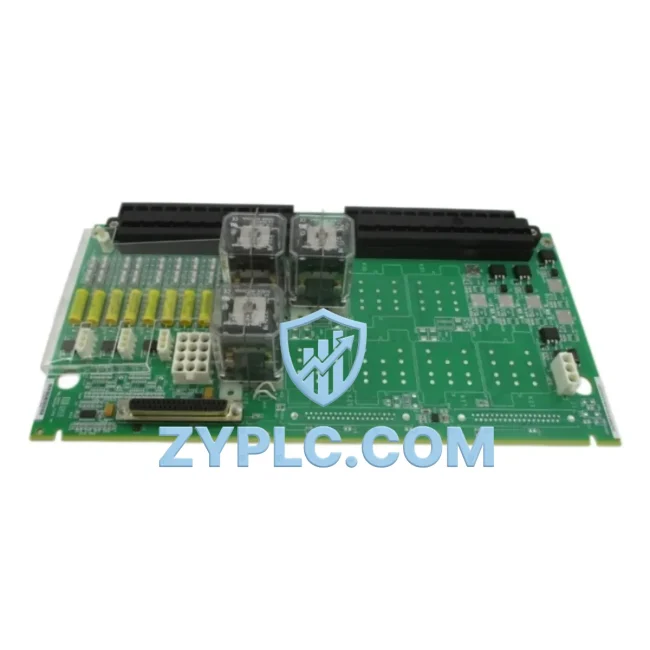

GE IS200TRPGH2B Industrial Network Interface for Mark VI Systems

GE IS200TRPGH2B Industrial Network Interface for Mark VI Systems: Precision Data Links in Smart Factory Turbine Control

The GE IS200TRPGH2B is a high-reliability Trip Terminal Board engineered for the GE Mark VI Turbine Control System, one of the most widely deployed distributed control architectures in gas turbine power generation and heavy industrial automation. Designed to operate at the intersection of field-level protection logic and plant-wide supervisory networks, the IS200TRPGH2B serves as a critical node in the industrial data chain — translating real-time trip signals, safety interlocks, and diagnostic feedback into structured network communications that flow seamlessly from turbine skid to SCADA and beyond.

In modern smart factory and power plant environments, the integrity of the data link between protective relay logic and the control room is non-negotiable. The IS200TRPGH2B fulfills this role by interfacing directly with the Mark VI’s EGD (Ethernet Global Data) protocol over standard Ethernet infrastructure, enabling deterministic, low-latency data exchange between the turbine protection layer and upstream systems including GE ToolboxST configuration platforms, HMI workstations, and plant-level SCADA servers. This architecture eliminates the data isolation that has historically plagued legacy turbine control installations, where proprietary serial buses prevented transparent integration with modern OPC-UA or Modbus TCP supervisory layers.

Network Communication Table

Connected Automation Data Flow

The IS200TRPGH2B sits at the heart of a layered industrial communication architecture. At the field level, turbine-mounted sensors — including exhaust thermocouples, vibration probes, and flame detectors — feed analog and digital signals into the Mark VI’s I/O terminal boards. These signals are conditioned and processed by the GE IS200VCMIH2C VME Communication Module, which aggregates data from multiple I/O boards and routes it across the Mark VI’s redundant IONet Ethernet backbone.

The IS200TRPGH2B receives trip logic commands from the GE IS200TPROH1B Trip Protection Output Board and coordinates with the IS200TREGH1B Turbine Regulation Board to enforce protective shutdown sequences when process parameters exceed safe operating thresholds. This inter-board communication occurs over the Mark VI’s internal backplane at deterministic scan rates, ensuring that trip response times remain within the millisecond range required for turbine protection applications.

At the network layer, EGD packets carrying real-time turbine health data — shaft speed, bearing temperatures, compressor discharge pressure, and fuel valve positions — are broadcast from the Mark VI controller to plant Ethernet segments. GE iFIX SCADA and Proficy HMI workstations subscribe to these EGD data exchanges, rendering live process graphics and trend displays for operators in the control room. Simultaneously, the IS200TRPGH2B‘s diagnostic registers are polled by GE ToolboxST engineering workstations, enabling maintenance engineers to perform remote fault diagnostics, review trip event logs, and validate protection setpoints without interrupting turbine operation.

For plants integrating GE Mark VI systems with third-party DCS platforms or MES layers, protocol gateway devices such as the Moxa MGate MB3480 or Red Lion DA30D can bridge EGD data to Modbus TCP or OPC-UA, extending the IS200TRPGH2B’s data reach to enterprise historians, energy management systems, and cloud-based analytics platforms. This multi-layer connectivity transforms the IS200TRPGH2B from a standalone protection board into a fully networked node within the plant’s Industrial IoT architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in gas turbine and power generation facilities is the fragmentation of control data across incompatible systems. Legacy Mark V and early Mark VI installations often relied on proprietary serial communication buses — ARCNET and RS-485 — that could not be directly integrated with modern plant Ethernet networks. This created data silos where turbine protection events, trip histories, and performance trends were locked inside the turbine control cabinet, invisible to plant-level SCADA, ERP, or predictive maintenance platforms.

The GE IS200TRPGH2B, operating within the Mark VI’s EGD-over-Ethernet framework, directly addresses this isolation problem. By publishing trip status, protection relay states, and diagnostic codes as structured Ethernet data packets, the IS200TRPGH2B makes turbine protection data available to any network-connected system capable of consuming EGD or OPC-DA/UA data. This enables plant operators to achieve full production line transparency — correlating turbine trip events with upstream fuel supply conditions, downstream generator load profiles, and plant-wide energy consumption metrics in a single integrated view.

Remote monitoring and diagnostics are equally transformed. Rather than dispatching field technicians to physically inspect trip terminal boards after a protective shutdown, maintenance teams can remotely access IS200TRPGH2B diagnostic registers via ToolboxST over the plant LAN, reviewing trip cause codes, contact input states, and relay output histories from the engineering office or even from off-site locations via secure VPN. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep turbines online longer.

System expansion is also simplified. As plant capacity grows or turbine fleets are upgraded, additional Mark VI controllers and IS200TRPGH2B boards can be integrated into the existing IONet Ethernet infrastructure without requiring new communication wiring or protocol converters. The EGD architecture’s peer-to-peer data exchange model scales horizontally, supporting multi-unit power plants where dozens of turbine controllers share a common plant network and report to a centralized SCADA platform.

Every GE IS200TRPGH2B unit supplied by ZYPLC is fully tested prior to shipment, with functional verification of all trip relay outputs, contact inputs, and Ethernet communication ports. In-stock inventory ensures rapid dispatch to support both planned maintenance outages and emergency replacement scenarios. All units are covered by a 12-month warranty, providing assurance of quality and long-term operational reliability.

Industrial Connectivity FAQ

Q1: What communication protocol does the GE IS200TRPGH2B use, and is it compatible with standard plant Ethernet networks?
The IS200TRPGH2B operates using GE’s EGD (Ethernet Global Data) protocol, which runs over standard 10/100 Mbps Ethernet infrastructure. It is fully compatible with the Mark VI IONet Ethernet backbone and can be integrated into plant LAN environments. For connectivity with non-GE systems, protocol gateways supporting OPC-DA/UA or Modbus TCP can be used to bridge EGD data to third-party SCADA or DCS platforms.

Q2: How does the IS200TRPGH2B ensure low-latency trip response in time-critical turbine protection scenarios?
The IS200TRPGH2B communicates with other Mark VI boards via the controller’s internal backplane at deterministic scan rates, ensuring trip signal processing and relay actuation occur within milliseconds of a protective threshold being exceeded. The EGD protocol’s producer-consumer model further minimizes network latency by broadcasting data at fixed intervals without requiring polling handshakes, maintaining consistent response times even under high network load conditions.

Q3: Can the IS200TRPGH2B be integrated into an existing Mark VI system alongside other IS200-series boards without network reconfiguration?
Yes. The IS200TRPGH2B is designed for seamless integration within the Mark VI hardware architecture. It communicates with companion boards such as the IS200TPROH1B and IS200TREGH1B via the standard Mark VI backplane and IONet Ethernet interfaces. No additional network infrastructure is required — the board is configured using GE ToolboxST and adopts the existing EGD exchange definitions of the Mark VI controller.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the IS200TRPGH2B?
All IS200TRPGH2B units supplied by ZYPLC undergo comprehensive functional testing prior to shipment, including verification of trip relay outputs, contact input states, Ethernet port communication, and backplane interface integrity. Each unit is covered by a 12-month warranty from the date of shipment. In-stock availability supports rapid delivery for both scheduled maintenance and emergency replacement requirements. For pricing and availability, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
