GE IS200VTCCH1CBD Thermocouple Processor Board for Mark VI Systems

GE IS200VTCCH1CBD: Industrial Data Link for Smart Factory Thermocouple Networks

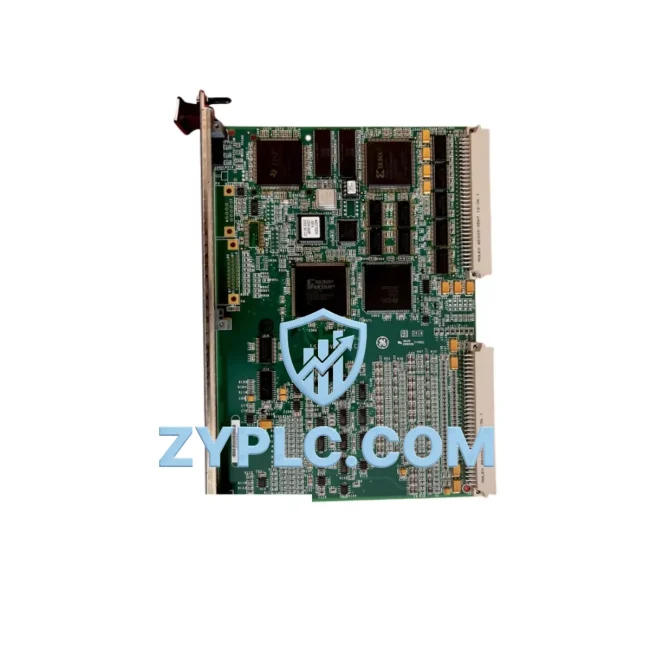

The GE IS200VTCCH1CBD is a high-precision Thermocouple Processor Board engineered for GE Mark VI turbine control systems. Designed to serve as a critical industrial network interface node, this module bridges the gap between field-level thermocouple sensors and upper-layer control, SCADA, and HMI platforms. In modern smart factory environments where real-time thermal data drives turbine safety, efficiency, and predictive maintenance decisions, the IS200VTCCH1CBD delivers the signal integrity, protocol compatibility, and network stability that industrial automation demands.

As industrial sites evolve toward fully connected architectures, the IS200VTCCH1CBD plays a foundational role in the data acquisition chain. From the moment a thermocouple sensor detects a temperature deviation at a turbine bearing or combustion zone, the IS200VTCCH1CBD captures, conditions, and transmits that signal through the Mark VI backplane to the system’s communication infrastructure. This enables seamless data flow from field instruments to the plant’s distributed control system (DCS), SCADA servers, and remote monitoring dashboards — all with sub-millisecond response times critical to turbine protection logic.

Network Communication Table

Connected Automation Data Flow

In a fully integrated turbine control architecture, the IS200VTCCH1CBD operates as the thermal sensing backbone of the Mark VI I/O subsystem. The data flow begins at the thermocouple junction — typically embedded in turbine exhaust stacks, combustion liners, or bearing housings — where temperature signals are routed through terminal boards such as the GE IS200TBCIH1C or IS200TBCCH1C into the IS200VTCCH1CBD processor. Here, raw millivolt signals are digitized, cold-junction compensated, and validated before being passed across the Mark VI backplane.

From the backplane, processed temperature data travels through the GE UCVEH Mark VI Controller — the system’s central processing unit — which executes turbine protection algorithms, load control logic, and alarm management in real time. The controller communicates upstream via IONet, GE’s proprietary Ethernet-based I/O network, connecting to redundant GE Mark VI HMI workstations running Cimplicity or ToolboxST software. Operators at the HMI level receive live thermocouple readings, trend data, and alarm notifications derived directly from IS200VTCCH1CBD outputs.

For plants integrating third-party SCADA platforms such as Wonderware System Platform or OSIsoft PI, the Mark VI system uses protocol gateway modules — including the GE IS200UCVEH1A or external Modbus/OPC-UA gateways — to translate IONet data into standard industrial protocols. This enables the IS200VTCCH1CBD’s thermocouple data to populate historian databases, feed predictive analytics engines, and trigger remote alarm notifications across enterprise networks.

In combined cycle power plants, the IS200VTCCH1CBD works alongside remote I/O modules such as the GE IS200BIICH1A (Binary Input Board) and IS200AAIAH1A (Analog Input Board) to provide a comprehensive picture of turbine health. Variable frequency drives (VFDs) controlling auxiliary equipment — cooling fans, fuel pumps, and compressors — receive setpoint commands derived from the thermal data processed by the IS200VTCCH1CBD, closing the loop between temperature monitoring and mechanical control. Edge gateway devices further aggregate this data for cloud-based remote diagnostics and fleet-wide performance benchmarking.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power generation and industrial automation facilities is data isolation — the inability to share real-time process data across different control systems, protocols, and organizational layers. The GE IS200VTCCH1CBD directly addresses this challenge within the Mark VI ecosystem by providing a standardized, high-fidelity thermocouple data stream that can be consumed by multiple system layers simultaneously.

Protocol Unification: Many industrial sites operate a mix of legacy Modbus RTU devices, modern OPC-UA clients, and proprietary DCS platforms. The IS200VTCCH1CBD, integrated within the Mark VI architecture, supports protocol translation through gateway modules, allowing thermocouple data to be published to Modbus registers, OPC-DA/UA servers, and DNP3 endpoints without signal degradation or latency penalties.

Eliminating Data Silos: By feeding validated temperature data directly into the Mark VI controller’s shared memory space, the IS200VTCCH1CBD ensures that SCADA systems, HMI displays, historian servers, and alarm management platforms all operate from a single source of truth. This eliminates the discrepancies that arise when multiple systems independently poll field instruments.

Remote Monitoring and Diagnostics: The IS200VTCCH1CBD supports remote diagnostics through the Mark VI’s built-in self-test and fault reporting capabilities. Maintenance engineers can interrogate module health, channel status, and calibration drift remotely via ToolboxST, reducing the need for on-site inspections and enabling predictive maintenance scheduling.

Production Line Transparency: In multi-unit power plants or industrial campuses, the IS200VTCCH1CBD’s data contributes to plant-wide thermal performance dashboards. Operations teams gain visibility into temperature trends across all turbine units simultaneously, enabling proactive load balancing, early fault detection, and optimized maintenance windows.

System Scalability: The IS200 series architecture supports modular expansion. As plant capacity grows or new turbine units are commissioned, additional IS200VTCCH1CBD boards can be integrated into the Mark VI rack without disrupting existing I/O configurations, providing a scalable path for industrial network expansion.

Every GE IS200VTCCH1CBD unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel thermocouple input verification, communication bus integrity checks, and firmware version confirmation. Units are shipped with full documentation and are backed by a 12-Month Warranty, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IS200VTCCH1CBD support in a Mark VI system?
The IS200VTCCH1CBD communicates natively over the GE Mark VI internal I/O bus and IONet Ethernet backbone. For integration with third-party SCADA or DCS platforms, the Mark VI system supports Modbus RTU/TCP, OPC-DA/UA, and DNP3 through compatible gateway modules. This ensures the thermocouple data processed by the IS200VTCCH1CBD can be consumed by virtually any industrial automation platform without protocol barriers.

Q2: How does the IS200VTCCH1CBD ensure network stability in high-vibration turbine environments?
The IS200VTCCH1CBD is designed to GE’s industrial-grade specifications for turbine control environments, including resistance to electrical noise, vibration, and thermal cycling. The Mark VI system’s redundant I/O architecture means that if a single IS200VTCCH1CBD channel experiences a fault, the system can flag the anomaly and continue operating on redundant inputs, maintaining network stability and preventing unplanned shutdowns.

Q3: Can the IS200VTCCH1CBD be integrated into a SCADA or HMI system for remote monitoring?
Yes. The IS200VTCCH1CBD’s output data is accessible through the Mark VI controller’s IONet interface, which connects to GE’s Cimplicity HMI, ToolboxST engineering workstation, and third-party SCADA platforms via OPC-UA or Modbus gateways. Remote monitoring dashboards can display real-time thermocouple readings, historical trends, and alarm states derived from IS200VTCCH1CBD data, enabling full remote diagnostics capability.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IS200VTCCH1CBD?
All IS200VTCCH1CBD units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a comprehensive pre-shipment test protocol including thermocouple channel verification, backplane communication checks, and visual inspection. Units are packaged in anti-static, shock-resistant materials and shipped with full traceability documentation to ensure safe arrival and immediate deployment readiness.
