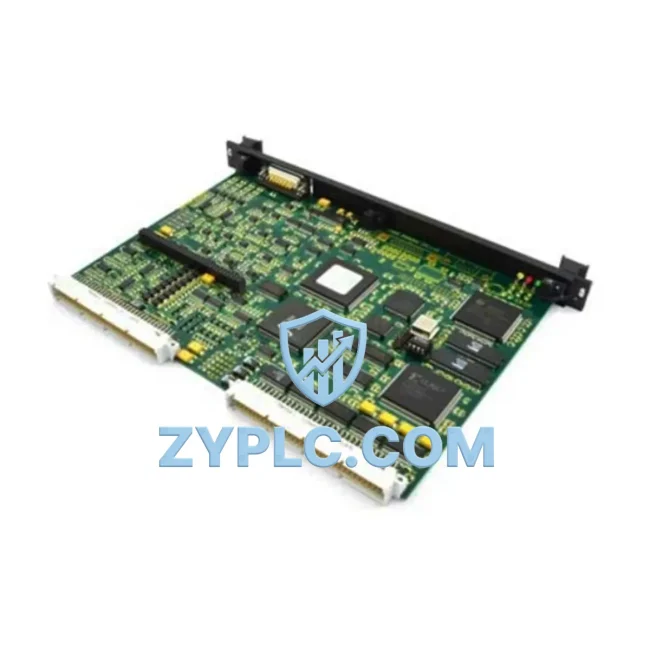

GE IS200VTURH1BAC Turbine Card for Mark VI

GE IS200VTURH1BAC Turbine Card for Mark VI Automation

The GE IS200VTURH1BAC is a high-performance turbine protection input card engineered for the GE Mark VI Speedtronic turbine control platform. Designed to operate at the intersection of precision measurement and real-time control execution, this card plays a critical role in reducing unnecessary energy consumption across gas turbine and steam turbine installations. By delivering accurate, low-latency turbine speed and protection signals to the Mark VI controller, the IS200VTURH1BAC enables tighter control loops, fewer emergency shutdowns, and more predictable production line throughput — all of which translate directly into measurable operational stability and improved equipment utilization.

In modern industrial maintenance planning strategies, the quality of turbine protection signaling is inseparable from overall plant efficiency. When protection cards operate with degraded accuracy or introduce signal delays, the Mark VI system compensates with conservative operating margins — effectively throttling turbine output and increasing specific fuel consumption. The IS200VTURH1BAC eliminates this inefficiency by maintaining signal integrity across its full operating temperature range, allowing the turbine to run closer to its optimal design point without compromising safety.

Product Specification Table

System Compatibility and Application

The IS200VTURH1BAC does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-architected Mark VI control ecosystem. At the controller level, the IS200VCMIH2C VME Controller Module processes the protection signals delivered by the VTURH card and executes the turbine sequencing logic that governs start-up ramp rates, load shedding, and shutdown sequences. Efficient sequencing directly reduces fuel burn during transient states, which are historically the highest-waste phases of turbine operation.

On the I/O side, the IS200VSVOH1B Servo Output Card works in tandem with the VTURH protection inputs to modulate fuel valve positioning with high precision. When protection thresholds are accurately monitored by the IS200VTURH1BAC, the servo output card can operate with finer control authority — reducing the hunting and overcorrection that wastes energy and accelerates actuator wear. Similarly, the IS200VTCCH1B Thermocouple Input Card feeds exhaust temperature data into the same control loop, enabling the Mark VI to optimize combustion efficiency in real time based on actual thermal conditions rather than conservative fixed setpoints.

For power quality monitoring upstream of the turbine control panel, the IS200EPCTG1A Excitation Protection Card provides generator excitation protection that complements the turbine-side protection managed by the IS200VTURH1BAC. Together, these cards form a closed protection architecture that prevents both under-excitation and over-speed events — two of the most energy-wasteful and mechanically damaging failure modes in rotating machinery.

Communication integrity across the control system is maintained by the IS200VCOCH1BAA VME Communication Card, which carries IONet traffic between the VTURH card, the controller, and the HMI layer. Reliable, low-latency communication ensures that protection events are acted upon within the required response window, preventing the energy losses associated with delayed trip responses or missed control updates. At the operator interface level, the GE Cimplicity HMI platform visualizes turbine performance trends, protection status, and energy consumption KPIs — giving plant engineers the data they need to identify inefficiencies and schedule predictive maintenance before they escalate into unplanned outages.

For plants running redundant control architectures, the IS200VTURH1BAC is typically deployed in dual-redundant configurations alongside the IS200VTURH1BAB variant, ensuring that protection coverage is maintained even during card-level maintenance windows — eliminating the forced derates and production losses that single-point protection architectures impose. The IS200VAARH1BAA Analog Input Card rounds out the condition monitoring layer by capturing process analog signals — pressure, flow, and vibration — that feed into the Mark VI’s condition monitoring algorithms and support predictive maintenance scheduling.

Maintenance and Replacement Notes

In combined-cycle power plants and industrial cogeneration facilities, unplanned turbine trips are among the most costly energy events a plant can experience. Each trip not only interrupts power generation but also requires a full cold or warm restart sequence — consuming significant fuel during the acceleration phase before the turbine returns to synchronous speed. The IS200VTURH1BAC directly reduces trip frequency by providing stable, noise-immune protection signal inputs that distinguish genuine fault conditions from transient electrical noise, preventing nuisance trips that waste fuel and reduce equipment availability.

Beyond trip prevention, the card contributes to production line rhythm optimization by enabling the Mark VI to execute smoother load ramp sequences. When protection inputs are reliable, the controller’s load management algorithms can apply more aggressive — yet safe — ramp rates during startup, reducing the time the turbine spends in low-efficiency partial-load operation. For plants with multiple generating units, this translates into faster unit commitment response times and better alignment between generation output and grid demand, reducing the need for expensive supplemental generation or grid purchases during peak demand periods.

Maintenance cost reduction is another measurable benefit. Because the IS200VTURH1BAC is tested prior to shipment and backed by a 12-month warranty, replacement planning is straightforward and predictable. Plants can maintain a single spare in inventory — sourced from verified stock — and execute card swaps during scheduled maintenance windows rather than emergency procurement scenarios. This eliminates the premium costs and extended downtime associated with emergency sourcing, and supports a lean spare parts strategy that reduces carrying costs without increasing operational risk.

From an energy data perspective, the accurate protection signals provided by the IS200VTURH1BAC feed directly into the Mark VI’s onboard diagnostics and event logging systems. This data trail supports post-event energy audits, regulatory compliance reporting, and continuous improvement initiatives — giving energy managers the granular operational data they need to identify and eliminate chronic inefficiencies in turbine operation.

Product Sourcing FAQ

Q1: How does the IS200VTURH1BAC contribute to measurable operational stability in turbine operations?
By providing accurate, stable turbine speed and protection signals to the Mark VI controller, the IS200VTURH1BAC enables tighter control loop execution, reduces nuisance trips, and allows the turbine to operate closer to its optimal efficiency point. Fewer unplanned trips mean fewer energy-intensive restart sequences, and more precise speed control reduces fuel overconsumption during steady-state operation.

Q2: Is the IS200VTURH1BAC compatible with both Mark VI and Mark VIe control systems?
The IS200VTURH1BAC is designed for the GE Mark VI Speedtronic platform. Compatibility with Mark VIe systems should be verified against the specific rack and I/O configuration of your installation. Our technical team can assist with cross-reference verification prior to order placement to ensure correct fit within your existing control architecture.

Q3: What is the recommended replacement and testing process for this card?
All IS200VTURH1BAC units are functionally tested prior to shipment to verify signal integrity and protection response performance. Upon receipt, the card should be installed during a planned maintenance window with the turbine in a safe shutdown state. Post-installation, a loop check against the Mark VI I/O configuration should be performed to confirm correct channel mapping and protection threshold response before returning the unit to service.

Q4: What does the 12-month warranty cover, and what is the support process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, contact our support team with the unit serial number and a description of the observed fault. Replacement units are dispatched from verified in-stock inventory to minimize your downtime exposure. Extended warranty and spare parts stocking programs are available for plants with high-availability requirements.
