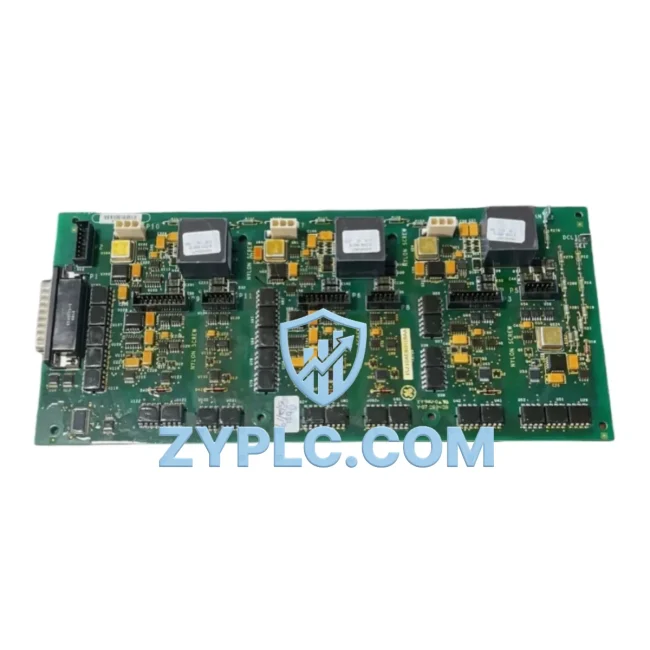

GE IS210BAPAH1A Bus Adapter for Mark VIe

GE IS210BAPAH1A Bus Adapter for Mark VIe: Control System Integration and Upstream-Downstream Coordination

The GE IS210BAPAH1A is a Bus Adapter Module engineered specifically for deployment within the GE Mark VIe Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module occupies a critical position within the layered automation hierarchy — bridging the I/O pack layer with the VME-based controller backplane and enabling deterministic, high-integrity signal routing across the full control system. Understanding its role requires examining how it interacts with adjacent layers: the control layer, I/O layer, network layer, power layer, HMI layer, and actuator/execution layer.

In modern turbine control and process automation environments, the IS210BAPAH1A serves as the physical and logical interface between field-mounted I/O packs and the Mark VIe controller rack. It ensures that analog and digital signals from sensors, transmitters, and actuators are correctly routed to the appropriate controller channels, maintaining signal integrity and system synchronization. This system integration capability is what distinguishes the IS210BAPAH1A from generic bus interface components — it is purpose-built for the Mark VIe platform’s communication protocol and backplane architecture.

Product Specification Table

System Compatibility Notes

The IS210BAPAH1A does not operate in isolation. Its value is realized only when it is correctly integrated within a complete Mark VIe control system architecture. At the controller layer, the IS210BAPAH1A interfaces directly with the IS215UCVEH2A or IS215UCVEH2B Mark VIe controller modules, which serve as the central processing units managing all control logic, sequence execution, and alarm management. The bus adapter ensures that I/O data is delivered to these controllers with the timing precision required for closed-loop control.

At the power layer, the Mark VIe system relies on dedicated power supply modules such as the IS200EPSMG1A power supply module to deliver regulated 24 VDC to the backplane and all connected modules including the IS210BAPAH1A. Stable power delivery is essential for maintaining bus communication integrity, particularly in TMR redundant configurations where three independent power paths must remain synchronized.

The I/O layer is where the IS210BAPAH1A’s role becomes most visible. It provides the physical connection point for I/O packs such as the IS215AEPAG1A analog input pack and the IS215DTURH1A digital I/O pack, which collect field signals from sensors, flow transmitters, pressure transducers, and limit switches. The bus adapter translates these signals into the IONet protocol format required by the Mark VIe controller, ensuring lossless data transfer across the I/O network.

For network communication beyond the local controller rack, the Mark VIe system employs communication gateway modules such as the IS215UCVEH2A with integrated Ethernet ports, or dedicated Modbus/PROFIBUS gateway cards, enabling integration with plant-level SCADA systems, historian servers, and DCS operator stations. The IS210BAPAH1A supports this architecture by maintaining a clean, low-latency I/O data path that feeds the network communication layer without introducing bottlenecks.

At the HMI layer, operator workstations running GE’s ToolboxST configuration software communicate with the Mark VIe controller via the Unit Data Highway (UDH) network. The IS210BAPAH1A’s role here is indirect but critical — accurate I/O data routing ensures that HMI displays reflect real-time process conditions without lag or data corruption. Paired with terminal board modules such as the IS200TBCIH1C or IS200TBAIH1C, the bus adapter completes the signal chain from field device to operator display.

In redundant architectures, the IS210BAPAH1A supports TMR configurations where three independent controller modules — each with its own bus adapter — vote on I/O data to detect and isolate faults. This redundancy design, combined with hot-swap capability on supported Mark VIe racks, ensures that maintenance activities such as module replacement can be performed without process shutdown, significantly reducing planned downtime and improving overall system availability.

Industrial Application Notes

Power Generation & Turbine Control: The IS210BAPAH1A is most commonly deployed in gas turbine, steam turbine, and combined-cycle power plant control systems. In these environments, the Mark VIe DCS manages fuel control valves, inlet guide vanes, exhaust temperature arrays, and vibration monitoring systems. The bus adapter ensures that the high-density I/O signals from these critical measurement points are reliably delivered to the turbine controller, supporting both normal operation and protective trip logic.

Oil & Gas / Petrochemical Processing: In upstream and downstream oil and gas facilities, the Mark VIe platform is used for compressor control, pipeline pressure regulation, and emergency shutdown systems. The IS210BAPAH1A’s support for TMR redundancy makes it particularly well-suited for Safety Instrumented System (SIS) applications where IEC 61511 compliance requires demonstrated fault tolerance at the I/O interface level.

Water Treatment & Utilities: Municipal water treatment plants and industrial utility systems use the Mark VIe architecture for pump station control, chemical dosing systems, and filtration process management. The IS210BAPAH1A enables the integration of distributed I/O packs across geographically separated pump stations, with all data consolidated at a central controller rack for unified process management.

Mining & Metals Processing: In mining conveyor systems, crusher control, and smelting process automation, the IS210BAPAH1A provides the robust I/O interface required for high-vibration, high-temperature industrial environments. Its compatibility with the Mark VIe’s extended temperature I/O packs allows deployment in harsh plant conditions without compromising signal integrity.

Packaging & Discrete Manufacturing: For high-speed packaging lines and discrete manufacturing cells integrated with Mark VIe-based process control systems, the IS210BAPAH1A enables seamless coordination between the process control layer and machine-level I/O, supporting both analog process signals and high-speed digital I/O for position feedback and actuator control.

Product Compatibility FAQ

Q1: Is the IS210BAPAH1A compatible with both simplex and TMR Mark VIe configurations?
Yes. The IS210BAPAH1A is designed to operate in both simplex (single controller) and TMR (Triple Modular Redundancy) Mark VIe architectures. In TMR configurations, three IS210BAPAH1A modules are installed in parallel — one per controller module — and the Mark VIe system’s voting logic manages fault detection and isolation automatically. No additional configuration is required at the bus adapter level; compatibility is determined by the controller module type and rack configuration selected during system design.

Q2: Can the IS210BAPAH1A be replaced during live system operation without a full shutdown?
In Mark VIe TMR configurations, the IS210BAPAH1A supports hot-swap replacement on racks designed for online maintenance. The remaining two controller channels continue to manage I/O data during the replacement procedure, maintaining process control continuity. For simplex configurations, a controlled process hold or shutdown is recommended before module replacement. All replacement units supplied by ZYPLC are tested and verified for functional compatibility prior to shipment, and are covered under a 12-Month Warranty from the date of delivery.

Q3: What commissioning steps are required when installing a replacement IS210BAPAH1A?
Installation of a replacement IS210BAPAH1A follows the standard Mark VIe module replacement procedure: power down the affected controller channel (in simplex) or isolate the target TMR leg, seat the module firmly in the backplane slot, restore power, and verify IONet communication status via ToolboxST diagnostics. No firmware flashing is required for standard replacement units. ZYPLC recommends verifying I/O pack communication status and performing a full I/O scan after installation to confirm signal integrity across all connected channels before returning the system to automatic control mode.
