GE IS215WETAH1A Industrial Network Interface for Mark VI Systems

GE IS215WETAH1A Industrial Network Interface for Mark VI Systems: Precision Data Link for Smart Factory Turbine Control

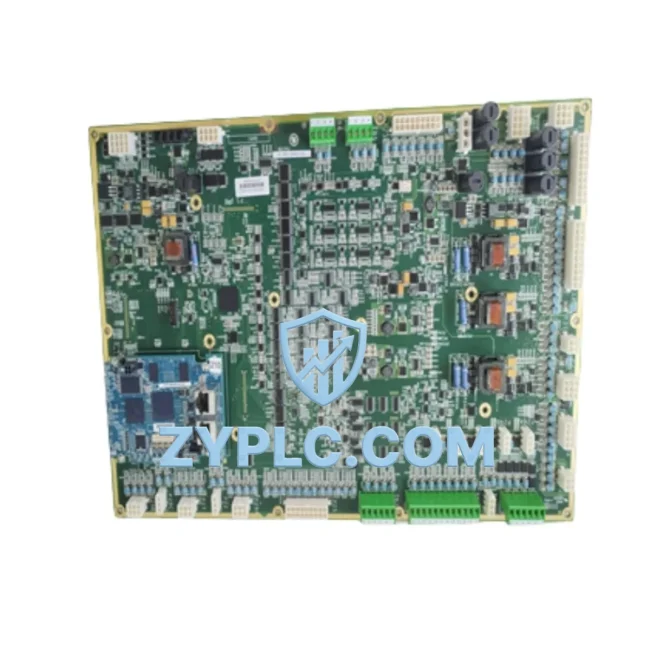

The GE IS215WETAH1A Exciter Terminal Board is a mission-critical interface module engineered for GE’s Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial environments. Designed to bridge the exciter subsystem with the broader Mark VI control network, the IS215WETAH1A plays a pivotal role in the real-time data chain that connects field-level excitation signals to supervisory control layers, enabling seamless integration across SCADA platforms, HMI workstations, and enterprise-level monitoring systems.

In modern smart factory and power plant environments, the integrity of the exciter control loop directly impacts turbine stability, grid synchronization, and overall plant availability. The IS215WETAH1A serves as the hardwired communication backbone between the exciter hardware and the Mark VI VCMI (VME Communication Module Interface) and VTUR (Turbine Control Module), ensuring that voltage regulation signals, fault diagnostics, and real-time excitation data are transmitted with minimal latency across the control network. This board supports the GE proprietary IONet communication protocol — a deterministic, high-speed industrial Ethernet variant optimized for turbine control — while maintaining compatibility with the broader Mark VI I/O network architecture.

Network Communication Table

Connected Automation Data Flow

Understanding the IS215WETAH1A’s role requires tracing the full industrial data flow from the exciter field device to the plant’s supervisory systems. At the field level, the exciter generates analog voltage and current signals that are wired directly into the IS215WETAH1A terminal board. These signals are conditioned and passed through the Mark VI VME backplane to the GE IS215VCMIH2A VCMI Communication Module, which acts as the primary network gateway between the I/O boards and the Mark VI controller processors.

From the VCMI, processed excitation data travels over the GE IONet industrial Ethernet network to the IS215VTURH2A Turbine Control Module (VTUR), where real-time voltage regulation algorithms execute and generate control outputs back to the exciter. Simultaneously, the IS215VSVO Servo Control Module coordinates with the VTUR to manage turbine speed and load sharing, with all inter-module communication occurring over the redundant IONet backbone at deterministic cycle times typically under 10 milliseconds.

At the supervisory layer, the Mark VI controller interfaces with plant-wide SCADA systems — including GE Cimplicity HMI and third-party platforms such as Wonderware InTouch or Ignition SCADA — via OPC-DA or OPC-UA gateway modules. Operators at the HMI workstation receive live excitation voltage, reactive power output, and AVR (Automatic Voltage Regulator) status data sourced directly from the IS215WETAH1A signal chain. Remote diagnostic access is enabled through the GE Mark VI Toolbox engineering software, allowing maintenance engineers to interrogate terminal board I/O values, calibrate signal offsets, and review fault logs without physical access to the control cabinet.

In multi-unit power plants, the IS215WETAH1A-equipped Mark VI systems communicate with plant-level DCS (Distributed Control Systems) such as the GE Mark VIe or third-party systems via Modbus TCP/IP or DNP3 protocol gateways, enabling centralized load dispatch, unit synchronization, and grid frequency response coordination. The IS215WFPAH1A Field Power Distribution Board provides the regulated DC power supply to the IS215WETAH1A and adjacent I/O boards, ensuring stable operation even during grid disturbances. For plants integrating edge computing, the Mark VI controller data stream can be forwarded to industrial edge gateways supporting MQTT or REST API protocols, feeding real-time turbine excitation data into cloud-based asset performance management (APM) platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging power plants and industrial facilities is data isolation — the inability to extract real-time operational data from legacy control systems and make it available to modern SCADA, MES, or cloud analytics platforms. The GE Mark VI architecture, with the IS215WETAH1A at its exciter interface layer, was designed with this challenge in mind, but many installations still face integration barriers due to proprietary protocol boundaries, aging network infrastructure, and the absence of standardized data exchange layers.

The IS215WETAH1A addresses protocol fragmentation by serving as the standardized hardware interface between the analog exciter world and the digital Mark VI IONet domain. When plants need to extend this data further — into Modbus RTU/TCP environments, PROFIBUS DP networks, or modern OPC-UA ecosystems — the Mark VI controller’s built-in protocol gateway capabilities, combined with third-party protocol converters, eliminate the data silos that previously prevented excitation data from reaching plant historians or enterprise ERP systems.

For facilities managing multiple turbine units, the IS215WETAH1A’s role in the Mark VI network enables production line transparency: every excitation event, AVR adjustment, and fault condition is timestamped, logged, and made available for trend analysis. This transforms reactive maintenance into predictive maintenance — maintenance teams can identify degrading exciter performance weeks before a forced outage occurs, dramatically reducing unplanned downtime and maintenance costs.

Remote monitoring is another critical capability enabled by the IS215WETAH1A data chain. With proper network configuration, plant operators can access live excitation data from remote operations centers, enabling 24/7 monitoring of geographically distributed generation assets without requiring on-site personnel for routine surveillance. Alarm management systems connected to the Mark VI network can automatically escalate exciter fault conditions to maintenance teams via SMS, email, or SCADA alarm servers, ensuring rapid response to developing faults.

System expansion is equally straightforward within the Mark VI architecture. Additional IS215WETAH1A boards or complementary I/O modules can be added to the VME rack to accommodate exciter system upgrades, additional measurement points, or redundancy requirements — all without disrupting the existing IONet communication topology or requiring controller reprogramming.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IS215WETAH1A support, and is it compatible with third-party SCADA systems?
The IS215WETAH1A operates within the GE Mark VI IONet industrial Ethernet architecture, a proprietary deterministic protocol optimized for turbine control. Integration with third-party SCADA systems (Wonderware, Ignition, Siemens WinCC, etc.) is achieved through the Mark VI controller’s OPC-DA/OPC-UA server or via Modbus TCP/IP and DNP3 protocol gateways. Direct third-party protocol support at the terminal board level is not applicable — the board interfaces exclusively with the Mark VI VME backplane.

Q2: How does the IS215WETAH1A ensure network stability and minimize communication latency in turbine control applications?
The Mark VI IONet network is a deterministic industrial Ethernet system with fixed scan cycle times, typically 10–20 milliseconds for critical control loops. The IS215WETAH1A’s hardwired terminal interface eliminates software-layer latency between the exciter signals and the control network. Redundant IONet network paths (TMR — Triple Modular Redundancy configurations) further ensure that single network failures do not interrupt excitation control or data transmission.

Q3: Can the IS215WETAH1A be integrated into an existing Mark VI system without a full system shutdown?
Board replacement or addition in a Mark VI system typically requires a controlled outage of the affected exciter circuit, though the broader turbine control system may remain operational depending on the redundancy configuration. GE Mark VI Toolbox software supports online configuration download for many parameter changes, but physical I/O board installation requires de-energization of the relevant terminal circuits. ZYPLC recommends consulting your GE Mark VI system documentation and coordinating with your control system engineer before any hardware changes.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the IS215WETAH1A?
All IS215WETAH1A units supplied by ZYPLC undergo pre-shipment functional testing to verify board integrity and communication readiness. Each unit is covered by a 12-month warranty against manufacturing defects and functional failures. Units are shipped via DHL or FedEx Express with full tracking, and our technical support team is available to assist with installation verification and system integration questions. In-stock units are available for same-day or next-day dispatch upon order confirmation.
