GE IS220PPDAH1B Industrial Network Interface for Mark VIe Systems

GE IS220PPDAH1B Industrial Network Interface for Mark VIe Systems: Bridging Field Devices and Smart Factory Data Links

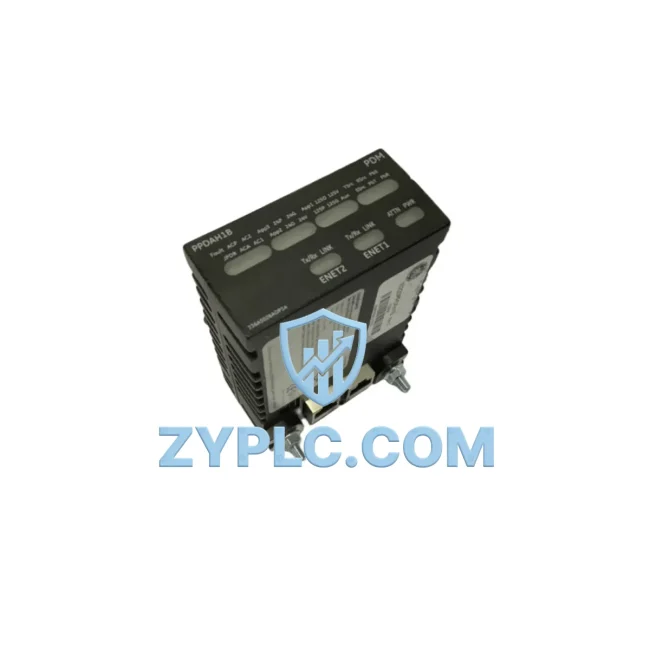

The GE IS220PPDAH1B is a high-performance Proximity Driver Card engineered for the GE Mark VIe turbine control platform, serving as a critical industrial network interface between rotating machinery field sensors and the upper-layer control and monitoring architecture. In modern smart factory and power generation environments, the IS220PPDAH1B functions as the foundational signal acquisition and protocol conversion node — capturing proximity and vibration signals from shaft-mounted sensors, conditioning them into digital data streams, and feeding real-time process values into the Mark VIe controller backplane for immediate supervisory action.

As industrial sites evolve toward fully connected automation architectures, the role of a precision proximity driver card extends far beyond simple signal conditioning. The IS220PPDAH1B integrates seamlessly into the GE Mark VIe distributed control network, enabling continuous data flow from field-level transducers through the controller to SCADA systems, HMI workstations, and enterprise-level historian platforms — eliminating data isolation and delivering the plant-wide transparency that modern operations demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Mark VIe control architecture, the IS220PPDAH1B sits at the very beginning of the industrial data chain. Proximity sensors mounted on turbine shafts — typically Bently Nevada-compatible eddy-current probes — feed raw analog signals into the IS220PPDAH1B card. The card digitizes these signals and transmits structured process data across the GE Mark VIe IONet Ethernet backbone to the IS215VCMIH2C VME Communication Module, which aggregates multi-card data and routes it to the IS215UCVEH2A Unit Controller for real-time turbine protection logic execution.

From the Unit Controller, process values — shaft displacement, vibration amplitude, phase angle — are published over the plant network to GE ToolboxST engineering workstations and Cimplicity HMI operator stations, where operators monitor turbine health in real time. Simultaneously, the data stream is forwarded via OPC-UA or Modbus TCP gateway modules such as the IS215ACLEH1A to plant-level SCADA historians, enabling long-term trend analysis and predictive maintenance scheduling.

For plants running hybrid control architectures, the IS220PPDAH1B data can be bridged through industrial protocol converters to third-party DCS platforms or edge computing gateways. Remote I/O expansion modules like the IS220PRTDH1A RTD Input Card and IS220PTCCH1A Thermocouple Card operate in parallel on the same IONet backbone, providing complementary temperature and process data that — combined with the proximity data from the IS220PPDAH1B — gives the IS215UCVEH2A controller a complete multi-parameter view of turbine operating state.

Variable frequency drives (VFDs) controlling auxiliary equipment such as lube oil pumps and cooling fans also report status data back through the Mark VIe network, and alarm conditions detected by the IS220PPDAH1B — such as high shaft vibration exceeding trip setpoints — can trigger automated drive speed adjustments or emergency shutdowns within milliseconds, demonstrating the card’s central role in the plant’s real-time protection and control loop.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power generation and process plants is data isolation — field devices generating critical machinery health data that never reaches the control room or enterprise systems in a usable form. The GE IS220PPDAH1B directly addresses this problem by providing a standardized, network-integrated proximity signal acquisition path within the Mark VIe architecture.

Plants that previously relied on standalone vibration monitoring panels — disconnected from the main DCS — can integrate the IS220PPDAH1B into the Mark VIe IONet to unify machinery protection data with process control data on a single network. This eliminates the need for separate vibration monitoring systems and the manual data reconciliation they require, reducing both capital cost and operator workload.

Protocol unification is another key benefit. The IS220PPDAH1B’s data, once on the IONet backbone, can be translated to Modbus TCP, OPC-UA, or PROFINET by gateway modules, making it accessible to any SCADA, MES, or cloud analytics platform regardless of the original field-level signal format. This protocol bridging capability is essential for plants pursuing Industry 4.0 digital transformation, where machinery data must flow seamlessly from the sensor to the enterprise dashboard.

Remote diagnostics become practical when proximity data is network-integrated. Maintenance engineers can monitor shaft vibration trends from remote workstations, set predictive alarm thresholds, and schedule maintenance interventions before failures occur — without requiring physical presence at the turbine. Combined with the Mark VIe’s built-in self-diagnostics and the IS220PPDAH1B’s card-level fault reporting, plants achieve a level of system transparency that dramatically reduces unplanned downtime.

System scalability is preserved through the modular Mark VIe architecture. Additional IS220PPDAH1B cards can be added to the IONet backbone as monitoring points expand — covering additional bearing positions, new compressor trains, or balance-of-plant equipment — without requiring changes to the SCADA or HMI configuration beyond tag additions.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IS220PPDAH1B support for SCADA integration?
The IS220PPDAH1B communicates natively over the GE Mark VIe IONet industrial Ethernet backbone. For integration with third-party SCADA systems, data is bridged via OPC-UA or Modbus TCP through Mark VIe gateway modules. This ensures compatibility with major SCADA platforms including GE Cimplicity, Wonderware, and iFIX without requiring custom protocol development.

Q2: How does the IS220PPDAH1B ensure network stability and low-latency data transmission?
The card is designed for deterministic real-time communication within the Mark VIe IONet architecture, which uses a managed industrial Ethernet topology with redundant network paths. Signal acquisition and digitization occur at the card level, minimizing transmission latency. The IONet backbone supports redundant controller configurations, ensuring continuous data flow even during single-point network failures.

Q3: Is the GE IS220PPDAH1B tested before shipment, and what warranty is provided?
Yes. Every IS220PPDAH1B unit supplied by ZYPLC undergoes functional testing prior to shipment to verify signal acquisition performance, communication integrity, and card-level diagnostics. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate global export with full documentation support.

Q4: Can the IS220PPDAH1B be used in system expansion projects alongside other Mark VIe I/O cards?
Absolutely. The IS220PPDAH1B is fully compatible with the Mark VIe modular I/O architecture and can be deployed alongside cards such as the IS220PRTDH1A (RTD input), IS220PTCCH1A (thermocouple input), and IS215ACLEH1A (analog I/O) on the same IONet backbone. This modularity makes it ideal for both greenfield installations and brownfield expansion projects where additional monitoring points need to be added to an existing Mark VIe system.
