GE IS220PTCCH1B Industrial Network Interface for Mark VIe Systems

GE IS220PTCCH1B Industrial Network Interface for Mark VIe Systems: Precision Data Links for Smart Factory Connectivity

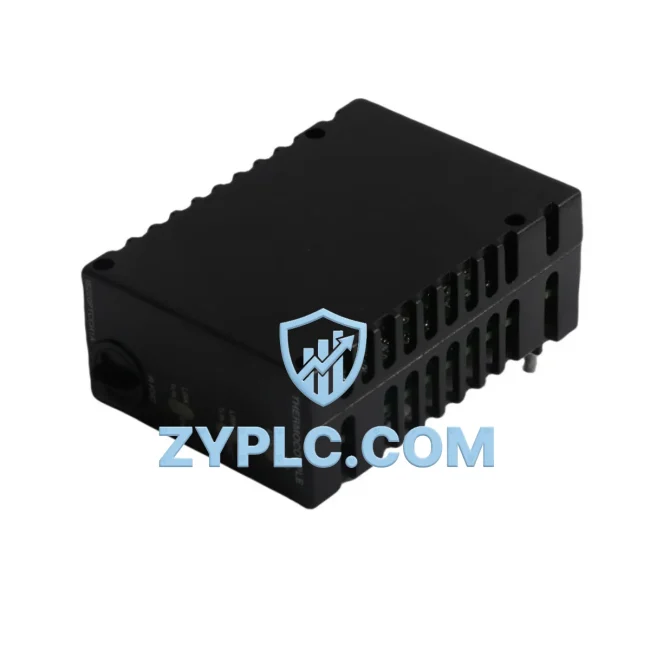

The GE IS220PTCCH1B is a high-precision thermocouple input module engineered for the GE Mark VIe distributed control system platform. Designed as a critical node in the industrial data chain, this module captures analog temperature signals from field-mounted thermocouples and converts them into digital process values that flow seamlessly through the Mark VIe IONet backplane into the plant-wide control and monitoring architecture. In modern smart factory environments — where every millisecond of data latency and every degree of measurement accuracy matters — the IS220PTCCH1B delivers the signal integrity and network reliability that turbine control, power generation, and process automation applications demand.

From the moment a thermocouple generates a millivolt-level signal at the field device, the IS220PTCCH1B conditions, digitizes, and transmits that value across the Mark VIe I/O network to the GE IS215VCMIH2C VME communication interface module, which routes real-time process data to the GE Mark VIe controller (IS420UCSBH3A) for closed-loop control execution. This tightly integrated data path ensures that temperature excursions, process deviations, and alarm conditions are detected and acted upon within the control scan cycle — eliminating the data isolation that plagues legacy analog wiring architectures.

Network Communication Table

Connected Automation Data Flow

The IS220PTCCH1B sits at the front end of a sophisticated industrial data pipeline. In a typical gas turbine or combined-cycle power plant, dozens of thermocouples monitor exhaust temperatures, bearing temperatures, and combustion zone conditions. These sensors connect directly to the IS220PTCCH1B terminal blocks, where the module performs cold-junction compensation and analog-to-digital conversion before placing engineering-unit values onto the GE Mark VIe IONet — the high-speed, deterministic I/O communication backbone of the Mark VIe platform.

Upstream, the GE IS215VCMIH2C communication interface module aggregates data from multiple I/O modules — including the IS220PTCCH1B, the GE IS220PTURH1B RTD input module, and the GE IS220PAICH1B analog input module — and forwards consolidated process data to the Mark VIe controller. The controller executes protection logic, sequencing algorithms, and PID control loops in real time, with scan rates measured in milliseconds. Alongside these I/O modules, the GE IS200TREGH1B terminal board and GE IS200TBCIH1C I/O terminal board provide the complete field-wiring interface, ensuring a tested, end-to-end signal path from sensor to control system.

For plant-wide visibility, the Mark VIe controller communicates via Ethernet/IP or Modbus TCP to the site SCADA server — typically running GE iFIX, GE CIMPLICITY, or third-party platforms such as Wonderware or Ignition. Operators at the HMI workstation see live temperature trends, alarm banners, and historical logs sourced directly from the IS220PTCCH1B measurement chain. Remote diagnostic access is enabled through the GE Toolbox engineering workstation software, which connects to the Mark VIe network to perform module health checks, calibration verification, and firmware diagnostics without interrupting production.

In multi-rack Mark VIe configurations, the IS220PTCCH1B can be deployed across distributed I/O enclosures located close to field devices, reducing thermocouple extension wire runs and improving signal accuracy. These remote I/O racks communicate back to the main controller rack via the IONet fiber or copper backbone, maintaining deterministic data delivery even across large plant footprints. Where legacy PROFIBUS DP or Modbus RTU field devices coexist with the Mark VIe network, protocol gateway modules bridge these older communication standards into the unified IONet data stream — ensuring no field device is left as a data island.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field instruments generate valuable process data that never reaches the control room, historian, or enterprise systems in a usable form. The IS220PTCCH1B directly addresses this problem within the Mark VIe ecosystem.

Protocol Unification: Legacy plants often mix thermocouple transmitters with 4–20 mA outputs, HART-enabled field devices, and direct TC wiring. The IS220PTCCH1B standardizes direct TC inputs onto the Mark VIe IONet protocol, eliminating the need for intermediate signal converters and reducing wiring complexity. For sites requiring integration with Modbus RTU or PROFIBUS DP devices, the Mark VIe platform supports protocol gateway modules that bridge these legacy protocols into the unified IONet data stream — delivering a single, coherent process data view across the entire plant network.

Real-Time Monitoring and Alarm Transparency: With the IS220PTCCH1B feeding live temperature data to the Mark VIe controller, SCADA operators gain millisecond-resolution visibility into thermal conditions across the plant. Alarm setpoints configured in the controller are evaluated every scan cycle, ensuring that over-temperature events trigger protective actions — fuel cutoff, load shedding, or equipment shutdown — before damage occurs. This closed-loop alarm response is only possible when the data chain from thermocouple to controller is fast, reliable, and free of protocol translation delays.

Remote Diagnostics and Predictive Maintenance: The IS220PTCCH1B supports module-level diagnostics accessible through the GE Toolbox software. Maintenance engineers can remotely verify channel status, check for open-circuit thermocouple faults, review calibration data, and assess module health — all without physical access to the I/O rack. This remote diagnostic capability reduces unplanned downtime and supports predictive maintenance programs by identifying degrading sensors before they cause process upsets.

System Scalability: As production capacity expands, additional IS220PTCCH1B modules can be added to existing Mark VIe I/O racks or new remote I/O enclosures without architectural changes to the control system. The modular design of the Mark VIe platform means that scaling from 16 to 160 thermocouple inputs requires only additional I/O modules and terminal boards — not a new controller or communication infrastructure. This makes the IS220PTCCH1B a future-proof investment for plants planning phased capacity expansions or digital transformation initiatives.

Outgoing Inspection and Stock Availability: Every IS220PTCCH1B unit shipped by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, communication integrity, and module identification. Units are sourced from verified supply channels and backed by a 12-month warranty, giving procurement and maintenance teams confidence in both product quality and post-sale support.

Industrial Connectivity FAQ

Q1: What communication protocol does the GE IS220PTCCH1B use, and can it integrate with third-party SCADA systems?
The IS220PTCCH1B communicates over GE’s proprietary IONet protocol within the Mark VIe I/O backplane. Integration with third-party SCADA platforms — including Wonderware, Ignition, and OSIsoft PI — is achieved through the Mark VIe controller’s Ethernet/IP or Modbus TCP gateway functionality. OPC-UA server options are also available through GE’s communication interface modules, enabling standards-based data exchange with any OPC-UA compatible SCADA or MES system.

Q2: What is the typical data latency from thermocouple input to SCADA display?
Within the Mark VIe system, the IS220PTCCH1B updates process values at the controller scan rate, typically 10–40 ms depending on configuration. End-to-end latency from field measurement to SCADA display — including controller processing and Ethernet transmission — is generally under 500 ms for standard configurations, well within the requirements of turbine protection and process monitoring applications.

Q3: Is the IS220PTCCH1B compatible with all Mark VIe I/O rack configurations, including TMR systems?
Yes. The IS220PTCCH1B is designed for the standard Mark VIe I/O module slot and is compatible with both simplex and TMR (Triple Modular Redundant) rack configurations. In TMR systems, three IS220PTCCH1B modules operate in parallel, with the Mark VIe controller performing voted median selection to eliminate the effect of any single module fault — providing the highest level of measurement reliability for critical protection applications.

Q4: What warranty and support does ZYPLC provide for the IS220PTCCH1B?
ZYPLC provides a 12-month warranty on all IS220PTCCH1B units, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing is performed on every unit. Global shipping via DHL and FedEx is available with full export documentation. For technical support, spare parts planning, or volume procurement inquiries, contact our team at plc.sales@zyplc.com or +86 19859288691.
