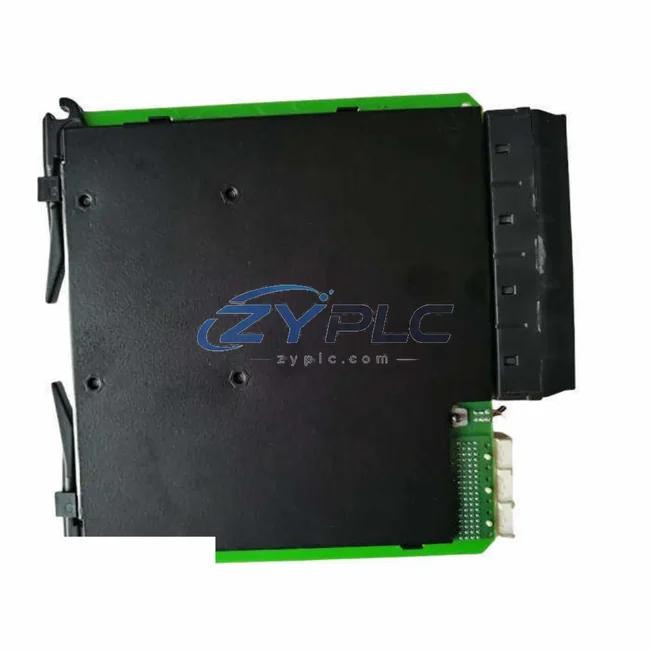

The GE Multilin UR 8FH is a high-performance protection and control relay from the renowned UR Series platform, engineered to deliver precision maintenance planning across demanding industrial environments. Designed for power utilities, manufacturing plants, and process automation facilities, the UR 8FH integrates advanced metering, protection logic, and communication capabilities into a single compact module — reducing panel footprint while maximizing operational efficiency. With its multi-function architecture, this relay eliminates the need for multiple discrete devices, directly lowering both capital expenditure and ongoing energy overhead.

In modern production lines where uptime and energy cost are tightly coupled, the UR 8FH serves as a critical node in the industrial control architecture. Its high-accuracy current and voltage measurement engine continuously monitors load conditions, enabling real-time detection of overcurrent, undervoltage, frequency deviation, and power factor degradation — all of which contribute to hidden unplanned downtime. By responding to these anomalies within milliseconds, the relay prevents cascading failures that would otherwise force unplanned shutdowns and extended recovery cycles.

Product Specification Table

System Compatibility and Application

The UR 8FH is most effective when deployed as part of an integrated industrial automation system. In a typical substation or motor control center (MCC) environment, it works in concert with upstream power monitoring devices such as the GE Multilin 750/760 Feeder Protection Relay, which handles feeder-level overcurrent and earth fault protection, and the GE Multilin 469 Motor Management Relay, which governs motor thermal modeling and energy consumption tracking at the drive level.

On the drive side, pairing the UR 8FH with a GE AF-600 FP Variable Frequency Drive (VFD) creates a closed-loop motor control system where the relay monitors upstream power quality while the VFD adjusts motor speed to match actual load demand — eliminating the fixed-speed unplanned downtime that accounts for 20–30% of excess consumption in pump and fan applications. The relay’s GOOSE messaging capability over IEC 61850 allows it to communicate trip signals directly to the VFD’s digital input, enabling sub-cycle protective response without PLC intervention.

For broader plant-level energy visibility, the UR 8FH integrates seamlessly with GE’s EnerVista UR Setup software and can feed real-time power quality data — including THD, power factor, and demand metrics — into a GE Proficy Historian or third-party SCADA platform via DNP3 or Modbus TCP. This data pipeline supports predictive maintenance workflows: by trending harmonic distortion and load imbalance over time, maintenance teams can identify deteriorating motor windings or failing capacitor banks before they cause unplanned outages.

At the I/O and control layer, the UR 8FH’s configurable digital and analog I/O modules allow direct interfacing with GE PACSystems RX3i PLC racks, enabling coordinated protection and control logic without additional signal conditioning hardware. When combined with a GE RSTi-EP distributed I/O module, the system can extend protection monitoring to remote panel locations across the plant floor, maintaining consistent energy data collection across all production zones.

For facilities running GE Mark VIe turbine control systems or integrating with GE Grid Solutions MiCOM protection relays, the UR 8FH’s IEC 61850 Edition 2 compliance ensures interoperability within mixed-vendor protection schemes, reducing integration engineering costs and enabling unified maintenance planning across the entire electrical distribution hierarchy.

Maintenance and Replacement Notes

In continuous process industries — such as chemical plants, water treatment facilities, and automotive assembly lines — unplanned electrical faults are among the most costly disruptions. A single motor trip caused by an undetected phase imbalance can halt an entire production segment for hours. The GE Multilin UR 8FH addresses this directly through its negative-sequence current detection and thermal overload modeling, which identify developing fault conditions during normal operation rather than after failure has occurred.

By deploying the UR 8FH at critical feeder and motor protection points, plant engineers gain the ability to implement demand-side maintenance planning strategies. The relay’s integrated power metering — capturing kW, kVAR, kVA, and power factor on a per-feeder basis — provides the granular data needed to identify high-consumption assets operating below their efficiency curve. This information directly informs decisions about motor replacement, VFD retrofits, and load scheduling, all of which reduce peak demand charges and improve overall plant energy intensity (kWh per unit of output).

The UR 8FH also supports automatic reclosing and load shedding schemes, which are essential for facilities operating under utility demand response programs. During grid stress events, the relay can automatically shed non-critical loads in a prioritized sequence, protecting critical production equipment while reducing peak demand exposure. This capability alone can deliver measurable reductions in monthly utility bills for large industrial consumers.

From a maintenance cost perspective, the relay’s self-diagnostic routines and event recording (with time-stamped fault data stored in non-volatile memory) eliminate the guesswork from post-fault analysis. Maintenance teams can retrieve detailed fault records — including pre-fault current waveforms and protection element pickup sequences — to determine root cause within minutes rather than hours, minimizing mean time to repair (MTTR) and reducing the labor cost associated with electrical troubleshooting.

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of protection elements, communication ports, and I/O channels. Each UR 8FH is backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to support urgent maintenance and replacement requirements.

Product Sourcing FAQ

Q1: How does the GE Multilin UR 8FH contribute to measurable operational stability in an industrial plant?
The UR 8FH reduces unplanned downtime through two primary mechanisms: first, by detecting and correcting power quality issues (such as phase imbalance, harmonic distortion, and low power factor) that cause motors and transformers to operate inefficiently; second, by enabling demand management schemes — including load shedding and automatic reclosing — that reduce peak demand charges. When integrated with VFDs and SCADA systems, the relay provides the data foundation for continuous maintenance planning programs.

Q2: Is the UR 8FH compatible with existing GE Multilin UR Series installations and third-party protection systems?
Yes. The UR 8FH is built on the standard UR Series hardware platform, making it directly compatible with existing UR chassis, power supply modules, and communication cards. Its support for IEC 61850, DNP3, and Modbus RTU/TCP ensures interoperability with third-party SCADA, DCS, and protection relay systems from other manufacturers, minimizing integration complexity during upgrades or replacements.

Q3: What is the recommended replacement or upgrade path for aging protection relays in an MCC or substation?
For facilities replacing electromechanical or first-generation numerical relays, the UR 8FH offers a direct upgrade path with significantly expanded functionality — including integrated metering, event recording, and digital communications — that eliminates the need for separate transducers and data loggers. ZYPLC can advise on compatible mounting adapters and wiring modifications to simplify the retrofit process.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every GE Multilin UR 8FH supplied by ZYPLC undergoes functional testing that covers protection element operation, communication port verification, digital and analog I/O channel checks, and power supply performance. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize downtime impact on your production operations.
